Patchpanel 1U DELOCK 43394

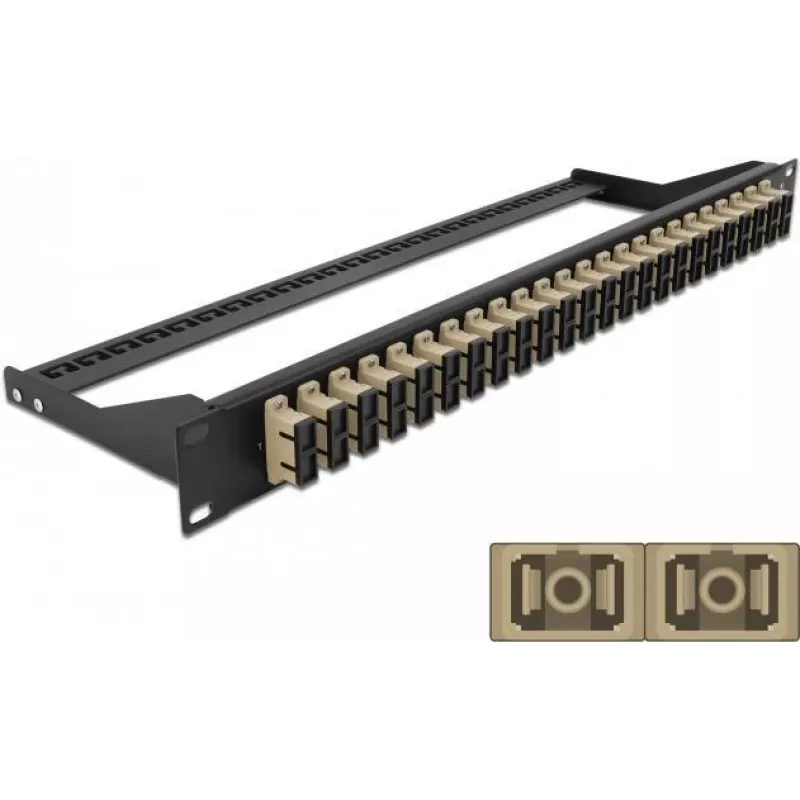

The DeLOCK 43394 patch panel is a 1U 19" rack-mount unit designed to organize fibre network connections with SC connector compatibility. It provides jacks on both the front and rear to enable convenient connection and management of fibre patch cables. The panel is supplied in box packaging and is available in beige or black finish.

Advantages

The unit supports standard 19" rack mounting in a 1U form factor and offers front and rear SC ports for flexible cable routing. Its compact dimensions (482.6 mm × 150 mm × 43.6 mm) allow efficient use of rack space while keeping fibre terminations accessible. Available in two colours, it fits different equipment aesthetics and installation requirements.

Suitable for

• Organising SC-terminated fibre patch cables in server rooms and data centres
• Connecting fibre runs between patch panels and active network equipment
• Use in telecommunications cabinets and rack enclosures

Key specifications

• Manufacturer: DELOCK
• Model: 43394
• Rack size: 19" (1U)
• Connector type: SC (front and rear jacks)
• Dimensions (W × H × D): 482.6 mm × 150 mm × 43.6 mm
• Colours: Beige, Black
• Packaging: Box

How to use

Mount the patch panel into a compatible 19" rack or cabinet at the desired 1U position using appropriate rack screws. Route SC-terminated fibre patch cables to the rear jacks and, if required, connect corresponding front jacks for easy access. Ensure fibre connectors are clean before mating and secure any cable management to avoid strain on the ports.

Recommendations

Regularly inspect and clean SC connector endfaces with suitable fibre cleaning tools, maintain proper bend radius for fibre cables, and secure cables with ties or management panels to prevent stress on the connectors.
