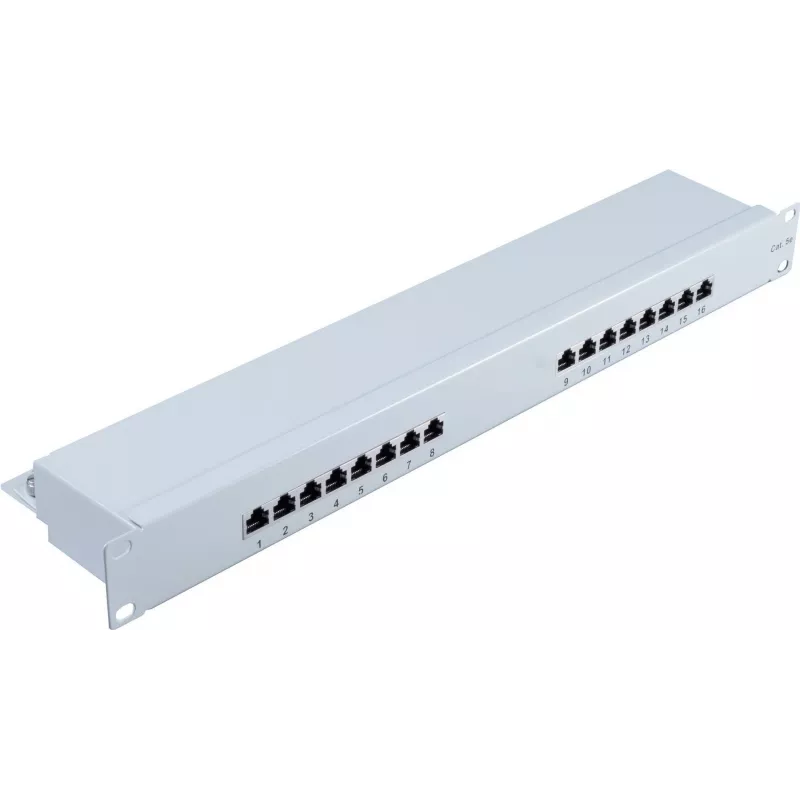

Patchpanel 1U ShiverPeaks BS75061

The ShiverPeaks BS75061 is a 1U patch panel designed for efficient network management in racks and cabinets. It accepts standard RJ-45 keystone jacks and is compatible with Cat5e structured cabling, allowing consolidation of multiple Ethernet runs into a single, organized rack unit. The panel's grey finish provides a neutral appearance suitable for office, server room, or closet installations while supporting tidy cable routing and port identification.

Advantages

This 1U patch panel offers a compact footprint for space-efficient installations and supports straightforward termination with RJ-45 keystone modules compatible with Cat5e performance. Its standardized rack height simplifies integration into 19-inch racks and cabinets, while the front-facing ports make patching and reconfiguration accessible without disturbing cabling behind the panel. The grey color and minimal design contribute to a uniform rack appearance.

Suitable for

• Small and medium office network patching
• Server room cable consolidation and organization
• Telecommunications cabinets and network closets
• Upgrading or expanding Cat5e structured cabling systems

Key specifications

• Form factor: 1U, compatible with 19-inch racks
• Connector type: front-facing RJ-45 keystone compatible ports
• Cabling standard: compatible with Cat5e Ethernet cabling
• Finish: grey panel surface
• Port density: designed to accommodate multiple keystone jacks within a single rack unit

How to use

Install the patch panel into a standard 19-inch rack or cabinet using appropriate mounting screws. Insert RJ-45 keystone jacks into the front ports according to your chosen port configuration, then terminate building or equipment cables on the rear side following Cat5e wiring standards (T568A or T568B). Label ports as needed for easy identification and connect patch cords between the patch panel and active networking equipment to establish network links.

Recommendations

For reliable performance, use Cat5e-rated cables and keystone jacks, maintain proper cable bend radius, and follow consistent wiring standard across the installation. Periodically verify connections and labels to ensure accurate network documentation and ease of maintenance.
