Patchpanel 1U ShiverPeaks BS75062

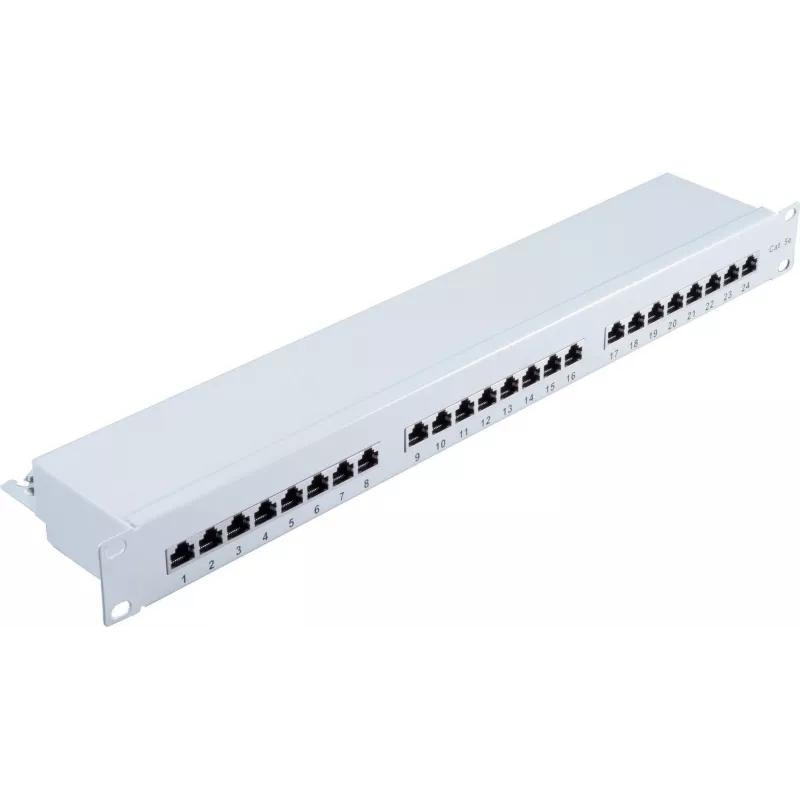

The ShiverPeaks BS75062 Patch Panel 1U is a rack-mountable panel designed to organize and terminate network cabling in standard 19-inch server racks. It provides a compact solution for routing multiple Ethernet connections and is intended for use with Cat5e cabling and RJ-45 modular connectors. The panel's 1U height conserves rack space while enabling neat patching and straightforward cable management in data closets, server rooms, and telecommunications cabinets.

Advantages

This 1U patch panel supports Cat5e performance parameters, enabling reliable high-speed data transmission for typical Ethernet networks. The RJ-45 ports offer standard connectivity for a wide range of network devices and patch cords. Its slim 1U form factor is compatible with standard rack systems and helps maintain an organized cabling layout. The neutral grey finish blends with common rack equipment and helps visually standardize cabling installations.

Suitable for

• Small and medium-sized office networks
• Server rooms and data closets requiring structured cabling
• Network closets in retail or branch locations
• Patch bays for VoIP, CCTV, and Ethernet devices using Cat5e

Key specifications

• Form factor: 1U rack-mount panel for 19-inch racks
• Connector type: RJ-45 modular ports
• Cable compatibility: Cat5e Ethernet cabling
• Color: Grey finish for neutral rack appearance
• Purpose: Termination and organization of Ethernet patch cables

How to use

Mount the patch panel into a compatible 19-inch rack using appropriate rack screws, aligning the panel to occupy a single unit of rack height. Terminate each incoming horizontal cable to the corresponding rear IDC or punch-down point following the T568A or T568B wiring standard used in your installation. Connect patch cords between the front RJ-45 ports and active network equipment such as switches or routers. Label ports as required to maintain clear documentation of connections.

Recommendations

Use Cat5e-rated patch cords and follow consistent wiring standards (T568A or T568B) across the installation. Leave appropriate slack and use cable management accessories to reduce strain on terminations. Verify connections with a cable tester after installation to ensure continuity and correct pairing.
