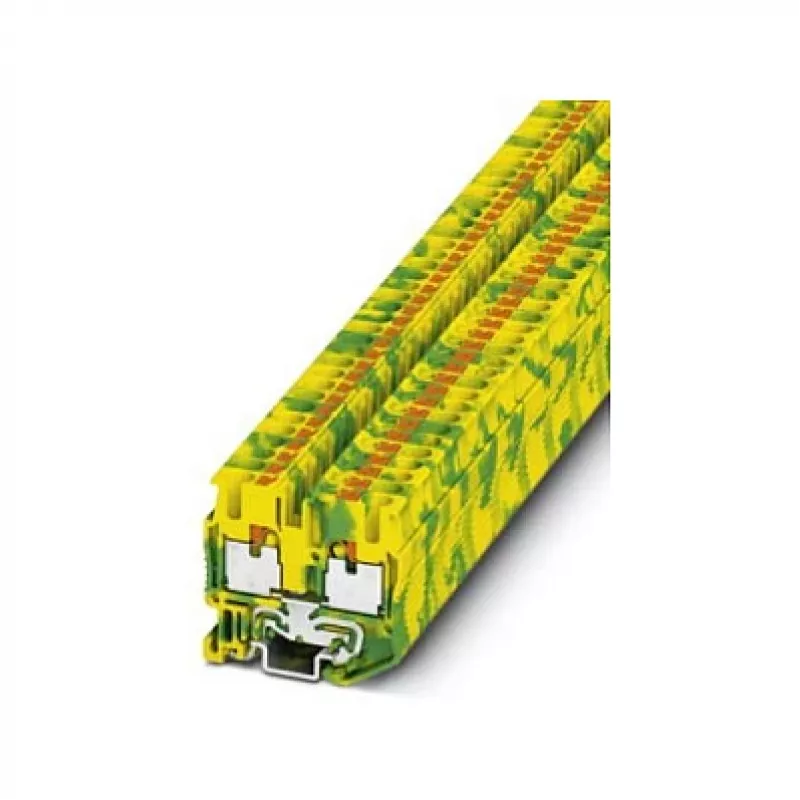

Phoenix MPT 2,5-PE mini aardleidingklem, push-in, 2,5 mm², groen-geel

Protective conductor terminal block with push-in connection technology for fast, tool-free wiring of PE conductors up to 2.5 mm². The compact mini design saves space on the DIN rail while ensuring reliable grounding in control cabinets and distribution boards.

Advantages

Push-in termination reduces installation time by up to 50% compared to screw connections. The green-yellow housing clearly identifies the PE function, and the high-quality polyamide insulation meets UL 94 V0 flammability requirements for enhanced safety.

Suitable for

• Grounding and protective earth connections in industrial control panels
• Building installation distribution boards
• Machine building and automation systems
• Applications requiring vibration-resistant, maintenance-free connections

Key specifications

• Nominal cross section: 2.5 mm² (solid up to 4 mm², stranded up to 2.5 mm²)
• Connection method: Push-in
• Number of connections: 2
• Mounting: DIN rail NS 35/7.5 or NS 35/15
• Operating temperature: -60 °C to 105 °C
• Standards: IEC 60947-7-2, UL, cUL, EAC, VDE

Recommendations

Ideal for electricians and panel builders who need a compact, reliable PE terminal with fast push-in wiring. Pair with Phoenix end brackets and marking accessories for a complete installation.
