PSSO DMX-kabel XLR 3-pin 20m zwart Neutrik-stekker 30227818

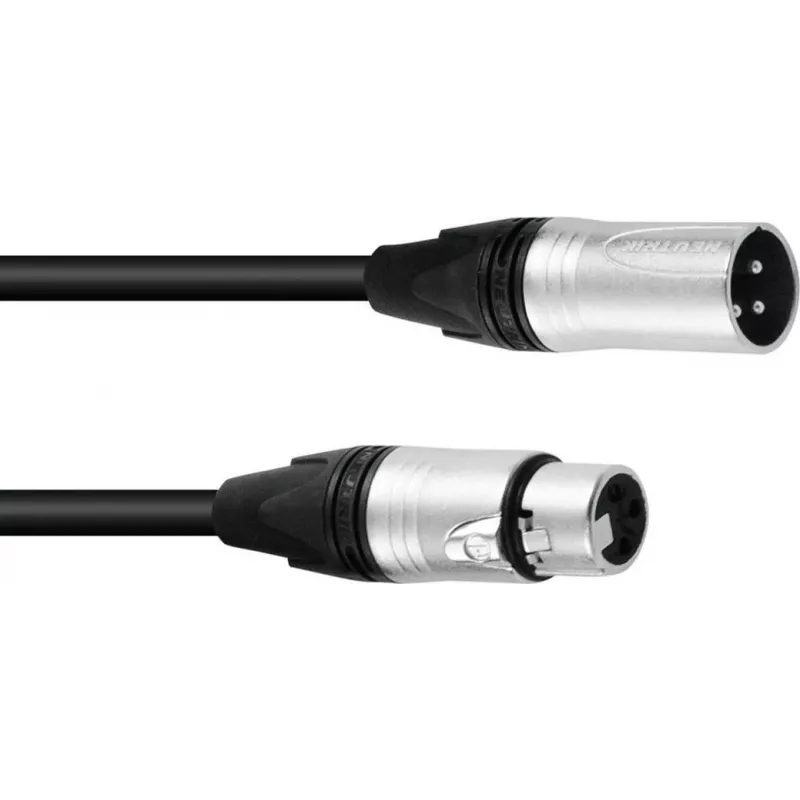

Professional DMX cable engineered for reliable DMX512 lighting control over 20 metres. The PSSO 30227818 features high-quality Neutrik XLR 3-pin connectors and a robust black PVC jacket, ensuring stable signal transmission in demanding stage and studio environments.

Advantages

Oxygen-free copper conductors and braided copper shielding deliver exceptional signal integrity with 110 Ohm impedance, minimising interference and data errors. Neutrik connectors provide secure, durable connections that withstand frequent plugging and unplugging. The high-flexibility jacket is designed for touring and live production, resisting kinks and tangles while maintaining performance across a wide temperature range from -20°C to +70°C.

Suitable for

• DMX512 lighting control systems
• Stage and theatre productions
• Studio installations
• Mobile DJ and event setups
• Architectural lighting networks

Key specifications

• Cable length: 20 metres
• Connectors: Neutrik XLR 3-pin male to XLR 3-pin female
• Impedance: 110 Ohm
• Conductor material: Oxygen-free copper (OFC)
• Conductor gauge: 2 x 0.22 mm² (approx. 24 AWG)
• Shielding: Braided copper shield
• Outer jacket: PVC, black, approx. 6.5 mm diameter
• Operating temperature: -20°C to +70°C
• Standard compliance: DMX512

Recommendations

For reliable DMX signal transmission over long runs, pair this cable with high-quality lighting fixtures and a DMX terminator to prevent reflections. Always coil cables properly to extend lifespan, and consider using cable ramps in high-traffic areas.
