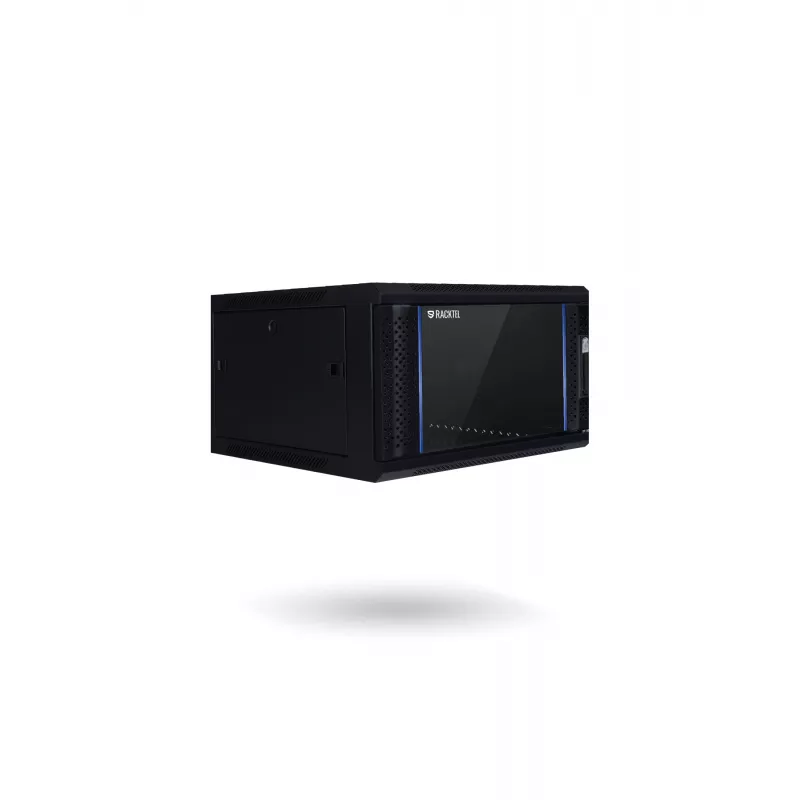

RACKTEL RL-4504WR 4U wandmontage-rackbehuizing 600x450mm zwart

The RACKTEL RL-4504WR is a professional 4U wall-mounted rack cabinet designed for secure and organized installation of 19-inch network and IT equipment. With a compact 600x450mm footprint and a sleek black finish (RAL 9005), this flat-pack cabinet offers a robust solution for small to medium-sized deployments.

Advantages

Space-saving wall-mount design frees up floor space. Tempered glass front door with lock provides equipment visibility and security. Removable, lockable side panels allow easy access for maintenance. Adjustable mounting rails accommodate various equipment depths. Fan-ready top panel enables active cooling when needed.

Suitable for

• Network switches, patch panels, and routers
• Small server installations
• Audio/visual equipment
• Telecommunications and security systems

Key specifications

• Rack Units: 4U
• External dimensions (WxDxH): 600 x 450 x 230 mm
• Internal usable depth: 380 mm
• Material: Cold-rolled steel
• Front door: Tempered glass with lock
• Side panels: Removable, lockable
• Mounting rails: 2 pairs, adjustable depth
• Cable entry: Top and bottom with knockouts/brush panels
• Ventilation: Passive, fan-ready top panel
• Static load capacity: 60 kg
• Protection class: IP20
• Color: Black (RAL 9005)
• Standards: EIA-310-D, IEC 297-2, DIN 41494
• Included accessories: Set of keys, mounting screws, cage nuts

Recommendations

This cabinet is ideal for wall-mounting in server rooms, offices, or industrial environments where floor space is limited. Ensure adequate ventilation and consider adding optional fans for high-density installations.
