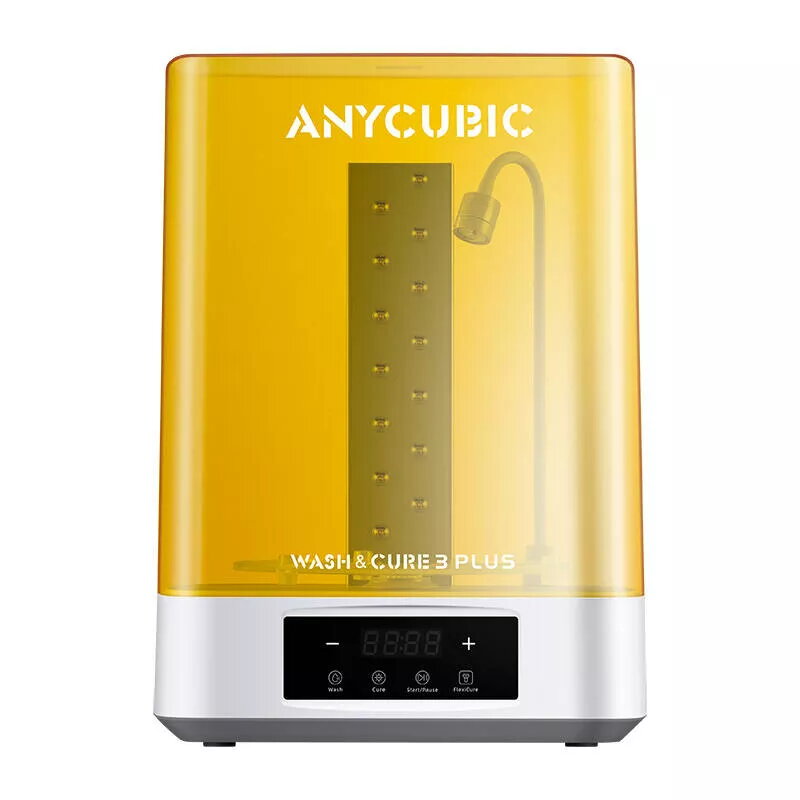

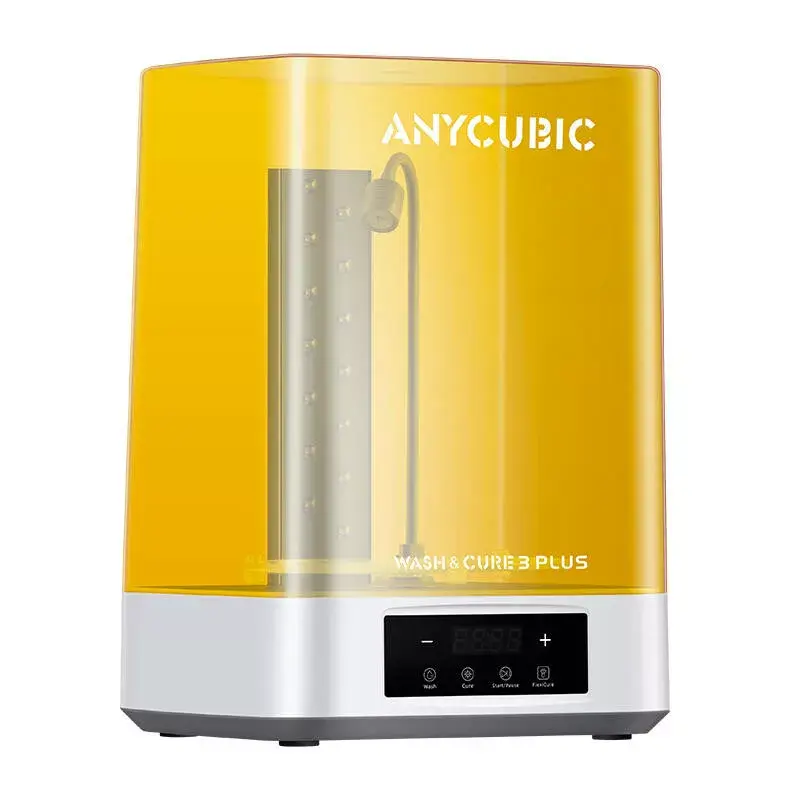

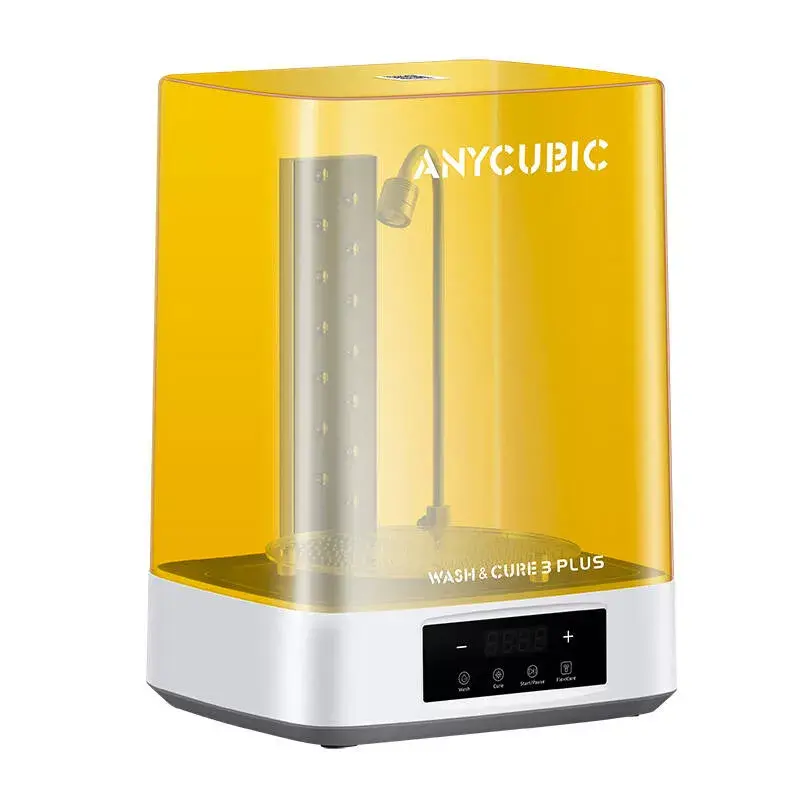

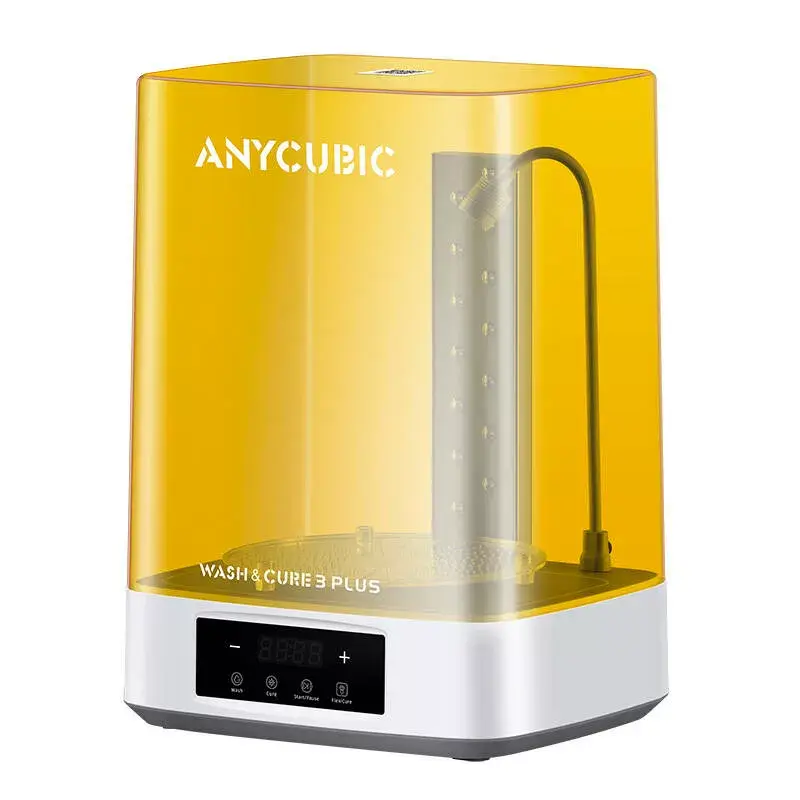

Reinigings- en droogapparaat AnyCubic Wash & Cure 3 Plus WS3LA0WH-Y-O voor 3D-prints

AnyCubic Wash & Cure 3 Plus Print Cleaning and Drying Device is a combined washer and UV curing station designed for finishing resin 3D prints. It features a large cleaning module and a two-layer curing platform that accommodate bigger models while maintaining compact external dimensions. The unit provides selectable operating modes, adjustable time settings, and a bendable UV lamp to improve curing coverage.

Advantages

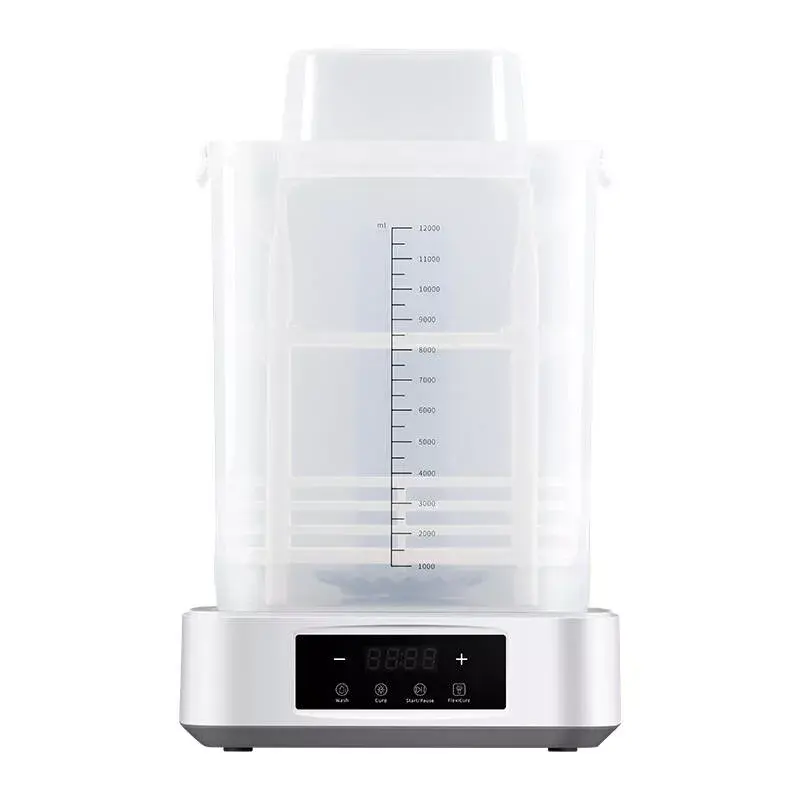

The Wash & Cure 3 Plus offers a spacious 7.6 L cleaning basket and a 12 L cleaning module that support larger parts. Its improved LED arrangement and the included bendable UV lamp deliver consistent curing with an energy level of 30,000 μW/cm² at 1–3 cm distance. The rust-resistant double-layer PP basket supports cleaning on the build platform and can be positioned at two heights (150 mm and 250 mm) to optimize IPA usage. Quiet sealed construction and optimized software keep noise around 65 dB. Operation is simple via a built-in touch panel with three modes: Cleaning, Curing, and FlexiCure.

Key specifications

• Manufacturer: AnyCubic
• Model: WS3LA0WH-Y-O

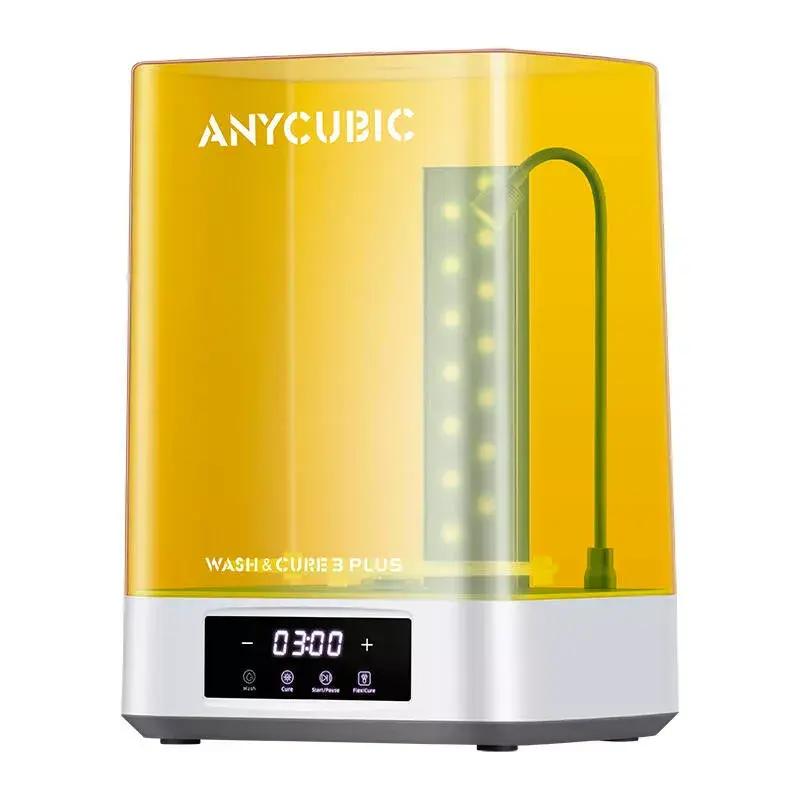

• UV light source: 14 diodes 405 nm + lamp with adjustable (bendable) design
• Operation modes: Cleaning, Curing, FlexiCure
• Rated power: 36 W
• Input voltage: 100–240 V, 50/60 Hz
• Cleaning / curing time adjustment: 1–30 min
• Max. curing area (diameter x height): ø220 x 260 mm
• Max. cleaning dimensions with platform: 228 x 128 x 250 mm; without platform: 228 x 128 x 260 mm
• Control panel: Touch buttons
• Material (cleaning basket, cleaning module, curing table): PP
• UV lamp height: 380 mm
• Device dimensions: 312 x 267 x 434 mm
• Weight: 5.7 kg

How to use

Place the print in the cleaning basket or on the build-platform position that matches the print height, add the appropriate amount of IPA according to basket height, and select the Cleaning mode on the touch panel. After cleaning, transfer the model to the curing table, position the bendable UV lamp to target detailed areas if needed, choose Curing or FlexiCure mode, and set the required time between 1 and 30 minutes. Follow safety instructions in the user manual for handling IPA and UV exposure.

Recommendations

Use the basket height that minimizes IPA volume while fully covering the part. For detailed or complex models, use the bendable UV lamp and FlexiCure mode to improve cure uniformity. Always wear appropriate gloves and eye protection when handling solvents and avoid direct skin exposure to UV light.
