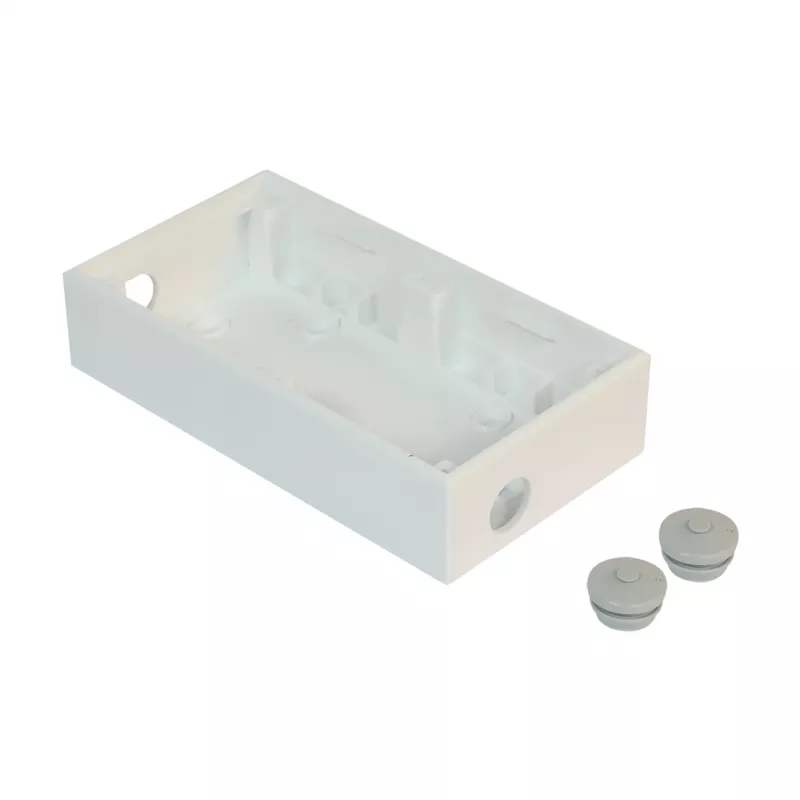

Shelly opbouw dubbele behuizing voor wandschakelaar 35mm (SP3D0024)

The Shelly Surface-Mounted Double Enclosure for Wall Switch 35mm (SP3D0024) is a high-quality ABS plastic housing designed to accommodate Shelly Wall Switch modules and compatible Shelly relays for surface mounting. This double-gang enclosure provides a clean, professional installation on walls where flush mounting is not possible, making it ideal for retrofitting smart home controls in residential and commercial settings.

Advantages

This enclosure offers a simple and elegant solution for surface mounting Shelly Wall Switch modules. Its 35mm internal depth ensures compatibility with a wide range of Shelly devices, while the pre-marked knockouts simplify cable entry. The modern, minimalist design blends seamlessly with any décor, and the V-0 flame-retardant material ensures safety.

Suitable for

• Surface mounting Shelly Wall Switch 1-gang and 2-gang modules
• Housing Shelly 1, Shelly 1PM, Shelly 2.5, Shelly Dimmer 2, Shelly Plus 1, Shelly Plus 1PM, Shelly Plus 2PM, and Shelly Plus Dimmer when used with Wall Switch frames
• Smart home retrofits where in-wall installation is not feasible
• Commercial office automation projects requiring on-wall control points

Key specifications

• Product Type: Wall Switch Enclosure
• Mounting Type: Surface Mount (On-Wall)
• Number of Gangs: Double (2-gang)
• Internal Depth: 35 mm
• Material: High-quality ABS Plastic
• Colour: White
• IP Rating: IP20
• Operating Temperature: -20°C to +40°C
• Flame Retardancy: V-0 (Self-extinguishing)
• UV Resistance: No (Indoor Use)
• Installation Method: Screw Mounting
• Design: Modern, Minimalist
• Certifications: CE, RoHS
• Cable Entry: Pre-marked knockouts
• Dimensions (L x W x H): 150 x 80 x 35 mm

Recommendations

For a complete surface-mount smart switch solution, pair this enclosure with a Shelly Wall Switch module and compatible Shelly relay. Ensure the enclosure is mounted on a flat, dry surface indoors. Use the pre-marked knockouts for cable entry and secure with screws (not included).
