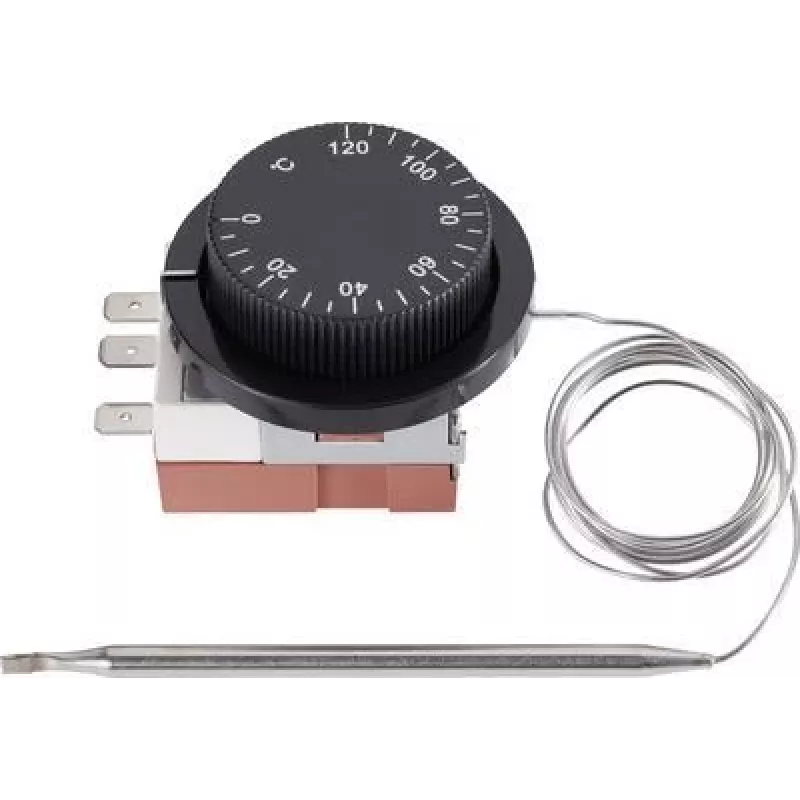

SYGONIX inbouwthermostaat 0 tot +120°C, capillaire voeler, 16A SPDT (SY-5044424)

Switching capacity of 16 A at 250 V AC with a single changeover contact makes this thermostat suitable for direct control of heating or cooling loads in industrial temperature control. The capillary sensor with a 1000 mm length and 6 mm diameter probe allows remote temperature sensing in built-in applications.

Overview

The SYGONIX SY-5044424 is a mechanical built-in thermostat with an adjustable temperature range from 0 to +120 °C. It uses a capillary sensor for accurate temperature detection and provides a switching differential of approximately 3 K. The unit is designed for panel mounting and connects via screw terminals.

What stands out

• Wide temperature range: 0 to +120 °C
• Capillary sensor with 1000 mm length for flexible installation
• High switching capacity: 16 A at 250 V AC
• SPDT contact for versatile control
• Mechanical operation for reliability

Technical details

• Sensor type: Capillary sensor
• Capillary length: 1000 mm
• Sensor probe diameter: 6 mm
• Sensor probe length: 70 mm
• Contact type: 1 changeover contact (SPDT)
• Switching differential: approx. 3 K
• Protection class: IP40
• Mounting type: Panel mount / built-in
• Electrical connection: Screw terminals
• Housing material: Plastic
• Ambient operating temperature: -10 to +70 °C
• Application: Heating, cooling, industrial temperature control

Our verdict

A robust mechanical thermostat with a wide temperature range and high switching capacity, ideal for demanding industrial temperature control tasks.
