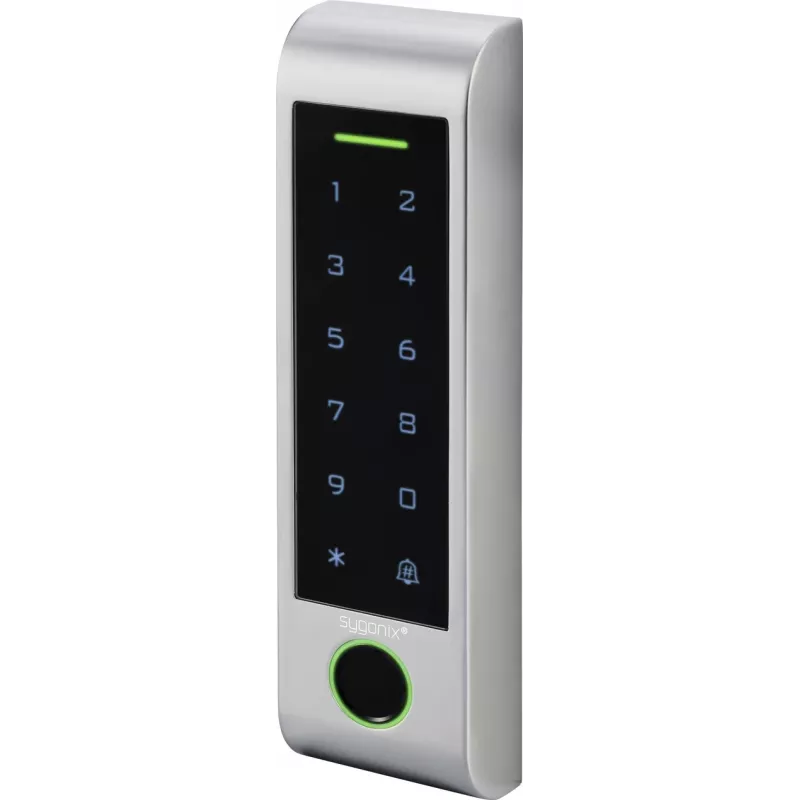

Sygonix SY-6121662 vingerafdruk RFID toegangscontrolesysteem IP66 opbouw touchscreen 12-18V DC

Managing access to secure areas often means juggling keys, cards, or remembering PIN codes. The Sygonix SY-6121662 consolidates fingerprint, RFID card, and PIN code authentication into a single, weatherproof unit, so you can control entry without the hassle of traditional locks.

Who is it for

This access control system suits small to medium businesses, offices, warehouses, or residential complexes that need reliable, multi-user access management. It is especially useful where the reader must be mounted outdoors or in dusty, wet environments thanks to its IP66-rated housing.

Main features

• Three authentication methods: fingerprint, RFID card (125 kHz EM-compatible), and PIN code
• Stores up to 1000 users: 100 fingerprints, 890 cards/PINs, and 10 visitor users
• Durable zinc alloy housing with IP66 protection against dust and powerful water jets
• Backlit touchscreen keypad for easy operation in low light
• Relay output (NO/NC) to control electric strikes or magnetic locks
• Wiegand 26-bit input and output for integration with existing access control panels
• Built-in tamper alarm and door open alarm for enhanced security
• Doorbell function adds convenience for visitors

Specifications

• Brand: Sygonix
• Model: SY-6121662
• MPN: SY-6121662
• EAN: 4064161318448
• Access methods: Fingerprint, RFID card, PIN code
• User capacity: 1000 (100 fingerprints, 890 cards/PINs, 10 visitor users)
• RFID frequency: 125 kHz (EM-compatible)
• Input voltage: 12-18V DC
• Current consumption: <100 mA standby, <150 mA active
• Relay output: Yes (NO/NC)
• Wiegand interface: Wiegand 26-bit (input & output)
• Protection rating: IP66
• Mounting type: Surface mount
• Housing material: Zinc alloy
• Operating temperature: -20°C to +60°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Keypad type: Touchscreen with backlight
• Alarm functions: Tamper alarm, door open alarm
• Doorbell function: Yes
• Programming method: Master card/PIN
• RFID read range: 2-6 cm
• Fingerprint sensor type: Optical

Tips

For outdoor installations, ensure the unit is mounted vertically to prevent water accumulation on the keypad. Use a separate power supply capable of delivering at least 150 mA at 12V DC to avoid voltage drops during relay activation.
