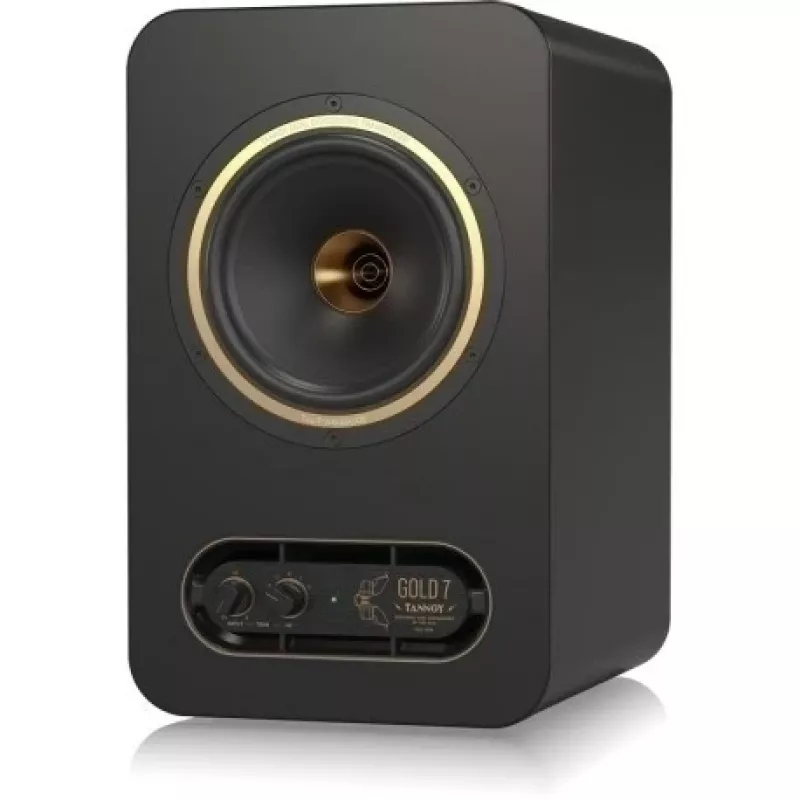

Tannoy GOLD 7 Actieve Nearfield Studiomonitor 6,5 inch 300W

The Tannoy GOLD 7 is a professional active nearfield studio monitor designed for critical listening and accurate sound reproduction. Featuring a 6.5" woofer and 1" titanium dome tweeter with Tulip Waveguide, it delivers a wide frequency response and high SPL capability. The bi-amplified design provides 300W peak power, ensuring clear and detailed audio across the spectrum.

Advantages

Exceptional clarity and precision thanks to Dual Concentric driver technology. The front-ported MDF enclosure minimizes distortion and allows flexible placement. Comprehensive input trim controls and auto standby function enhance usability in any studio setup.

Suitable for

• Professional recording studios
• Home studios and mixing environments
• Broadcast and post-production facilities
• Critical listening and audio mastering

Key specifications

• Type: Active Nearfield Studio Monitor
• Configuration: 2-Way Bi-amplified
• Low-Frequency Driver: 6.5" (165 mm) Woofer
• High-Frequency Driver: 1" (25 mm) Titanium Dome Tweeter with Tulip Waveguide
• Total Amplifier Power: 300W Peak (150W RMS)
• LF Amplifier Power: 100W RMS
• HF Amplifier Power: 50W RMS
• Frequency Response (-10 dB): 46 Hz - 20 kHz
• Frequency Response (±3 dB): 70 Hz - 20 kHz
• Max Peak SPL: 110 dB
• Crossover Frequency: 2 kHz
• Input Connectors: 1x XLR (Balanced), 1x 1/4" TRS (Balanced)
• Input Impedance: 20 kΩ (Balanced), 10 kΩ (Unbalanced)
• Controls: Input Trim, HF Trim, Bass Trim, Auto Standby
• Enclosure Type: Front-ported MDF
• Power Supply: 100-240V~, 50/60Hz
• Driver Technology: Dual Concentric
• Protection Circuits: Overload, Over-temperature, Short circuit

Recommendations

For optimal stereo imaging, pair two GOLD 7 monitors with appropriate stands and acoustic treatment. Use balanced XLR or TRS connections for best signal integrity.
