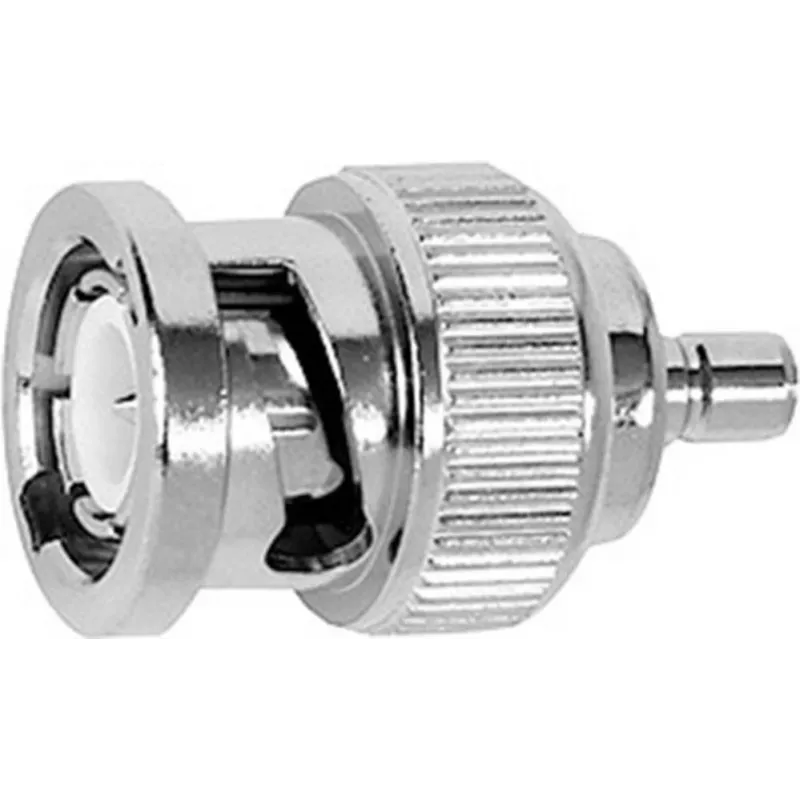

TELEGÄRTNER BNC-stekker op SMB-stekker coaxiale adapter, 50 Ohm, vernikkeld messing, J01008G0038

This TELEGÄRTNER coaxial adapter connects a BNC male plug to an SMB male plug, enabling reliable signal transfer between equipment with different RF connector types in laboratory, test, and broadcast environments. The adapter features a 50 Ohm impedance and supports frequencies from DC to 4 GHz, making it suitable for a wide range of RF applications.

Key specifications

• Connector 1: BNC male
• Connector 2: SMB male
• Impedance: 50 Ohm
• Frequency range: DC to 4 GHz
• Body material: Brass, nickel-plated
• Contact material: Brass, gold-plated
• Insulation material: PTFE
• Operating temperature: -40 °C to +85 °C
• VSWR: ≤ 1.3 at 1 GHz
• Dielectric withstanding voltage: 1.5 kV RMS
• Insulation resistance: ≥ 5 GΩ
• Center contact resistance: ≤ 1.5 mΩ
• Outer contact resistance: ≤ 1 mΩ

Why choose it

Precision-machined brass construction with nickel plating ensures durable mating cycles and corrosion resistance. Gold-plated contacts provide low contact resistance and reliable signal integrity. PTFE insulation offers excellent dielectric properties across the operating temperature range.

Ideal use cases

• RF test and measurement setups
• Broadcast equipment interconnection
• Telecommunications infrastructure
• Laboratory prototyping

Good to know

The adapter is RoHS compliant. It is sold individually (1 piece).
