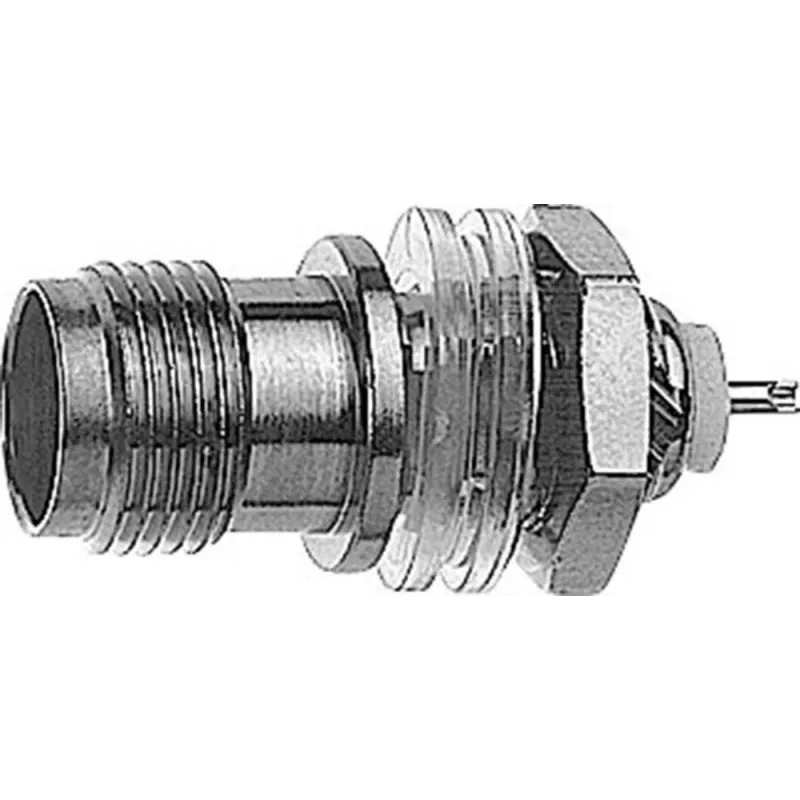

Telegärtner TNC inbouwbus, geïsoleerd, 50 Ohm, soldeeraansluiting, nikkel/goud (J01011A0013)

RF systems often fail because the connector cannot be mounted reliably or introduces unwanted ground loops. The Telegärtner TNC panel jack solves this by providing an insulated panel mount with a 50 Ohm impedance, ensuring a clean signal path from DC to 11 GHz. Its solder center contact and robust brass body with nickel plating make it suitable for professional RF installations.

Who is it for

RF engineers, telecommunications technicians, and industrial electronics professionals who need a durable, insulated TNC connector for panel mounting in antennas, test equipment, or communication systems.

Main features

• TNC female (jack) connector, 50 Ohm impedance
• Insulated panel mount with M12x1 thread and 12.7 mm D-hole cut-out
• Solder termination for center contact, ensuring secure connection
• Frequency range DC to 11 GHz, VSWR ≤ 1.3 up to 6 GHz
• Body: brass with nickel plating; center contact: brass with gold plating; insulator: PTFE
• Operating temperature -55 °C to +155 °C, ≥500 mating cycles

Specifications

• Connector type: TNC jack (female)
• Impedance: 50 Ohm
• Mounting: insulated panel mount, M12x1 thread, 12.7 mm D-hole
• Termination: solder (center contact)
• Frequency range: DC to 11 GHz
• VSWR: ≤ 1.3 (DC to 6 GHz)
• Dielectric withstanding voltage: 1.5 kVeff
• Insulation resistance: ≥ 5 GΩ
• Center contact resistance: ≤ 1.5 mΩ
• Outer contact resistance: ≤ 1.0 mΩ
• Operating temperature: -55 °C to +155 °C
• Mating cycles: ≥ 500
• Body material: brass, nickel plated
• Center contact material: brass, gold plated
• Insulator material: PTFE

Tips

When installing, ensure the panel cut-out is exactly 12.7 mm (D-hole) and use the M12x1 thread for secure mounting. For best performance, keep the mating connector clean and avoid exceeding the specified torque.
