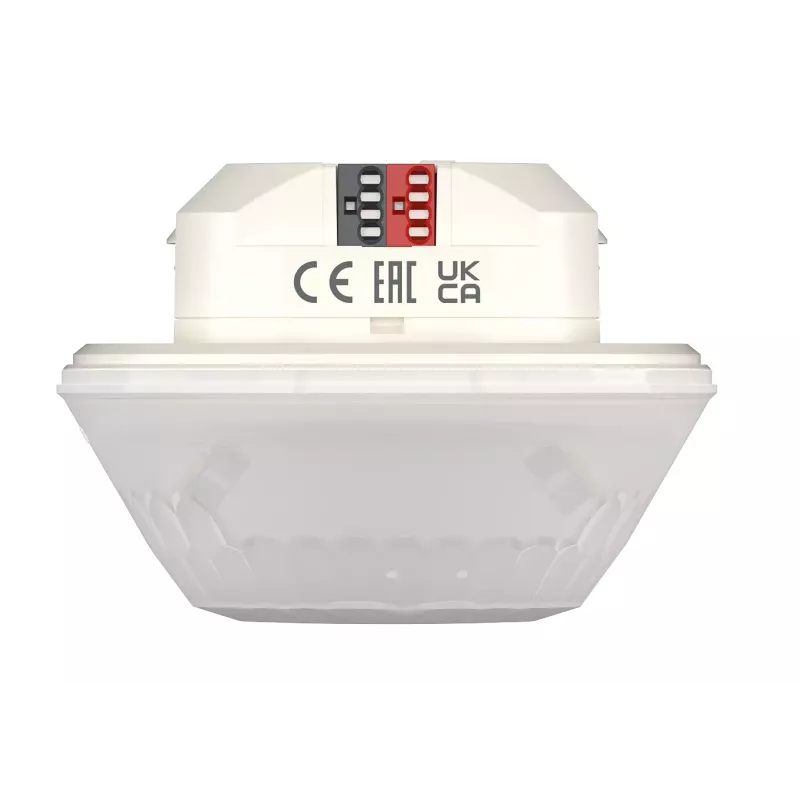

Theben LUXA103S360-28KNXUP KNX-plafond-aanwezigheidsmelder, 360°, inbouwmontage, wit 1039072

The Theben LUXA103S360-28KNXUP is a KNX ceiling-mounted presence detector with 360° detection and three channels for lighting, HVAC, and presence control. Its flush-mounted design and compact visible profile make it suitable for offices, meeting rooms, and corridors.

Advantages

360° detection range up to 8 m diameter at 2.5 m installation height. Integrated light sensor from 10 to 2000 lux enables constant light control. Three independent channels allow flexible automation of lighting, HVAC, and presence-based scenes. UV-stabilised polycarbonate housing ensures durability.

Suitable for

• Offices and meeting rooms
• Corridors and open spaces
• KNX building automation projects

Key specifications

• Bus system: KNX
• Mounting type: Ceiling, flush-mounted
• Detection angle: 360°
• Detection range diameter: up to 8 m at 2.5 m height
• Recommended installation height: 2.0 m – 3.5 m
• Light sensor range: 10 – 2000 lux
• Number of channels: 3 (lighting, HVAC, presence)
• Supply voltage: KNX bus voltage
• Protection class: IP20
• Ambient temperature range: -15 °C to +50 °C
• Product colour: White
• Housing material: UV-stabilised polycarbonate
• Configuration: ETS software
• Visible diameter: 85 mm
• Visible height: 18 mm
• Installation depth: 60 mm

Recommendations

For reliable presence detection in KNX installations, pair with Theben actuators and configure via ETS for optimal performance.
