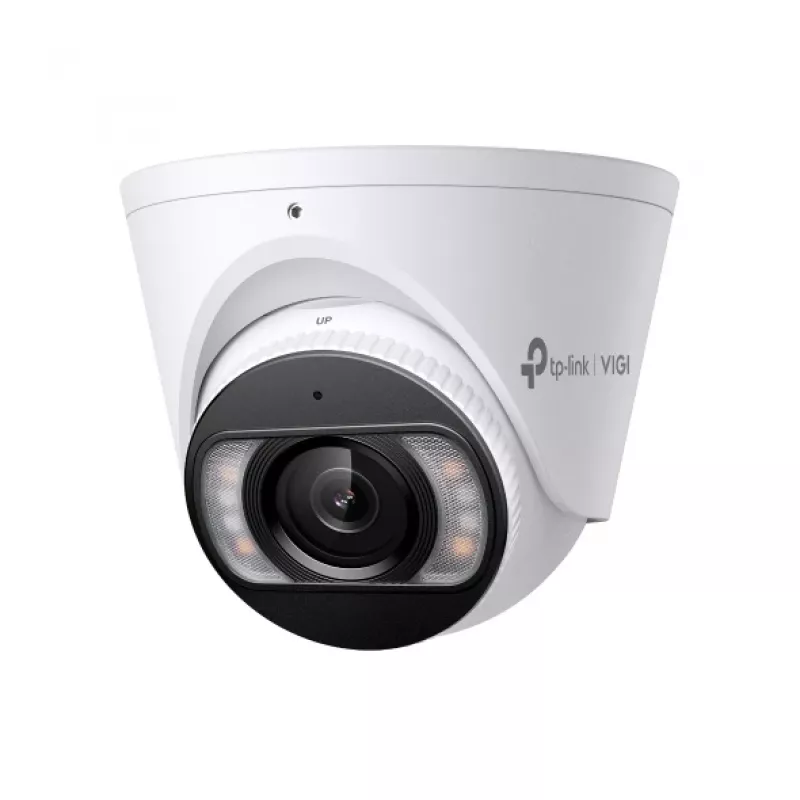

TP-Link VIGI C445 Turret IP-bewakingscamera binnen & buiten 2688 x 1520 pixels plafond/wand

The TP-Link VIGI C445 Turret is an IP security camera designed for indoor and outdoor monitoring. It captures video at a resolution of 2688 × 1520 pixels and supports up to 60 fps, delivering detailed footage with low-light sensitivity down to 0.005 lx. The turret form factor and ceiling/wall mounting options provide installation flexibility. Wired Ethernet connectivity ensures stable network performance while the camera's white housing suits many installation environments.

Advantages

The camera provides high-resolution imaging at 2688 × 1520 pixels and high frame rate support for smoother motion capture. Its low-light performance and specified detection, observation, and recognition ranges help to maintain situational awareness in varied lighting conditions. A 100° horizontal and 54° vertical field of view offers broad coverage from a single mounting point. Wired Ethernet connectivity reduces interference and supports continuous video streaming. The turret design simplifies aiming and mounting on ceilings or walls.

Suitable for

• Monitoring entrances, hallways and corridors
• Perimeter surveillance for residential properties
• Indoor coverage in retail or office spaces
• Outdoor observation of driveways and small yards

Key specifications

• Image resolution: 2688 × 1520 pixels
• Frame rate: up to 60 fps
• Minimum illumination: 0.005 lx
• Field of view: 100° horizontal; 54° vertical
• Detection / observation / recognition distances: detection up to 64 m, observation up to 27 m, recognition up to 13 m
• Mounting: ceiling or wall
• Connectivity: wired Ethernet (LAN)
• Placement: indoor and outdoor
• Color: white
• Weight: 0.48 kg

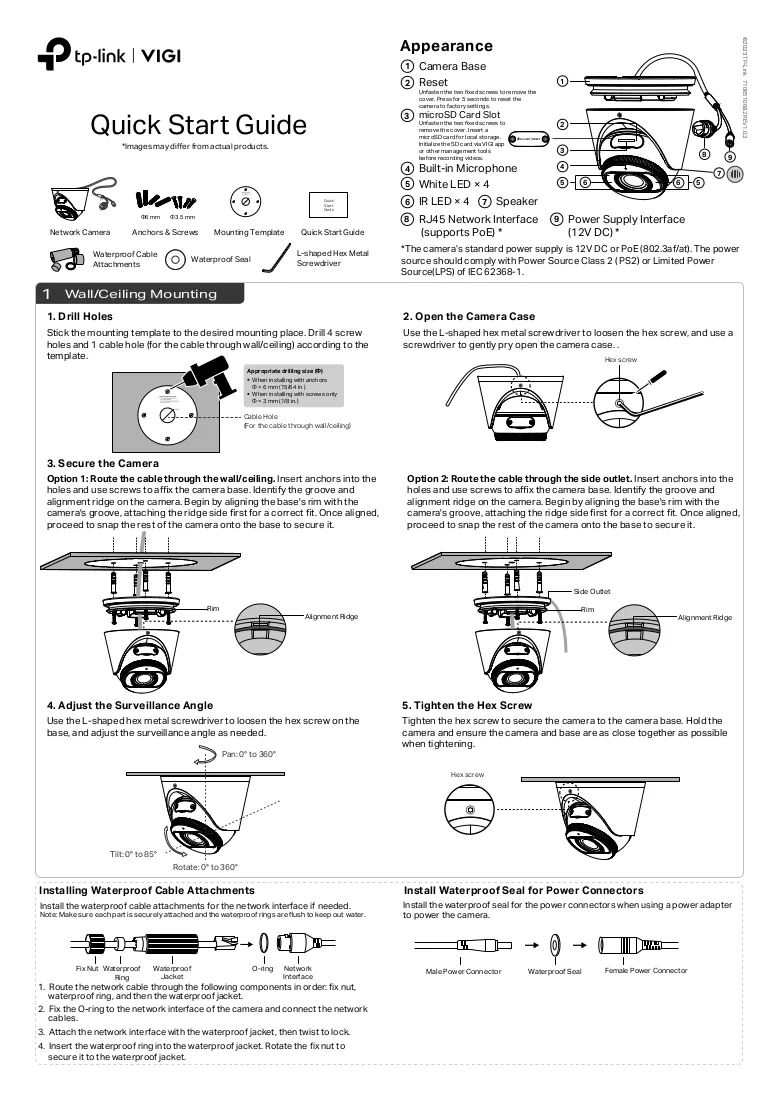

How to use

Mount the turret camera on a suitable ceiling or wall surface using appropriate screws and anchors for the substrate. Connect the camera to a power source and to the local network via Ethernet to enable video streaming and remote access. Configure the camera using TP‑Link VIGI management software or compatible NVR/ONVIF systems, set resolution to 2688 × 1520 and select the desired frame rate up to 60 fps. Adjust the lens orientation to achieve the required coverage, and verify detection and motion settings to match the monitored area.

Recommendations

For reliable operation, use a stable wired network connection and place the camera at a height and angle that optimize coverage based on the camera's field of view. When installing outdoors, ensure the mounting location provides protection from direct exposure to extreme weather if possible. Regularly check firmware updates and backup recordings on a local storage device or NVR to maintain system security and data integrity.
