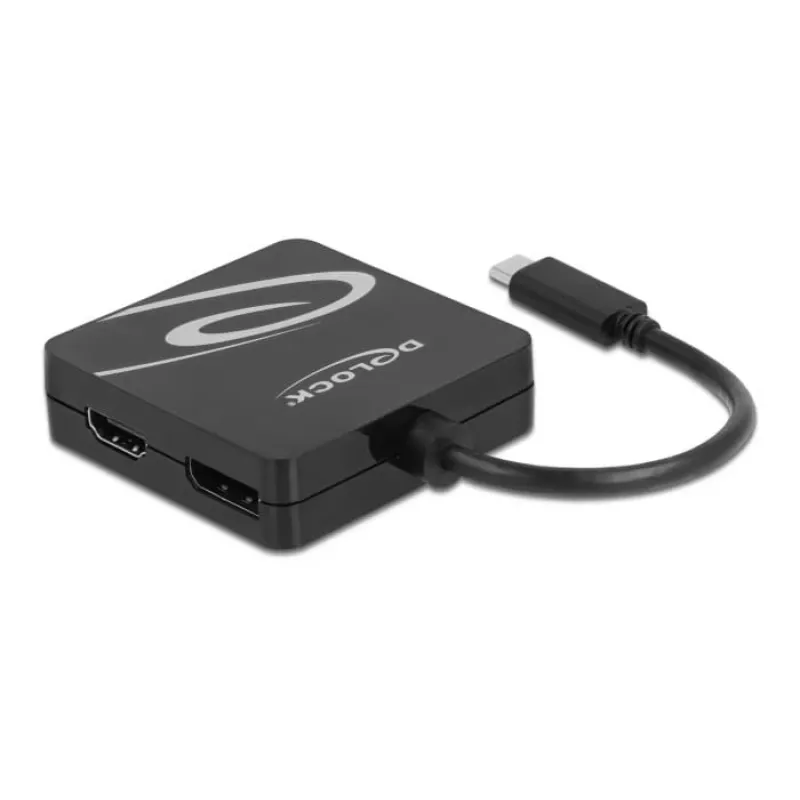

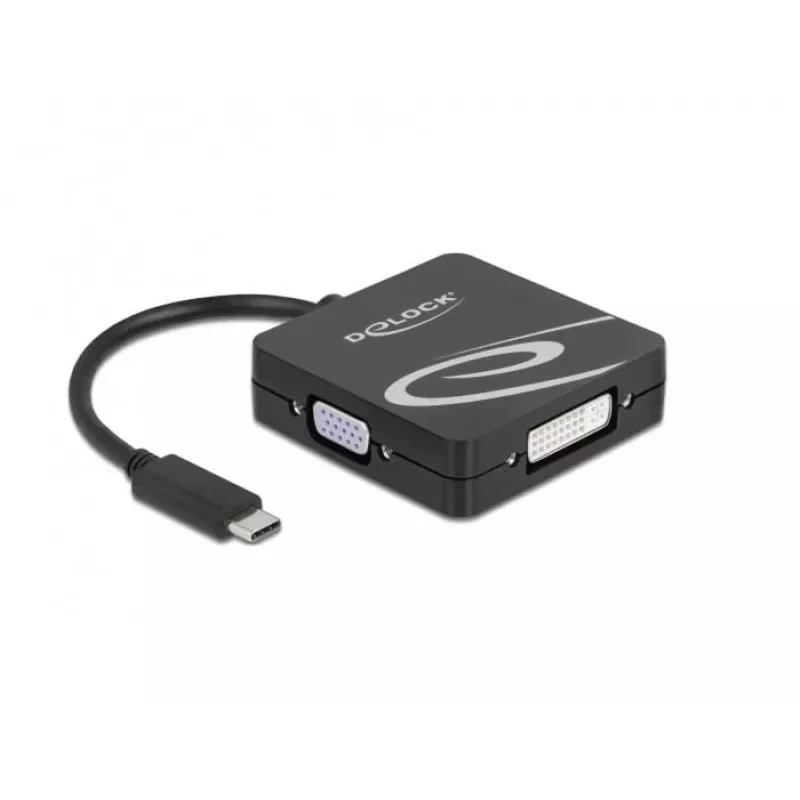

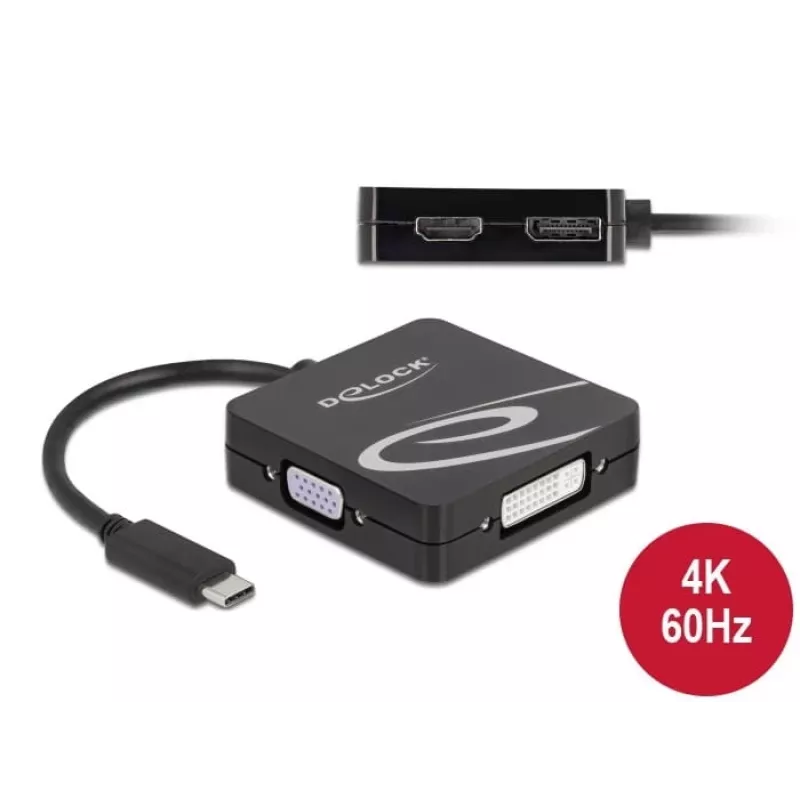

USB Type-C-adapter DELOCK 63129

The DeLOCK USB Type-C adapter 63129 enables connection of a single external monitor to a computer with a USB-C port that supports DisplayPort alternate mode or to a Thunderbolt 3 port. It provides four different video outputs — VGA, DVI, HDMI and DisplayPort — and supports maximum resolutions up to 3840 x 2160 pixels while commonly used graphics modes include 1920 x 1080 (Full HD) and 1920 x 1200 (WUXGA). The adapter is compact and finished in black.

Advantages

This adapter offers flexible connectivity for various monitors and projectors via VGA, DVI, HDMI or DisplayPort from a single USB-C or Thunderbolt 3 interface. It supports high-resolution displays up to 3840 x 2160 and is compatible with multiple operating systems including Windows 10, Windows 8, Linux Kernel 5.8 and Android. Its compact, single-unit design is suitable for travel and presentations.

Suitable for

• Connecting a laptop with USB-C (DisplayPort Alt Mode) to an external monitor or projector
• Presentations in meeting rooms using VGA, DVI, HDMI or DisplayPort inputs
• Travelling professionals who need a simple multi-output adapter
• Using a Thunderbolt 3 port as an alternative host interface

Key specifications

• Brand: DELOCK
• Model / MPN: 63129
• EAN: 4043619631292
• Interfaces: USB Type-C (host) with DisplayPort alt mode / Thunderbolt 3 compatible; outputs: VGA, DVI, HDMI, DisplayPort
• Maximum resolution: up to 3840 x 2160 pixels
• Common supported resolutions: 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
• Compatible OS: Windows 10, Windows 8, Linux Kernel 5.8, Android
• Colour: Black
• Number of simultaneous monitors: 1

How to use

Connect the adapter's USB-C plug to a compatible host port on your laptop or device that supports DisplayPort alternate mode, or to a Thunderbolt 3 port. Attach the required video cable from the adapter’s chosen output (VGA, DVI, HDMI or DisplayPort) to the external monitor or projector. Select the external display in your operating system’s display settings and choose the preferred mode (mirror, extend, or external only). Only one output can be active at a time.

Recommendations

For best results use the shortest quality video cable available for the selected output and verify that your host device supports DisplayPort alternate mode over USB-C. When using high resolutions (e.g. 3840 x 2160), ensure the connected display and cable support the required bandwidth.
