VivoLink HDMI-female Keystone-inzet PROKEYHDMIFM1W wit — HDMI-F-bus Keystone-module

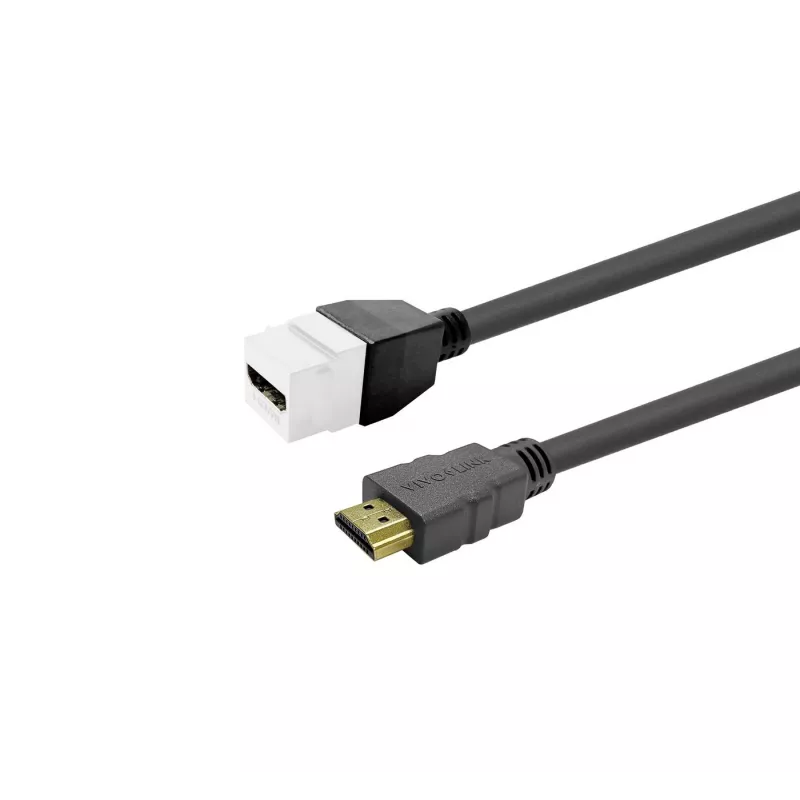

VivoLink HDMI Female Keystone Insert PROKEYHDMIFM1W in white is a panel-mount HDMI F module designed to fit standard keystone wall plates and patch panels. It provides a secure, recessed HDMI female connection for displays, projectors and AV equipment, enabling a clean and professional finish for home theatre, office and conference room installations. The module simplifies cable routing by keeping the HDMI socket at the panel surface while the cable connection remains accessible behind the plate.

Advantages

This HDMI keystone insert offers a compact, snap-in design compatible with standard keystone openings, allowing fast installation without special tools. The recessed female HDMI connector reduces strain on patched cables and helps maintain a tidy appearance on walls and racks. Constructed to align with common plate systems, the white finish provides a neutral look that blends with most wall plates and décor.

Suitable for

• Wall plate installations for living rooms and home cinema setups
• AV patch panels and rack-mounted distribution systems
• Conference rooms, classrooms and meeting spaces requiring a fixed HDMI outlet
• Custom furniture or cabinetry with built-in AV access points

Key specifications

• Connector type: HDMI female (recessed)
• Format: Keystone module, snap-in panel mount
• Colour: White finish suitable for standard wall plates
• Compatibility: Fits standard keystone wall plates and patch panels
• Application: AV signal routing for displays, projectors and source devices

How to use

Install the PROKEYHDMIFM1W by inserting the module into a compatible keystone opening until it clicks into place. Mount the populated wall plate or patch panel to the wall box or rack according to the plate manufacturer’s instructions. Connect an HDMI cable to the rear of the module from the source or distribution system, then plug the display or projector into the front-facing HDMI female port. Ensure cables are routed to avoid sharp bends and that connections are fully seated to maintain reliable signal transmission.

Recommendations

For best results, use HDMI cables and devices that meet the bandwidth and version requirements of your display and source equipment. Avoid excessive cable tension and secure internal cabling within the wall or rack to prevent stress on the module. Check compatibility with the specific keystone plate or panel before installation to confirm a proper fit.
