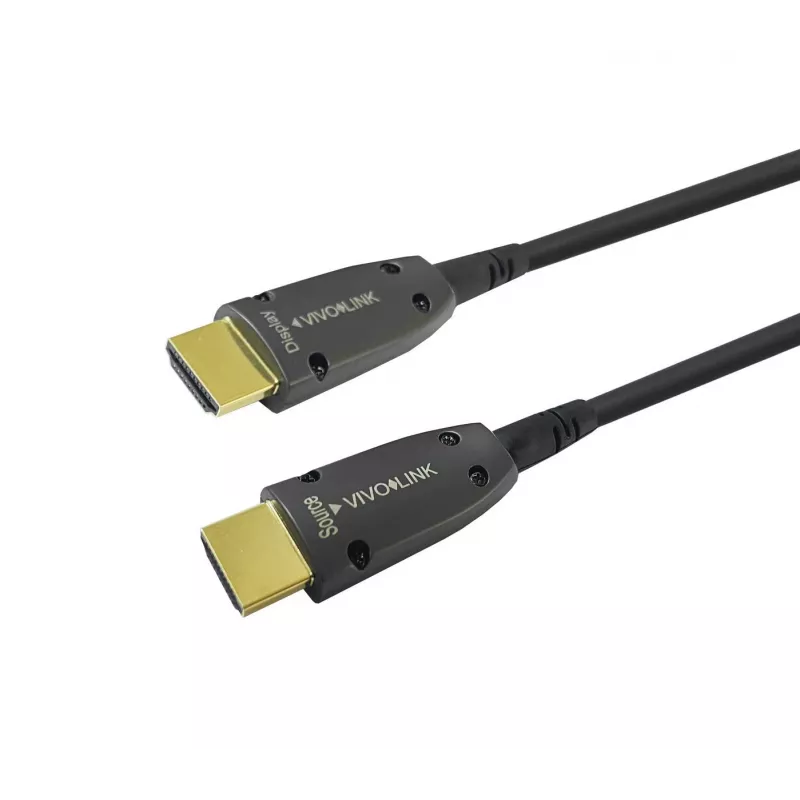

Vivolink PROHDMIOP30AM HDMI-kabel 30 m HDMI Type-A (standaard) zwart

The VivoLink PROHDMIOP30AM is a 30 m HDMI Type A cable designed for long-distance high-definition audio and video transmission. It supports HDMI 2.0 features including 4K@60Hz with 4:4:4 chroma sampling, 18 Gbps bandwidth, HDR 12-bit, HDCP 2.2 compatibility, 3D formats and Audio Return Channel (ARC). The cable has a slim 4.0 mm profile and gold-plated contacts for reliable signal transfer.

Advantages

This HDMI cable provides stable high-bandwidth transmission up to 18 Gbps and full support for HDMI 2.0 features required for 4K@60Hz 4:4:4 and HDR 12-bit content. Its 30 m length and slim 4.0 mm construction make it suitable for installations where a long run with minimal bulk is needed. Gold-plated contacts reduce corrosion and help maintain consistent connectivity. Mechanical specifications include a tensile strength of 20 kg and a maximum pressure load on the cable of 305 kg.

Suitable for

• Long-distance 4K video distribution in home theaters and conference rooms
• Connecting 4K@60Hz HDR sources to displays with HDCP 2.2 support
• Installations requiring a slim-profile cable route through conduits or behind walls
• Setups needing ARC functionality for simplified audio return

Key specifications

• Length: 30 m
• Connector type: HDMI Type A (standard)
• Bandwidth: 18 Gbps (HDMI 2.0)
• Resolution support: up to 4K@60Hz, 4:4:4
• HDR: 12-bit
• Content protection: HDCP 2.2
• Features: 3D, ARC
• Cable diameter: 4.0 mm (slim)
• Tensile strength (pull resistance): 20 kg
• Maximum pressure load on cable: 305 kg

How to use

Connect one HDMI Type A plug to the video source (such as a Blu-ray player, game console, or media streamer) and the other plug to the HDMI input on the display or AV receiver. Ensure both connected devices support the desired HDMI 2.0 features (4K@60Hz, HDR, HDCP 2.2) in their settings. Route the slim cable through the installation path, avoiding sharp bends and excessive pulling beyond the 20 kg tensile limit. If using ARC, enable ARC on both the TV and the audio device following their user manuals.

Recommendations

For best performance, keep cable bends gentle (minimum bend radius recommended by installer), avoid running the cable parallel and close to high-voltage power lines, and verify device settings for 4K/HDR/HDCP compatibility. Do not exceed the stated tensile strength or pressure load when installing.
