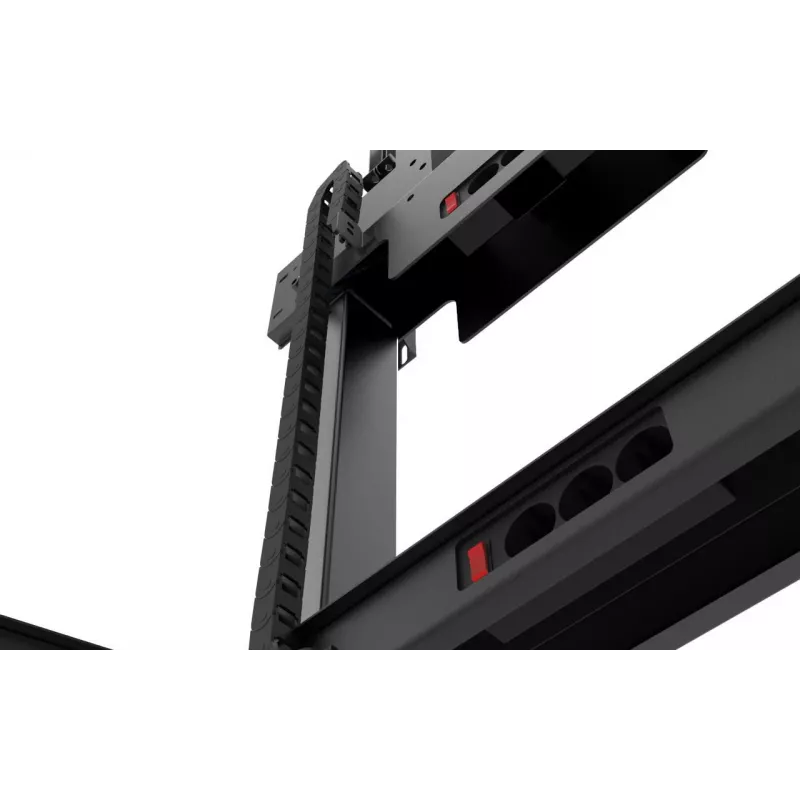

Vivolink VLFS32100W tv-wandhouder 2,54 m (100 inch) zwart

Vivolink VLFS32100W is a height-adjustable wall mount for large screens, suitable for displays from 32" up to 100" with a maximum load capacity of 160 kg. The mount supports VESA patterns up to 800 x 600 mm and features linear motors with an anti-collision system that stops movement on force resistance. Typical installations include interactive touch screens in schools and public spaces where variable height improves accessibility for both children and adults.

Advantages

The Vivolink VLFS32100W offers precise electric height adjustment across a 955–1650 mm range, robust load capacity for heavy professional displays, and broad VESA compatibility up to 800 x 600 mm. Integrated linear motors include an anti-collision (child protection) feature that halts motion if an obstruction is detected. Its black finish suits most interiors and the design supports single-display installations.

Suitable for

• Interactive touch screens in classrooms and lecture halls
• Digital signage and presentation displays in corporate or public environments
• Large professional monitors in meeting rooms or training centers

Key specifications

• Compatible screen size: 32"–100"
• Maximum VESA: up to 800 x 600 mm
• Maximum load capacity: 160 kg
• Height adjustment range: 955–1650 mm
• Number of displays supported: 1
• Product colour: Black
• Product weight: 34.9 kg

How to use

Mount the Vivolink VLFS32100W to a suitable solid wall following the manufacturer’s installation instructions and local building codes, ensuring the wall and fixings can support the specified maximum load of 160 kg. Attach the screen using an appropriate VESA-compatible bracket within the 200 x 200 mm to 800 x 600 mm range, connect the power for the linear motors, and test the height adjustment. Use the control interface to raise or lower the display to the desired position; the anti-collision system will stop movement if it detects resistance.

Recommendations

For safe operation, verify wall integrity and fasteners before installation, do not exceed the 160 kg load limit, and perform routine checks of the mounting hardware and motor function. Keep the area around the moving display clear to allow the anti-collision system to operate effectively.
