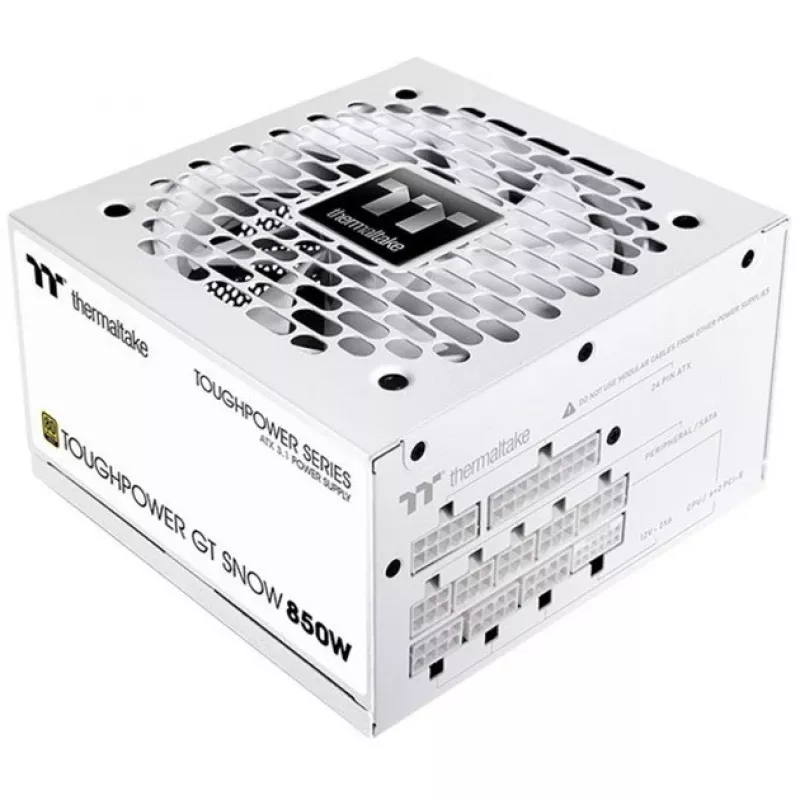

Voeding Thermaltake Toughpower GT 850 W

The Thermaltake Toughpower GT Snow 850 W is a fully modular ATX 3.1-ready power supply unit designed for desktop PCs and servers. It provides 850 W total power, 80 PLUS Gold efficiency, a native PCIe 12V-2x6 (12+4 pin) modular connector for next-generation GPUs, a 120 mm hydraulic bearing fan with Smart Zero Fan functionality, and white low-profile modular cables for easier cable management.

Advantages

The Toughpower GT Snow series delivers high energy efficiency up to 90% certified by 80 PLUS Gold, supports ATX 3.1 power excursion and timing requirements, and includes a PCIe Gen 5.1 (12+4 pin) connector capable of supplying up to 600 W to compatible graphics cards (recommended wattage per Intel guideline). A high-amperage single +12V rail with LLC and DC-to-DC circuitry ensures stable voltage regulation. The unit features industrial-grade protections (OCP, OVP, UVP, OPP, SCP, OTP) and comes with a comprehensive 5-year warranty.

Suitable for

• Gaming PCs with next-generation PCIe 12+4 pin graphics cards
• Workstations requiring stable single +12V rail power
• System builders prioritizing modular cable management and airflow
• Systems needing ATX 3.1 compliance and 80 PLUS Gold efficiency

Key specifications

• Total power: 850 W
• ATX connector: 24-pin ATX
• Efficiency certification: 80 PLUS Gold (up to ~90%)
• PCIe connector: PCIe 12V-2x6 (12+4 pin) modular cable, up to 600 W recommended for compatible GPUs
• Fan: 120 mm hydraulic bearing with Smart Zero Fan
• Cables: fully modular low-profile white cables (included lengths: motherboard cable ~550 mm, SATA cables 150 mm and 450 mm as provided)
• Input voltage/frequency: 100–240 V, 50/60 Hz
• Protections: OCP, OVP, UVP, OPP, SCP, OTP
• Product colour: White
• Certifications: CE, UKCA, ICES, TUV, LVD, RCM, CB, FCC, cTUVus, BSMI, CCC, BIS, S-MARK

How to use

Install the PSU into a compatible ATX chassis and connect the 24-pin ATX motherboard cable and required modular cables for CPU, GPU and storage devices. Use the included PCIe 12+4 pin cable for compatible graphics cards, following the GPU manufacturer's recommended power requirements. Ensure proper ventilation around the 120 mm fan and secure all connectors before powering on the system. Verify AC input matches the local mains (100–240 V) and set any required PSU switches according to your region if present.

Recommendations

Follow GPU manufacturer guidelines when using the PCIe 12+4 pin cable and size your overall system power accordingly; recommended wattage marked on the connector is an estimation and actual system demand may vary with components and usage.
