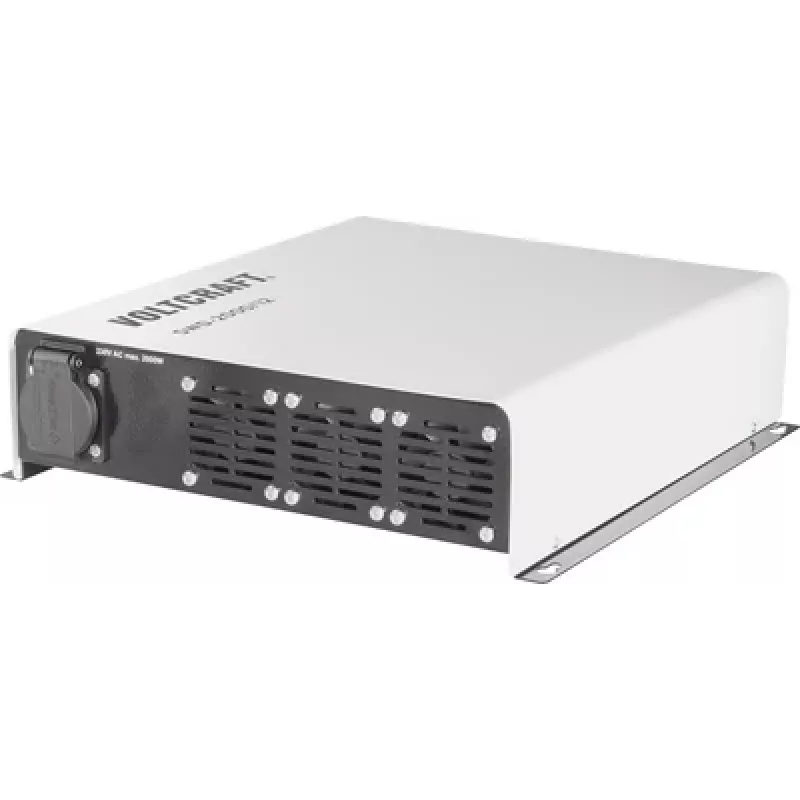

VOLTCRAFT SWD-2000/12 zuivere sinus omvormer 2000 W 12 V DC naar 230 V AC met afstandsbediening

The VOLTCRAFT SWD-2000/12 delivers a continuous 2000 W of pure sine wave AC power from a 12 V DC battery source, with a peak surge capacity of 4000 W for demanding start-up loads. Its pure sine wave output ensures clean, stable power for sensitive electronics, motors, and appliances, making it ideal for mobile, off-grid, and backup power applications.

Overview

This inverter converts 12 V DC input (10.5–15 V DC range) to 230 V AC at 50 Hz with an efficiency greater than 90%. It features a single Schuko AC outlet, screw terminals for secure DC input connection, and a wired remote control for convenient on/off operation from a distance. Built-in protection against overload, short circuit, overvoltage, undervoltage, and overheating ensures reliable performance, while the fan-cooled design maintains optimal operating temperatures.

What stands out

• Pure sine wave output for compatibility with sensitive devices
• High surge capacity: 4000 W for 0.5 seconds
• Wired remote control included for remote operation
• Comprehensive protection features for safe operation
• High efficiency (>90%) minimizes battery drain

Technical details

• Continuous power: 2000 W
• Peak power: 4000 W (0.5 s)
• Input voltage: 12 V DC (range 10.5–15 V DC)
• Output voltage: 230 V AC, 50 Hz
• Output waveform: Pure sine wave
• AC outlets: 1x Schuko socket
• Efficiency: >90%
• No-load current: <0.8 A
• Max output current: 8.7 A
• Input connection: Screw terminals
• Recommended input cable cross-section: 50 mm²
• Cooling: Fan
• Protection: Overload, short circuit, overvoltage, undervoltage, overheating

Our verdict

The VOLTCRAFT SWD-2000/12 is a robust and efficient pure sine wave inverter, well-suited for powering a wide range of AC devices from a 12 V battery. Its high surge capacity and comprehensive protection features make it a reliable choice for mobile and off-grid power needs.
