Vrijstaande rack Extralink EX.14749 27U zwart

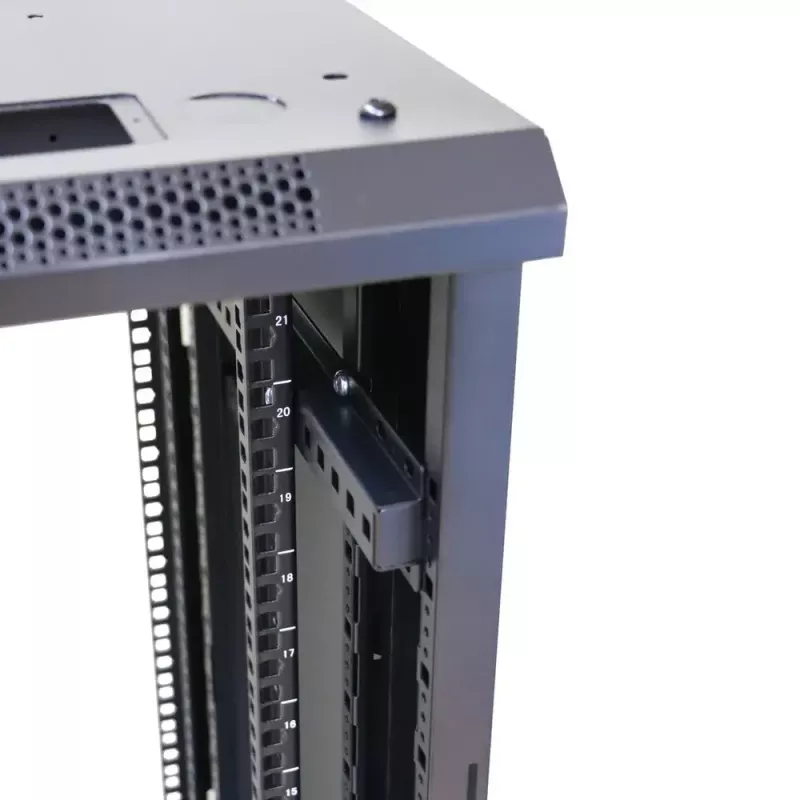

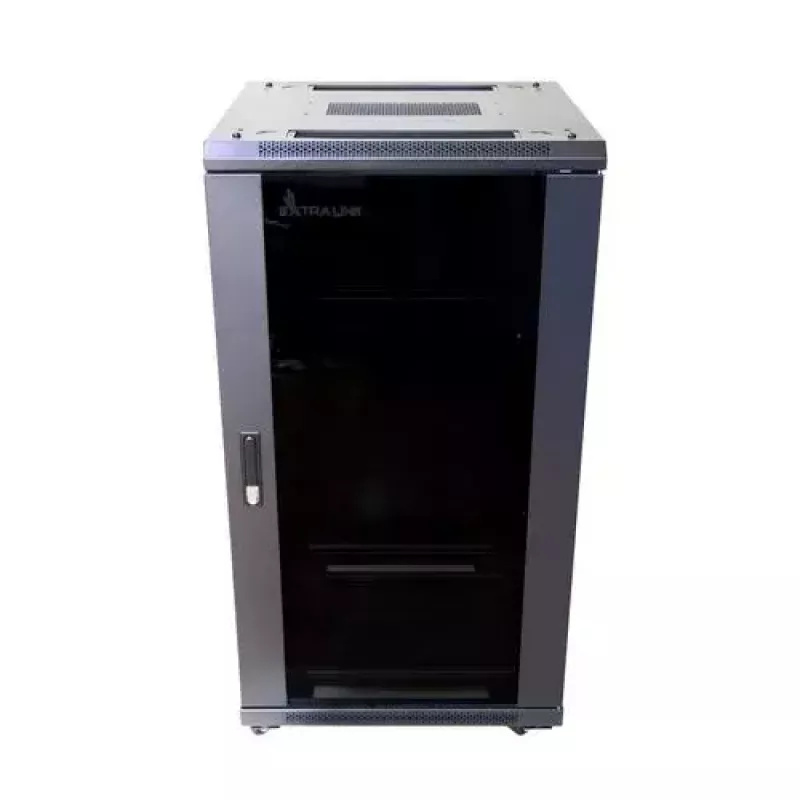

Extralink 27U freestanding rack cabinet with dimensions 600x600 mm is designed for offices, server rooms and CCTV control rooms. The cabinet body is made of cold-rolled steel and the front door features a tempered glass panel that can be hinged to open to the left or right. Vertical rails are clearly marked up to 27U and the total cabinet height is 1320 mm. The rack includes adjustable feet for stable placement, lockable doors with keys, and multiple cable entry points to simplify wiring.

Advantages

The Extralink EX.14749 offers a 27U capacity suitable for mounting server, network and CCTV equipment and supports tidy cable routing via five lower conduits and two additional ceiling ducts. Removable side panels use snap fasteners for simple access during installation or maintenance, while the tempered glass door provides visual access without opening. The cabinet’s steel construction and lockable front door deliver physical protection for installed devices.

Suitable for

• Small and medium office server rooms
• Network closets and patch panel installations
• CCTV control rooms and video recorder racks
• Home lab and compact data center environments

Key specifications

• Rack capacity: 27U
• Height: 1320 mm (total cabinet height)
• Width: 600 mm
• Depth: 600 mm
• Maximum supported equipment mounting standard: 19"
• Product colour: Black
• Construction: Cold-rolled steel body, tempered glass front door

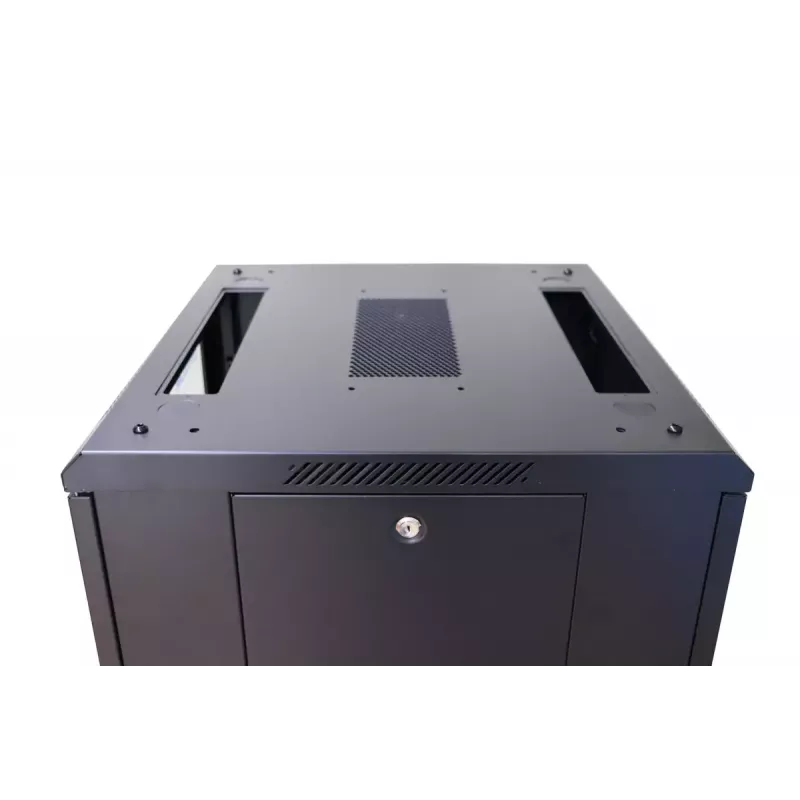

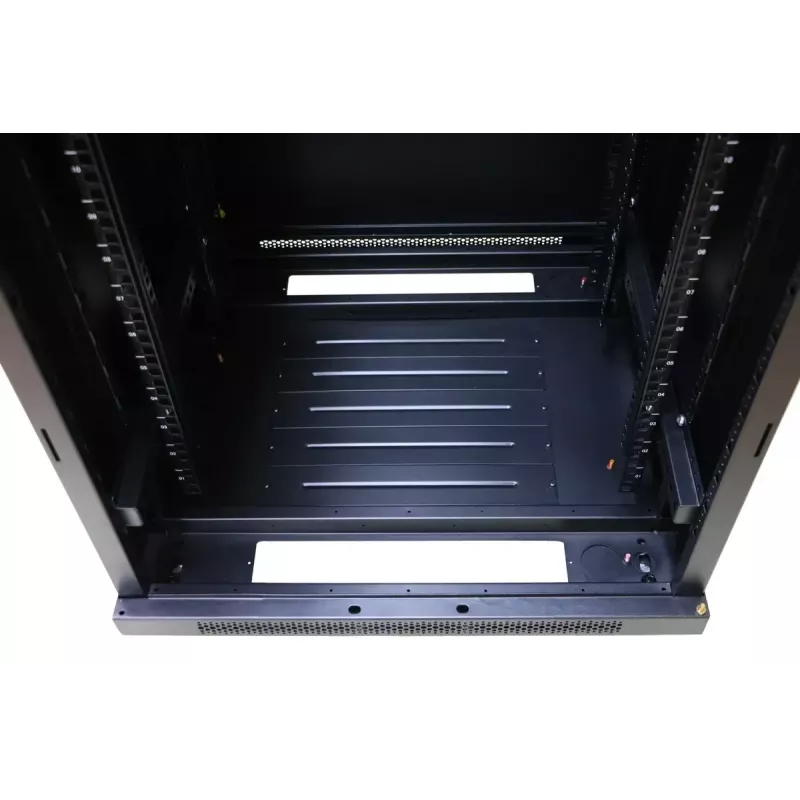

• Cable management: 5 lower conduits, 2 ceiling cable ducts
• Access: Removable side panels with snap fasteners; lock with keys

How to use

Place the rack on a level surface and adjust the feet for stability. Mount 19" equipment to the vertically marked rails according to required U-height, securing devices with appropriate rack screws. Route power and data cables through the lower conduits or ceiling ducts to minimise tangling and strain. Use the removable side panels for easy access when installing or servicing equipment. Lock the front door when access needs to be restricted.

Recommendations

For optimal ventilation and equipment longevity, ensure adequate airflow around the cabinet and avoid exceeding the recommended load per rail; distribute heavy components evenly and leave free U-space for cable management and airflow.
