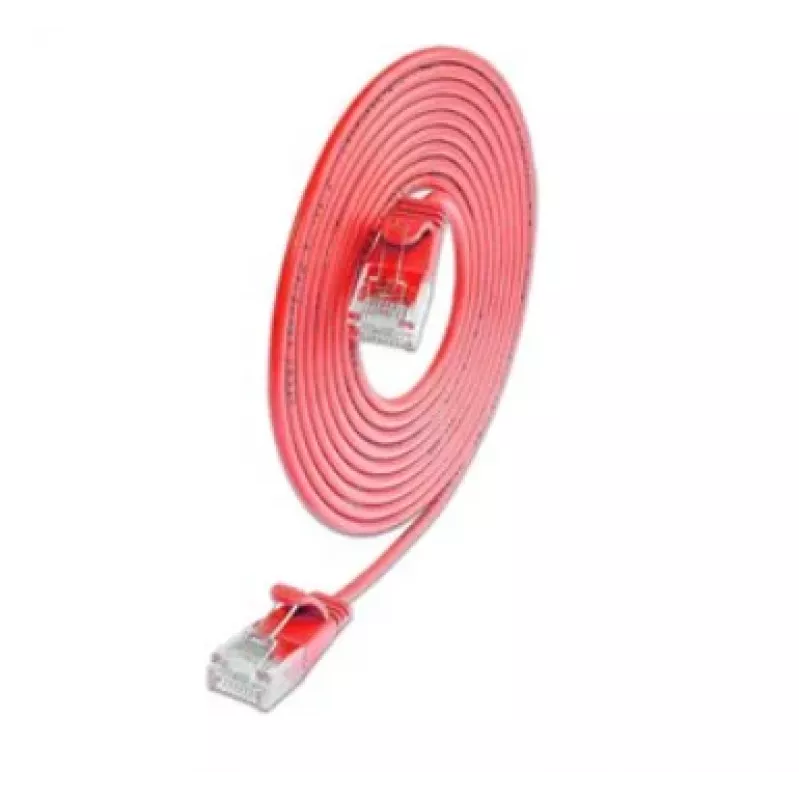

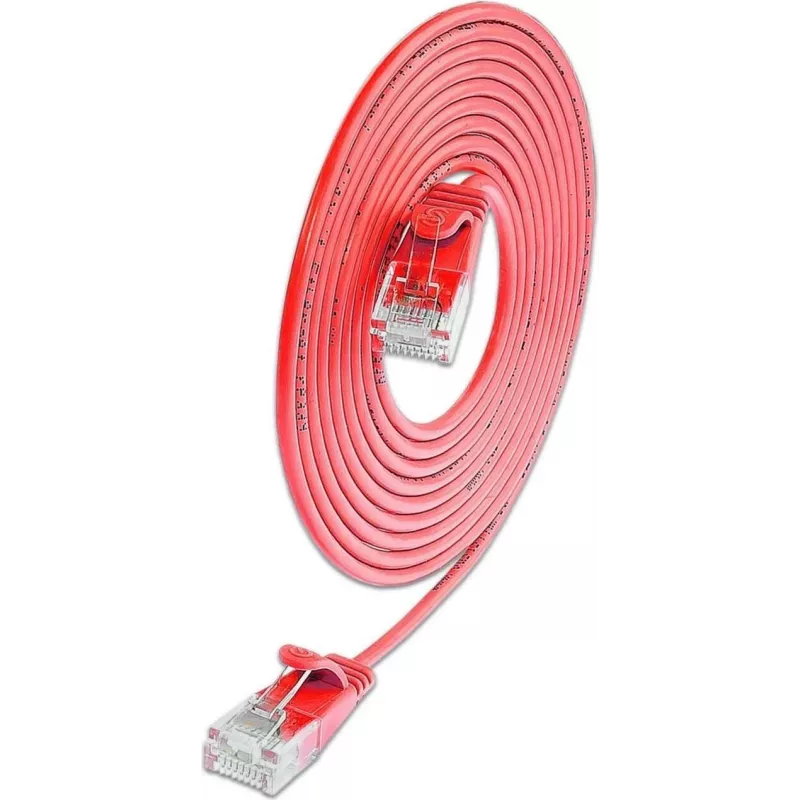

Wirewin SLIM KAT6A 10 Gigabit Light patchkabel rond, U/UTP, Ø 3,6 mm, rood (SLIM-L-UU-K6A 0.1 RD)

10 Gigabit Ethernet over a slim 3.6 mm round patch cable with U/UTP construction and 500 MHz bandwidth, in red.

Overview

The SLIM WIREWINE SLIM KAT6A is a Cat.6A patch cable designed for high-density 10GBASE-T networks. Its 28 AWG stranded copper conductors and LSZH jacket keep the cable flexible and halogen-free, while gold-plated RJ45 connectors ensure reliable contact. At 0.1 m length, it is ideal for short connections in patch panels, switches, and servers.

What stands out

• 10 Gigabit Ethernet support with 500 MHz bandwidth
• Ultra-slim 3.6 mm outer diameter for better airflow and cable management
• U/UTP unshielded twisted pair construction
• LSZH (Low Smoke Zero Halogen) jacket for safety in enclosed spaces
• Gold-plated RJ45 connectors for corrosion resistance
• Supports PoE, PoE+, and PoE++ for power delivery
• Red colour for easy identification

Technical details

• Category: Cat.6A (Augmented Category 6)
• Shielding: U/UTP
• Data Transfer Rate: 10 Gbps
• Bandwidth: 500 MHz
• Length: 0.1 m
• Conductor Material: Copper (Cu)
• AWG: 28
• Outer Diameter: 3.6 mm
• Jacket Material: LSZH
• Connector Type: RJ45 Male (both ends)
• Connector Plating: Gold-plated contacts
• PoE Support: PoE, PoE+, PoE++
• Halogen-free: Yes
• Flame Retardant: Yes
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Our verdict

A high-performance slim Cat.6A patch cable for 10G networks where space is tight and halogen-free materials are required.
