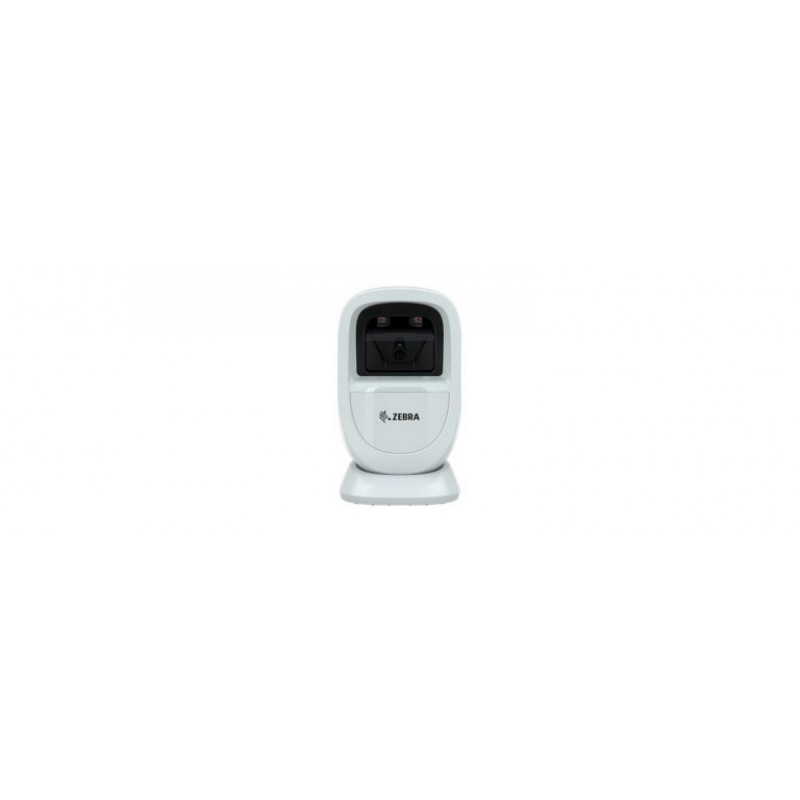

Zebra DS9300 Serie DS9308 - Standard Range (SR)

The Zebra DS9308-SRWU2100AZE is a high-performance 2D barcode scanner from the DS9300 Series, engineered for fast and accurate omnidirectional scanning in retail and hospitality environments. Its powerful 2D imager captures 1D, 2D, and PDF417 barcodes from printed labels or mobile device screens, even if damaged or poorly printed, with a motion tolerance of up to 76.2 cm/sec. This presentation-style scanner features a compact, space-saving design with a black housing, ideal for countertop use. It connects via USB, RS232, Keyboard Wedge, or IBM 468X/9X interfaces, ensuring seamless integration with existing POS systems. The DS9308 is built to withstand daily use, with an IP52 rating against dust and moisture, and can survive drops from 1.5 m onto concrete. Its bright LED indicators and audible beeper provide clear feedback for efficient operation.

Advantages

The DS9308 offers exceptional scanning performance with its omnidirectional 2D imager, eliminating the need to precisely align barcodes. It supports a wide range of symbologies, including 1D, 2D, and PDF417, making it versatile for various applications. The scanner's high motion tolerance ensures rapid scanning of items on a conveyor or in a presentation setup. With multiple connectivity options, it can be easily integrated into different POS systems. The durable design with IP52 rating and 1.5 m drop resistance reduces downtime and maintenance costs. Additionally, the scanner's compact footprint saves valuable counter space, and its black colour blends seamlessly into professional environments.

Suitable for

• Retail point-of-sale checkout counters
• Hospitality and food service order entry
• Pharmacy and healthcare prescription verification
• Convenience stores and small businesses
• Ticket scanning at events and transportation
• Warehouse and inventory management (presentation scanning)
• Loyalty program and coupon scanning
• Mobile coupon and digital wallet scanning

Key specifications

• Scan Technology: 2D Imager
• Scan Pattern: Omnidirectional
• Decode Capabilities: 1D, 2D, PDF417
• Connectivity: USB, RS232, Keyboard Wedge, TGCS (IBM) 468X/9X
• Drop Specification: 1.5 m (5 ft) to concrete
• IP Rating: IP52
• Colour: Black
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 95% non-condensing
• Light Source: Aiming Pattern: circular 617 nm amber LED; Illumination: 660 nm red LED
• Field of View: 48° H x 30.7° V nominal
• Minimum Print Contrast: 15% MRD
• Motion Tolerance: Up to 76.2 cm/sec (30 in./sec) for 13 mil UPC
• Power Input: 5 VDC +/- 10%
• Current Consumption: 360 mA (typical)
• Mounting Type: Desktop / Presentation
• Scan Range: Standard Range (SR)
• Indicator: Beeper, good decode LED

Recommendations

For businesses seeking a reliable, high-speed presentation scanner that can handle both printed and mobile barcodes, the Zebra DS9308 is an excellent choice. Its robust construction and flexible connectivity make it a long-term investment for any retail or hospitality operation. Consider pairing it with a sturdy stand (sold separately) for hands-free scanning. Ensure your POS system supports the selected interface (USB, RS232, etc.) for seamless integration. Regularly clean the scanner window to maintain optimal performance.
