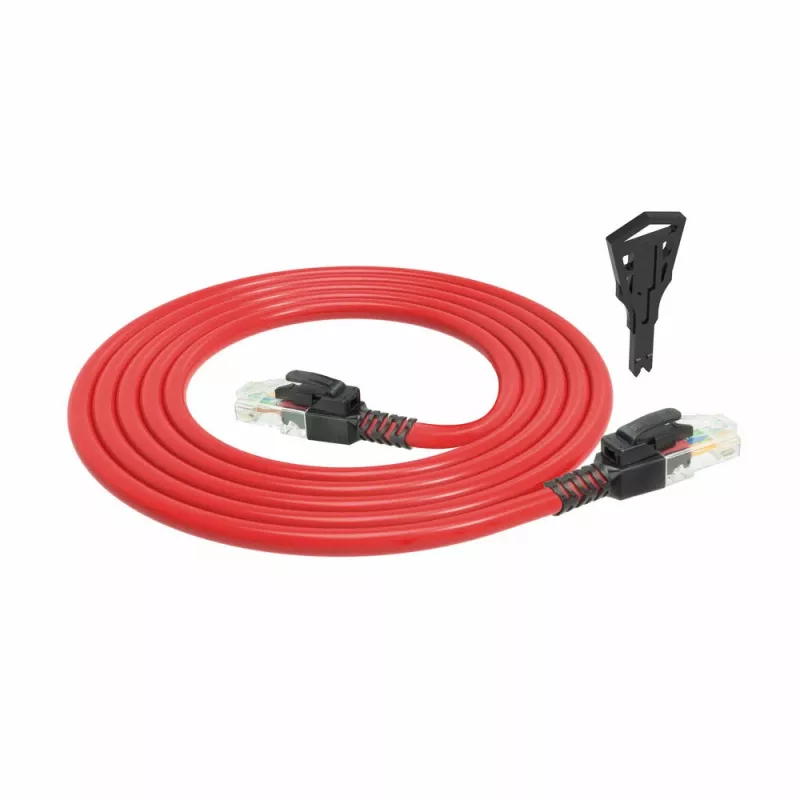

ACT rood 2 meter U/UTP CAT6A LSZH vergrendelbare patchkabel, rastnasenfrei met RJ45-stekkers

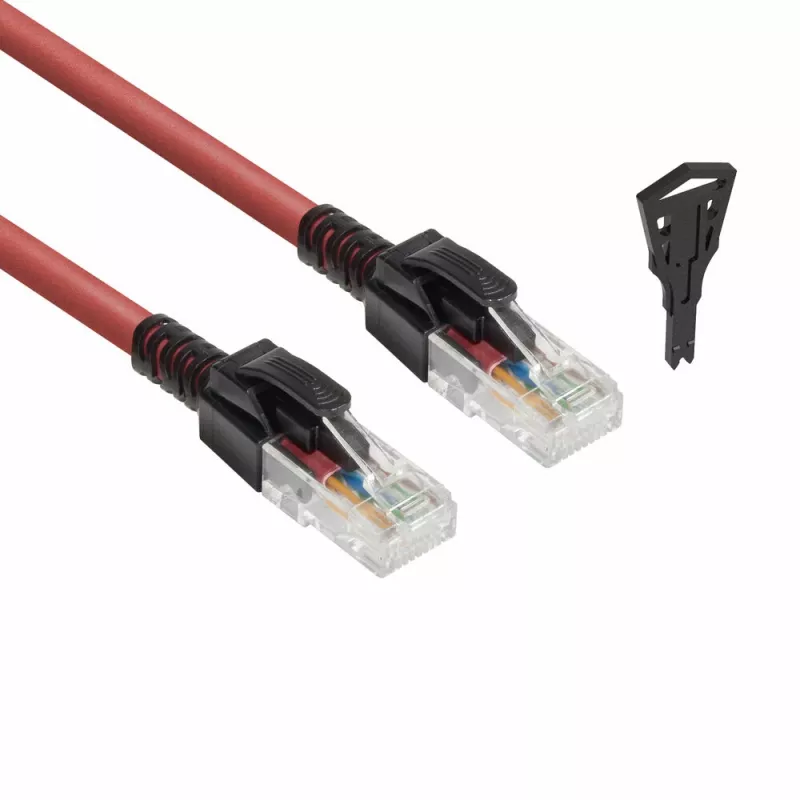

The ACT Red 2m RJ45 Cat6A U/UTP patch cable is a 2‑metre, LSZH-sheathed network cable with lockable RJ45 connectors, designed for reliable high-speed connections up to 10 Gbps in servers, switches, wall outlets and POS terminals. The cable features full copper 24AWG conductors and 50 µin gold-plated contacts and complies with ANSI/TIA-568.2-D.

Advantages

Lockable RJ45 connectors prevent accidental disconnection while remaining easy to use with a supplied extraction tool for unlocking. The LSZH jacket reduces smoke and halogen emission in case of fire. Full copper 24AWG conductors and gold-plated contacts lower signal loss and ensure compliance with Cat6A performance requirements. The red colour helps with cable identification and organisation.

Suitable for

Key specifications

How to use

Insert the lockable RJ45 connector into the device port until it clicks to secure the connection. To remove the cable, use the supplied extraction tool to release the lock before pulling out the connector. Use the cable for typical Ethernet connections supporting up to 10 Gbps over Cat6A infrastructure.

Recommendations

Route and secure the cable to avoid excessive bending or strain; maintain the minimum bend radius recommended for Cat6A cables. Use the red colour to mark or separate critical links and replace any damaged cable to preserve LSZH and performance properties.
