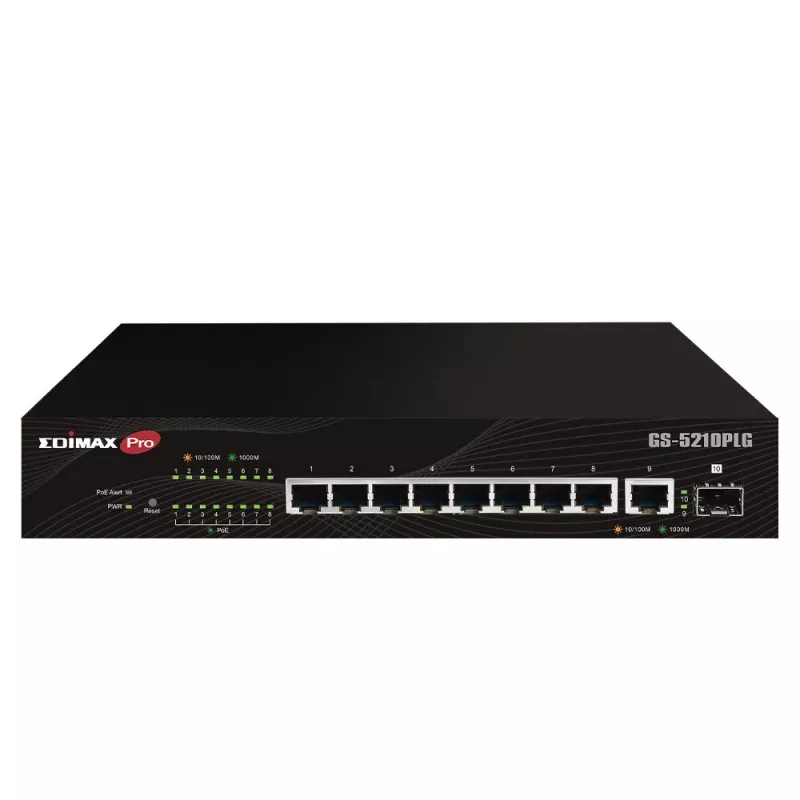

Managed switch Edimax GS-5210PLG 8 poorten Gigabit Ethernet PoE zwart

The Edimax GS-5210PLG is an 8-port managed Gigabit Ethernet switch with PoE+ and long-range capability, designed for expanding and managing small to medium business networks. It supports PoE long range up to 200 m (656 ft.), has flexible uplink options including one RJ45 and one SFP fiber port, and provides management features such as VLAN, QoS, IGMP snooping and link aggregation for reliable data transfer and surveillance deployments.

Advantages

The switch offers guaranteed PoE long-range transmission to 200 m, reducing the need for additional extenders in surveillance and remote-device installations. Each port includes power backfeed protection to prevent damage from non-standard PSEs. Web-based smart management provides QoS, 802.1Q VLAN, port trunking, port mirroring, IGMP snooping v1/v2/v3 and broadcast storm control. Fiber and copper uplink options enable flexible deployment in branch, retail or remote workgroup environments.

Suitable for

• IP camera systems and video surveillance requiring long-range PoE
• Small to medium business network edge and branch connections
• Retail and remote workgroup installations with fiber or copper uplinks
• Environments needing VLAN segmentation, QoS and multicast optimization

Key specifications

• Model: Edimax GS-5210PLG (MPN: GS-5210PLG, EAN: 4717964704771)
• Ports: 8 x Gigabit Ethernet (10/100/1000) with PoE+
• Uplinks: 1 x RJ45, 1 x SFP fiber
• PoE long range: up to 200 m (656 ft.)
• Standards: IEEE 802.3af/at, 802.1Q, 802.1p, 802.3ad, 802.3x, 802.3az and related Ethernet standards
• Switching capacity: 20 Gbit/s
• MAC address table: 4000 entries
• Product colour: Black
• Weight: 1.62 kg

How to use

Install the GS-5210PLG on a stable surface or in a rack using compatible mounting hardware. Connect powered devices (IP cameras, access points, VoIP phones) to the Gigabit PoE ports; the switch supplies PoE+ and supports long-range delivery up to 200 m when required. Use the RJ45 or SFP uplink to connect to the core network or another switch. Access the web-based management interface to configure VLANs, QoS, IGMP snooping, link aggregation and other settings according to your network design.

Recommendations

For surveillance deployments, verify cable quality and termination to achieve reliable PoE long-range performance. Enable PoE power backfeed protection and configure broadcast storm control and loop detection to maintain network stability. Use VLANs and QoS to prioritize video streams and critical traffic.
