ACT USB-C 4K dockingstation voor 1 HDMI-monitor, Ethernet, USB-C, USB-A, kaartlezer en PD-doorgifte

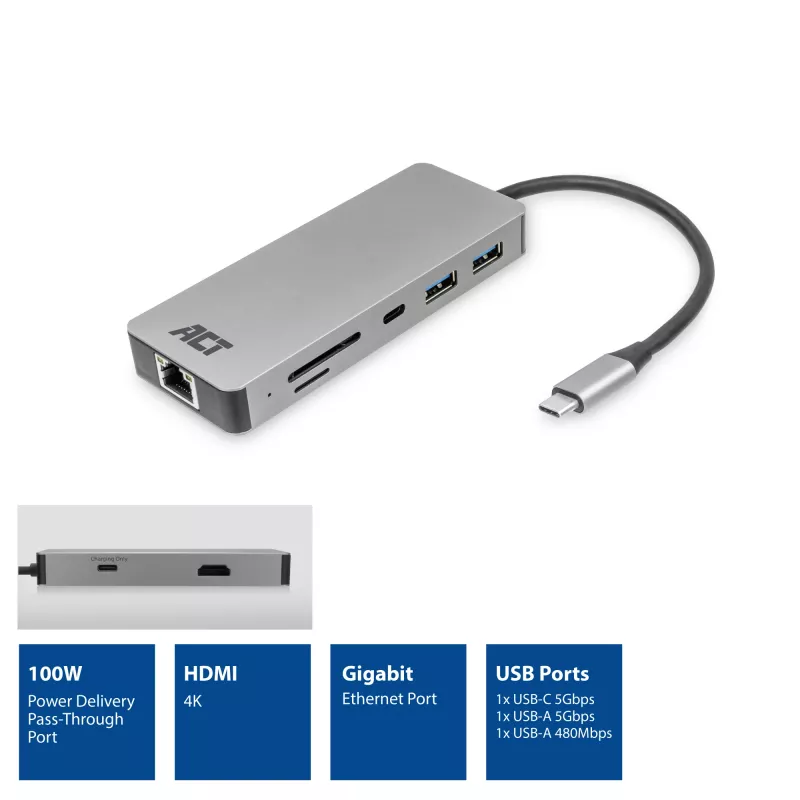

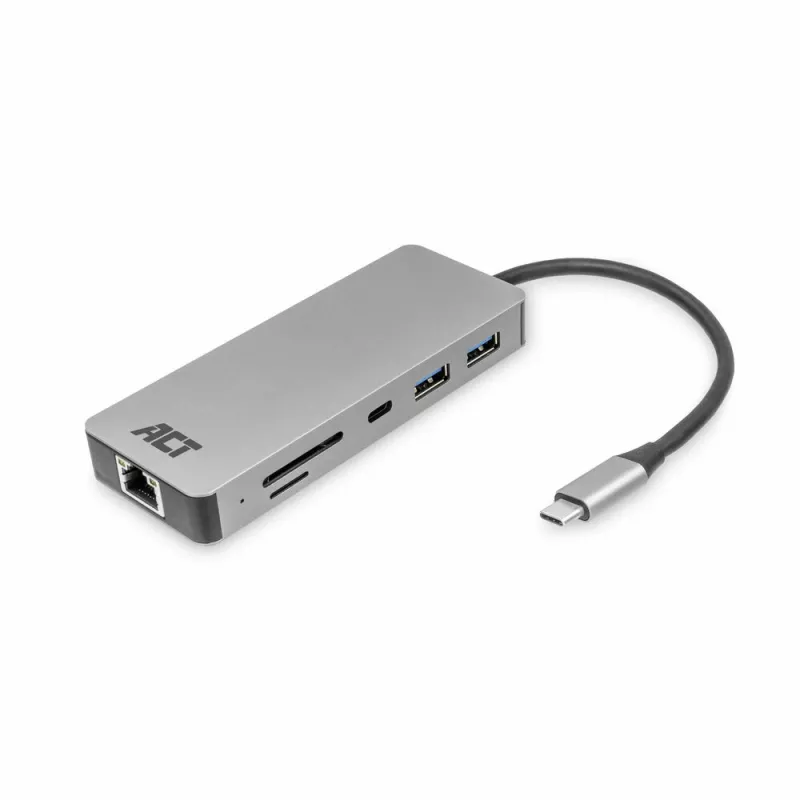

The ACT AC7092 USB-C 4K HDMI Ethernet USB-A Card Reader is a compact 7-in-1 docking station that expands a laptop’s connectivity. It provides a single HDMI output supporting up to 4K@30Hz, Gigabit Ethernet for wired network access, multiple USB ports including USB-A 2.0, USB-A 3.0 and USB-C 3.0, and an integrated SD / MicroSD card reader. The docking station features a durable aluminium housing and is designed for portable use in a laptop bag.

Advantages

The AC7092 converts a single USB-C port into a workstation-ready hub with video output, high-speed data transfer and wired LAN. USB 3.0 ports deliver SuperSpeed transfer rates up to 5 Gbps for external SSDs and drives, while the USB-A 2.0 port supports peripherals such as keyboard and mouse receivers. The HDMI port enables connection to an external monitor at up to 4K@30Hz, and the Gigabit Ethernet port offers reliable network access. A USB-C Power Delivery pass-through allows charging the laptop while using the dock.

Suitable for

• Connecting a single external monitor up to 4K@30Hz via HDMI

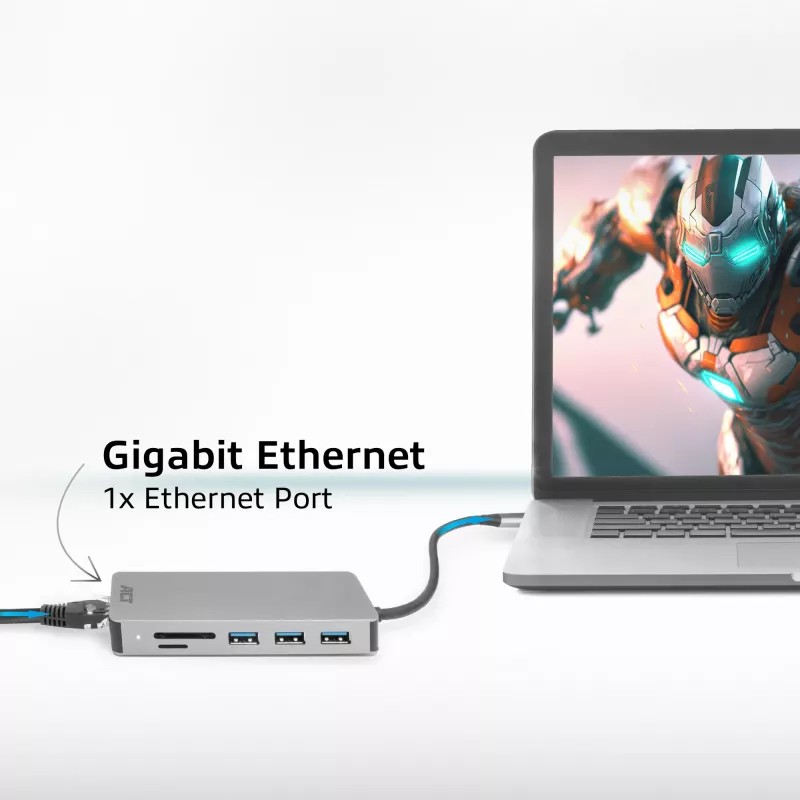

• Wired network access in offices or environments requiring Gigabit Ethernet
• Attaching USB peripherals such as keyboards, mice and external drives
• Reading SD and MicroSD memory cards from cameras and mobile devices
• Portable workstation setup for travel or hot-desk use

Key specifications

• Model: ACT AC7092

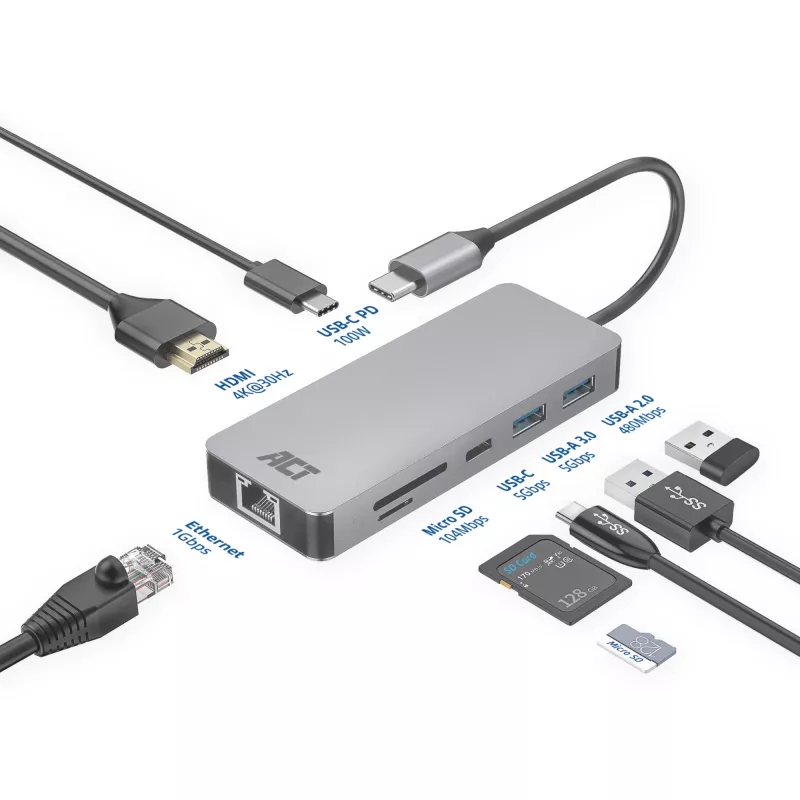

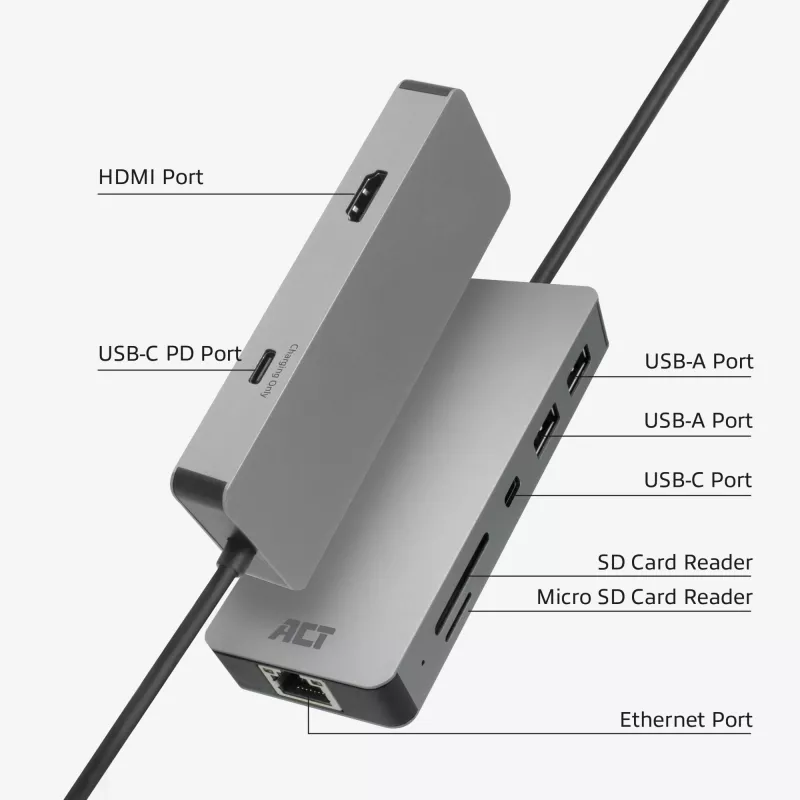

• Ports: 1× HDMI (up to 4K@30Hz), 1× RJ-45 Gigabit Ethernet, 1× USB-C 3.0, 1× USB-A 3.0, 1× USB-A 2.0, SD and MicroSD card reader
• USB: USB 3.2 Gen 1 (3.1 Gen 1) SuperSpeed 5 Gbps on 3.0 ports
• Power: USB-C Power Delivery pass-through (uses laptop’s USB-C power supply)
• Colour / Material: Aluminium

How to use

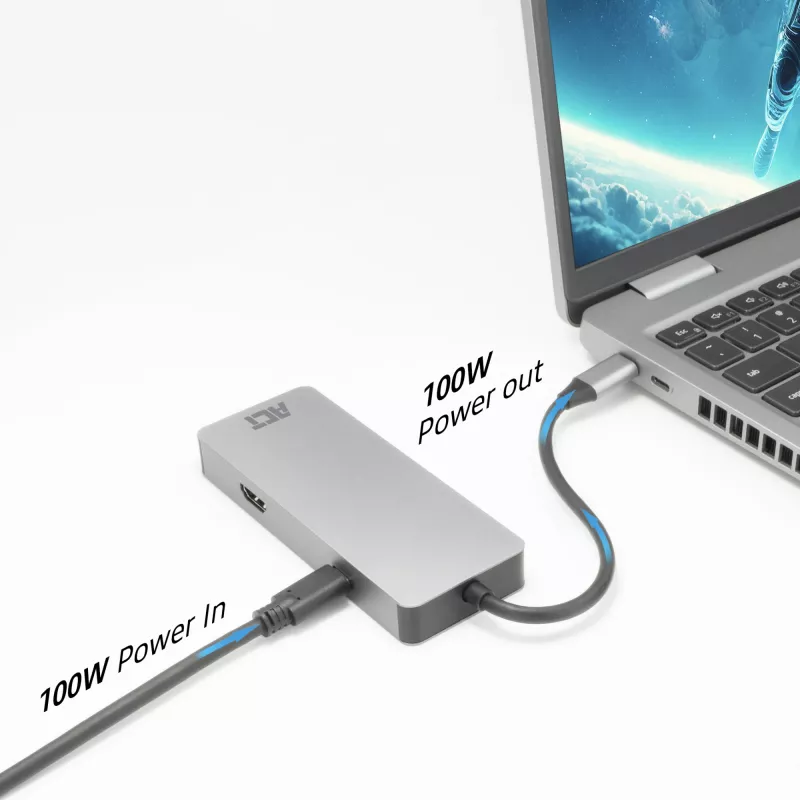

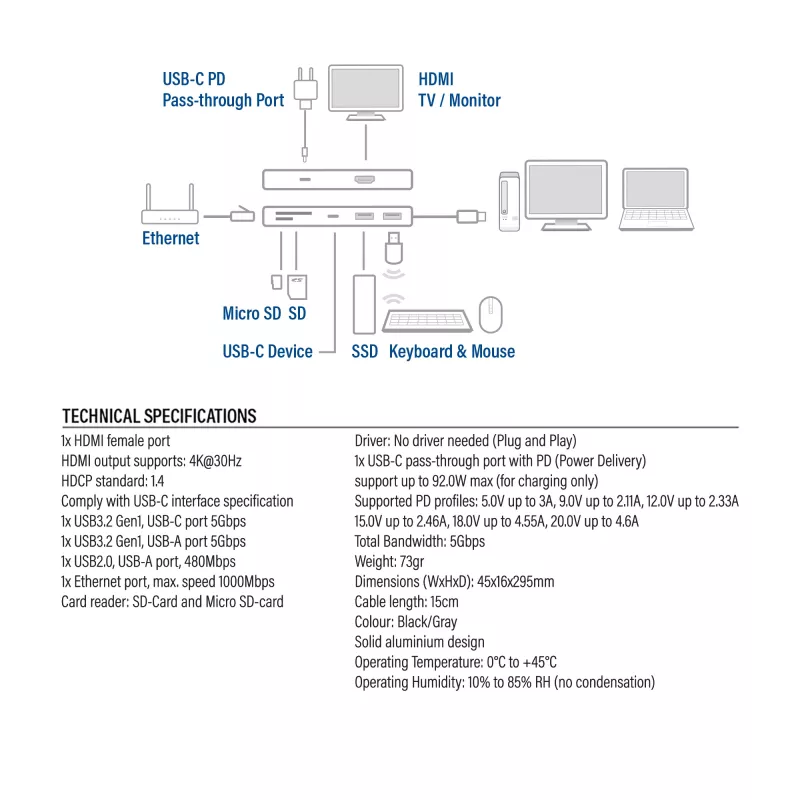

Connect the AC7092 to a laptop USB-C port that supports data and video. Attach an external display to the HDMI port and connect the Ethernet cable for wired network access. Plug USB devices into the appropriate USB-A or USB-C ports and insert SD or MicroSD cards into the card reader. To charge the laptop while using the dock, connect the laptop’s USB-C power adapter to the dock’s PD pass-through port.

Recommendations

For optimal video performance, use an HDMI cable rated for 4K and ensure the laptop USB-C port supports DisplayPort Alt Mode. If you require sustained high data throughput, connect high-speed storage to a USB 3.0 port and use a Gigabit Ethernet connection for reliable network transfer.
