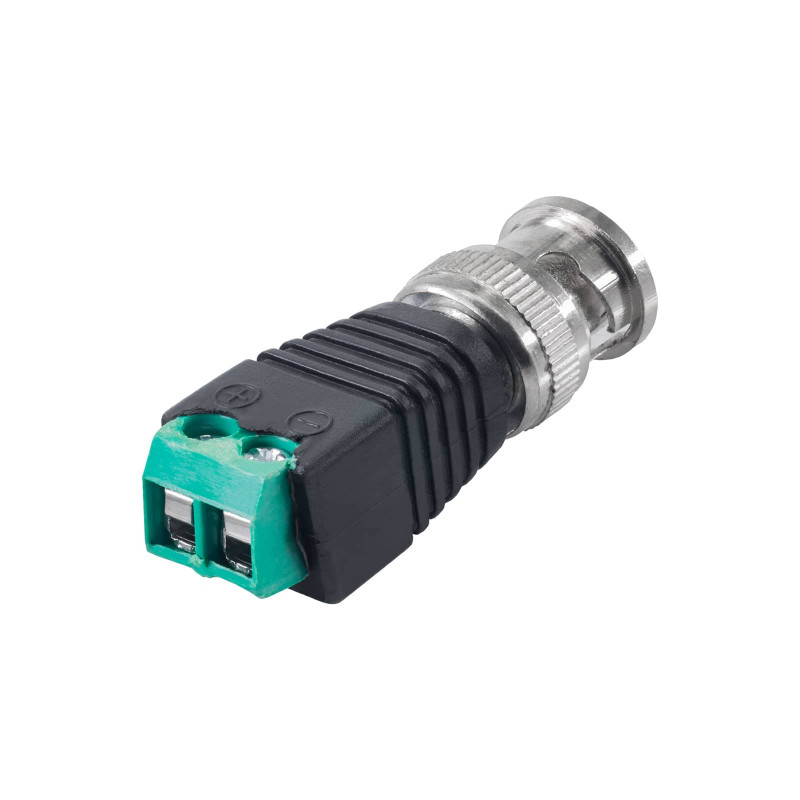

Akyga AK-SC-15 BNC-stekker met schroefklemmen voor UTP-kabel, CCTV

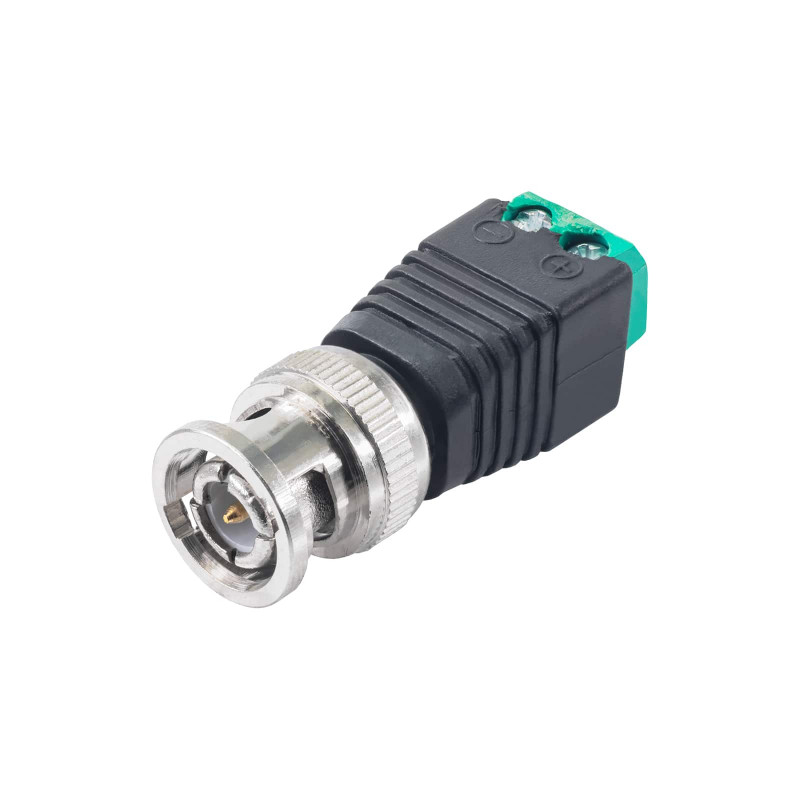

The Akyga AK-SC-15 is a quick connector with a BNC male plug, commonly used in measuring apparatus and TV systems. It features screwed terminals for quick and convenient connection of a UTP cable, with clearly marked "+" and "-" symbols on the top of the insulating casing.

Key features

• BNC male plug
• Screwed terminals for UTP cable connection
• Terminals marked with "+" and "-"
• Twisted 2-pin output connector

Specifications

• Brand: Akyga
• MPN: AK-SC-15
• Product type: Connector
• Output connector: Twisted 2-pin
• Cable plug #1: BNC Male
• Product size (L x W x H): 40 x 13 x 13 mm
• Net weight: 10 g
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720134394
