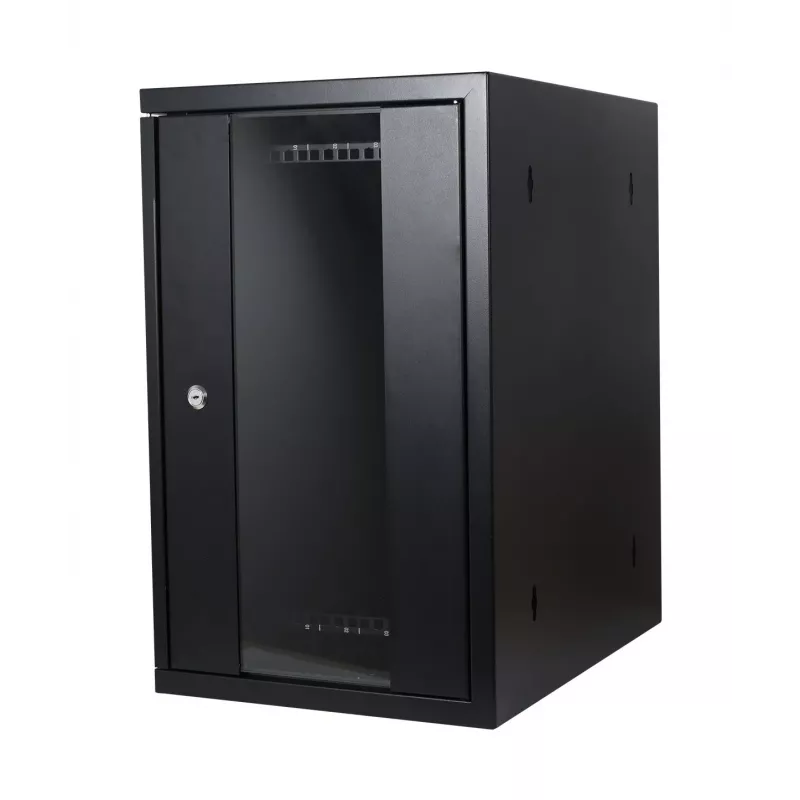

ALLNET 19 inch wandbehuizing verticaal T370 Zwart SMH-serie

For installations where floor space is at a premium, this ALLNET SMH-series cabinet flips the script by mounting vertically on the wall, keeping a full 19-inch rack environment at eye level and out of the way. The T370 depth is carefully chosen to house network switches, patch panels, and shallow servers without wasting room, while the welded steel frame and lockable glass door bring a level of physical security often missing in open-frame brackets. Compared to standard 600x600mm wall boxes, the 600x600mm footprint here feels more balanced, and the 370mm depth is the real differentiator: deep enough for cable management, shallow enough to keep corridors clear.

Highlights

• Vertical wall-mount design saves floor space and keeps equipment accessible
• 19-inch standard with two depth-adjustable mounting rails
• Lockable safety glass door protects against unauthorized access
• Welded steel frame with black RAL 9005 powder coating
• Top and bottom cable entry with brush strips for clean routing
• Passive ventilation with option to add a fan unit
• 60 kg load capacity supports switches, patch panels, and small servers

In daily use

Mounting the cabinet is straightforward thanks to the included hardware, and the vertical orientation means you can place it in a hallway, office, or even a small IT closet without blocking movement. The glass door lets you monitor LED status lights at a glance, and the key set keeps casual tampering at bay. Cable management is simplified by the brush strips at top and bottom, which keep bundles tidy while allowing easy rerouting. The passive ventilation is sufficient for most low-power equipment, but the prepared cutout means adding a fan unit later is a simple upgrade if thermal loads increase.

Full specifications

• Rack standard: 19 inch
• Mounting type: Wall mount, vertical orientation
• External dimensions (W x H x D): 600 x 600 x 370 mm
• Usable depth: approx. 350 mm
• Colour: Black (RAL 9005)
• Material: Steel sheet, welded frame
• Protection class: IP20
• Load capacity: 60 kg
• Front door: Lockable safety glass
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, prepared for fan unit
• Mounting rails: 2x 19" depth-adjustable
• Series: SMH-Series
• Included accessories: Key set, mounting hardware

Final note

The ALLNET SMH6505 vertical wall cabinet is a smart choice for compact IT spaces, combining security, accessibility, and a shallow profile that keeps hallways clear.
