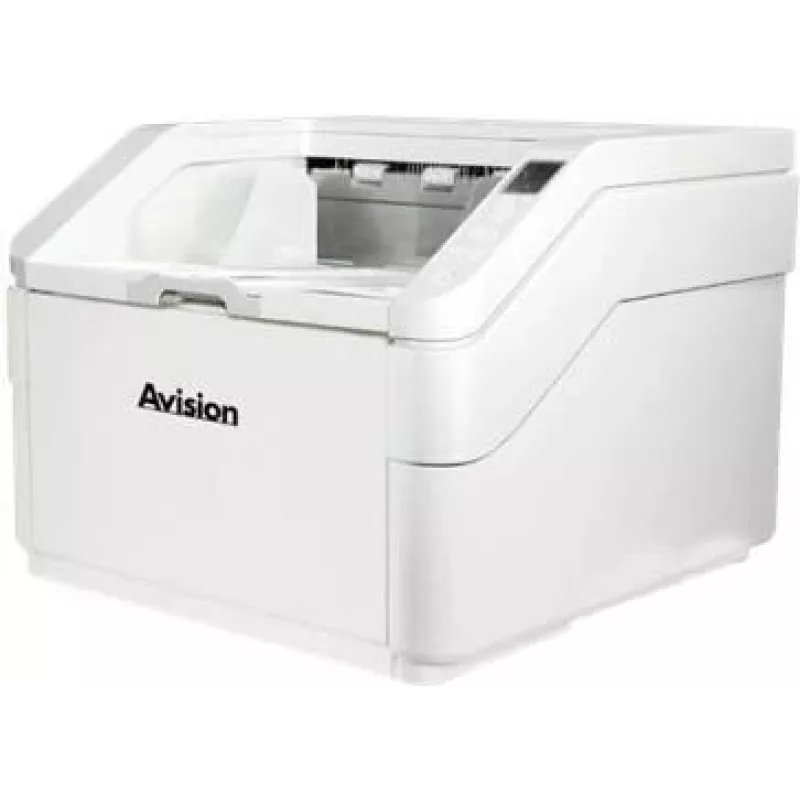

Avision AD8120P A3 duplex-documentscanner, 130 ppm, 500-vel ADF, USB 3.1

Scan up to 130 pages per minute in monochrome or colour with the Avision AD8120P, a high-volume A3 duplex document scanner built for demanding workflows. Its 500-sheet automatic document feeder and 100,000-scan daily duty cycle keep large jobs moving without interruption.

Overview

The AD8120P uses Contact Image Sensor (CIS) technology to deliver 600 x 600 dpi optical resolution. Duplex scanning captures both sides in a single pass at 260 images per minute. A USB 3.1 Gen 1 interface ensures fast data transfer to your PC.

What stands out

• 130 ppm scan speed (A4, 200 dpi, portrait)
• 500-sheet ADF for unattended batch scanning
• Handles documents from 50 x 50 mm up to A3 (297 x 420 mm)
• Supports paper weights from 28 to 413 g/m²
• LED light source for instant-on scanning and low power consumption

Technical details

• Scanner type: Sheet-fed document scanner
• Sensor type: Contact Image Sensor (CIS)
• Scanning mode: Duplex
• Optical resolution: 600 x 600 dpi
• Scan speed (monochrome): 130 ppm / 260 ipm
• Scan speed (colour): 130 ppm / 260 ipm
• ADF capacity: 500 sheets
• Daily duty cycle: 100,000 scans
• Connectivity: USB 3.1 Gen 1
• Output formats: TIFF, JPEG, PDF, Searchable PDF, BMP, PNG
• Colour depth: 48-bit internal / 24-bit external
• Grayscale depth: 16-bit internal / 8-bit external
• Drivers: TWAIN, ISIS, WIA
• Power consumption (operating): 80 W
• Power consumption (standby): 3.5 W
• Supported OS: Windows 7/8/10/11

Our verdict

The Avision AD8120P is a workhorse for centralised scanning operations, combining high speed, large ADF capacity, and a robust duty cycle in a single device.
