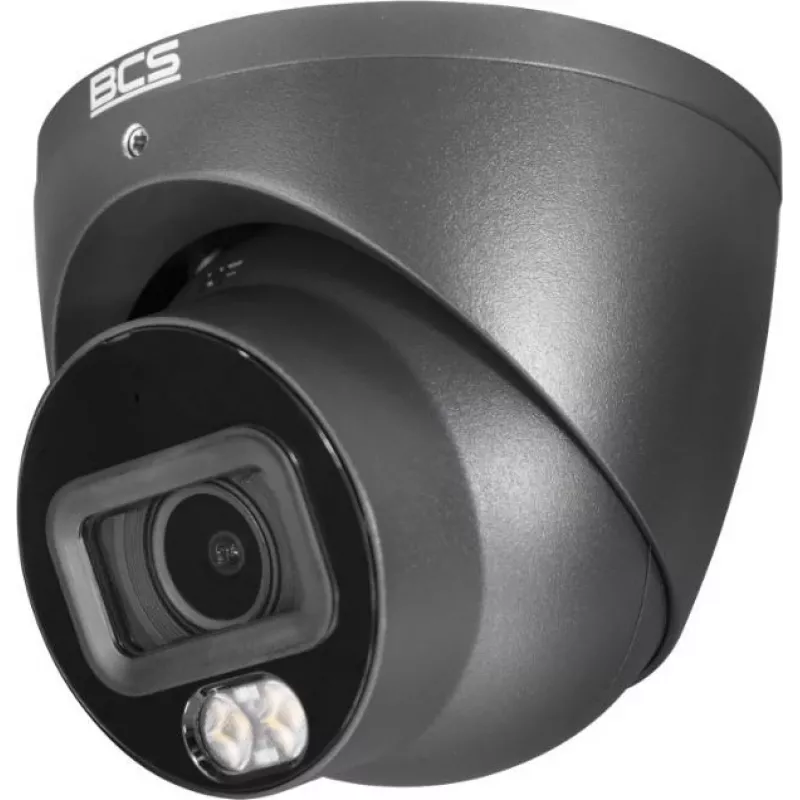

BCS 8MP IP Dome Camera 2,8mm Lens AI Perimeter Protection

The BCS-L-EIP28FCR3L3-AI1-G(2) is a high-performance 8-megapixel IP dome camera designed for professional surveillance. Featuring a 1/2.8" progressive CMOS sensor, it delivers crisp 3840x2160 resolution at 20fps. Equipped with a 2.8mm fixed lens providing a 108° horizontal field of view, this camera is ideal for wide-area monitoring. Advanced AI features include perimeter protection (intrusion and tripwire detection), face detection, and SMD Plus, reducing false alarms. With IP67 weatherproof and IK10 vandal-resistant housing, it is built for harsh environments. True 120dB WDR ensures clear images in challenging lighting. The camera supports H.265+ compression for efficient bandwidth and storage, and includes a built-in microphone for audio capture. Power via DC 12V or PoE (802.3af) with max 6.5W consumption. Local storage up to 256GB via microSD card slot.

Advantages

8MP ultra-high resolution for detailed identification. AI-powered analytics minimize false alerts. Robust metal housing with IP67/IK10 rating for outdoor use. True WDR 120dB for balanced exposure in high-contrast scenes. Flexible power options (DC12V/PoE).

Suitable for

• Perimeter security in commercial and industrial sites
• Retail stores, warehouses, and parking lots
• Critical infrastructure monitoring
• Outdoor surveillance requiring high detail

Key specifications

• Image Sensor: 1/2.8" 8MP Progressive CMOS
• Max Resolution: 3840x2160 @ 20fps
• Lens: 2.8mm fixed, FOV 108°
• IR Range: Up to 30m
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Audio: Built-in microphone
• Storage: microSD up to 256GB
• Network: 1x RJ45 10/100 Mbps
• Power: DC 12V / PoE (802.3af), max 6.5W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• WDR: 120dB True WDR
• AI Features: Perimeter protection, face detection, SMD Plus
• Operating Temperature: -30°C to +60°C
• Housing Material: Metal

Recommendations

For optimal performance, use a PoE switch or injector (802.3af compliant). Ensure microSD card is rated for continuous recording. Mount at a height of 3-5m for best coverage.
