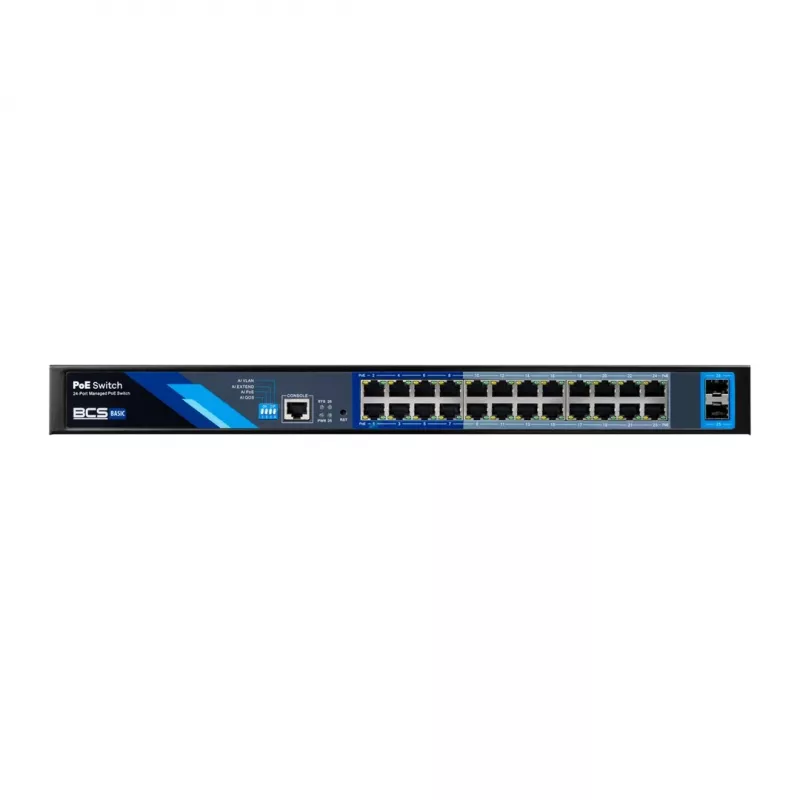

BCS BCS-B-SP24G-2SFP-M 24-poorts Gigabit L2 managed switch met 2 SFP-sleuven

The BCS BCS-B-SP24G-2SFP-M is a high-performance Layer 2 managed switch designed for small to medium-sized businesses. With 24 Gigabit Ethernet ports and 2 SFP fiber slots, it delivers reliable and flexible network connectivity. The switch supports advanced management features including VLAN, QoS, and security protocols, making it ideal for optimizing network performance and ensuring data integrity.

Advantages

This switch offers a robust set of features at an affordable price point. Its 52 Gbps switching capacity and 38.68 Mpps forwarding rate ensure smooth data flow even under heavy loads. The 2 SFP slots provide fiber uplink options for extended distances. Energy-efficient design with low power consumption (15W max) reduces operational costs. Rack-mountable 1U form factor saves space in server rooms.

Suitable for

• Small to medium business networks requiring reliable switching
• Surveillance systems with multiple IP cameras
• Branch office connectivity with fiber uplinks
• Network segmentation using VLANs

Key specifications

• 24x 10/100/1000 Mbps RJ45 ports
• 2x 1000 Mbps SFP slots
• Switching capacity: 52 Gbps
• Packet forwarding rate: 38.68 Mpps
• MAC address table: 8K entries
• Jumbo frame support up to 9K bytes
• VLAN support: IEEE 802.1Q, port-based, GVRP
• QoS: 802.1p, DSCP, WRR, SP, SWRR
• Security: Port Security, Storm Control, DHCP Snooping, IP-MAC-Port Binding, DoS Protection
• Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON
• Internal power supply: AC 100-240V, 50/60Hz
• Power consumption: 15W max
• Operating temperature: 0°C to 40°C
• Rack-mountable 1U

Recommendations

For optimal performance, use quality Cat5e or Cat6 cabling for copper connections and compatible SFP modules for fiber uplinks. Configure VLANs to segregate traffic and enable QoS for prioritizing critical applications. Regular firmware updates are recommended to maintain security and functionality.
