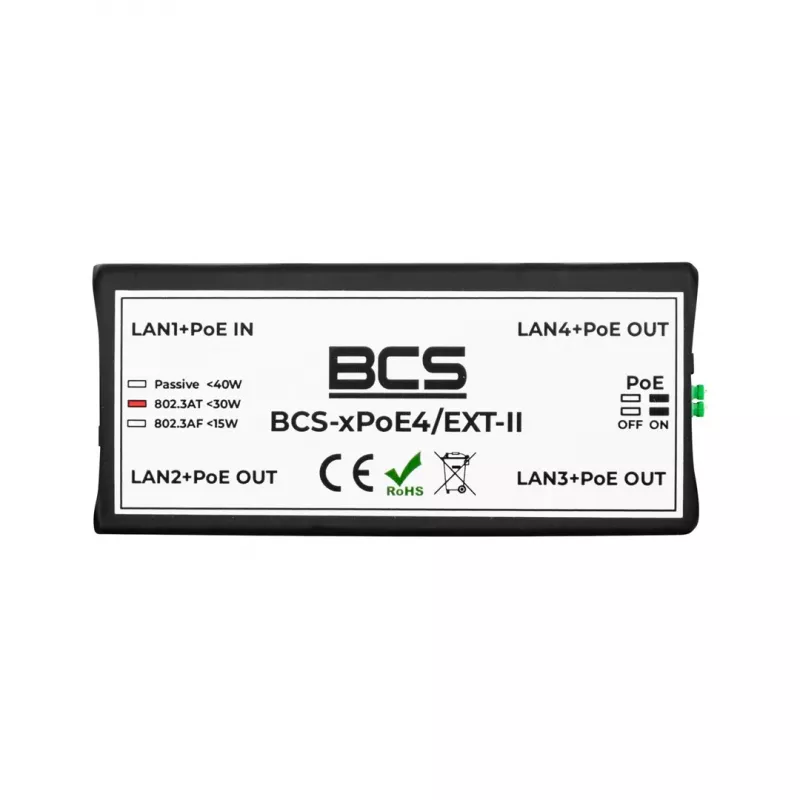

BCS-xPoE4/EXT-II 4-poorts PoE+-switch met 1 uplink-poort, 60W budget, extend-modus tot 250m

The BCS-xPoE4/EXT-II is a compact and robust 4-port PoE+ switch designed for extending network and power to remote devices. With a total PoE budget of 60W and support for IEEE 802.3af/at, it delivers up to 30W per port. The unique Extend mode allows PoE transmission up to 250 meters, making it ideal for surveillance and outdoor installations. Housed in a durable metal enclosure, it supports desktop or wall-mount installation and operates reliably in temperatures from -10°C to +55°C.

Advantages

This switch offers exceptional value for extending network reach without additional cabling. Its Extend mode (VLAN) provides long-distance PoE up to 250m, while Standard mode covers 100m. With surge and ESD protection, it ensures stable operation in demanding environments. The plug-and-play design requires no configuration, and LED indicators simplify monitoring.

Suitable for

• IP cameras and surveillance systems
• Wireless access points
• VoIP phones and IoT devices
• Remote outdoor installations

Key specifications

• 4 PoE+ ports (10/100 Mbps) with 30W per port
• 1 uplink RJ45 port (10/100 Mbps)
• Total PoE budget: 60W
• Extend mode: up to 250m; Standard mode: up to 100m
• Power input: DC 48-57V
• Metal housing, desktop/wall-mount
• Operating temperature: -10°C to +55°C
• LED indicators: Power, Link/Act, PoE Status

Recommendations

For optimal performance, use with compatible PoE devices and ensure adequate ventilation. The Extend mode is recommended for distances beyond 100m but may reduce data rate to 10 Mbps.
