Cimco 187105 halfgeïsoleerde adereindhuls, 0,34 mm², roze, 100 stuks

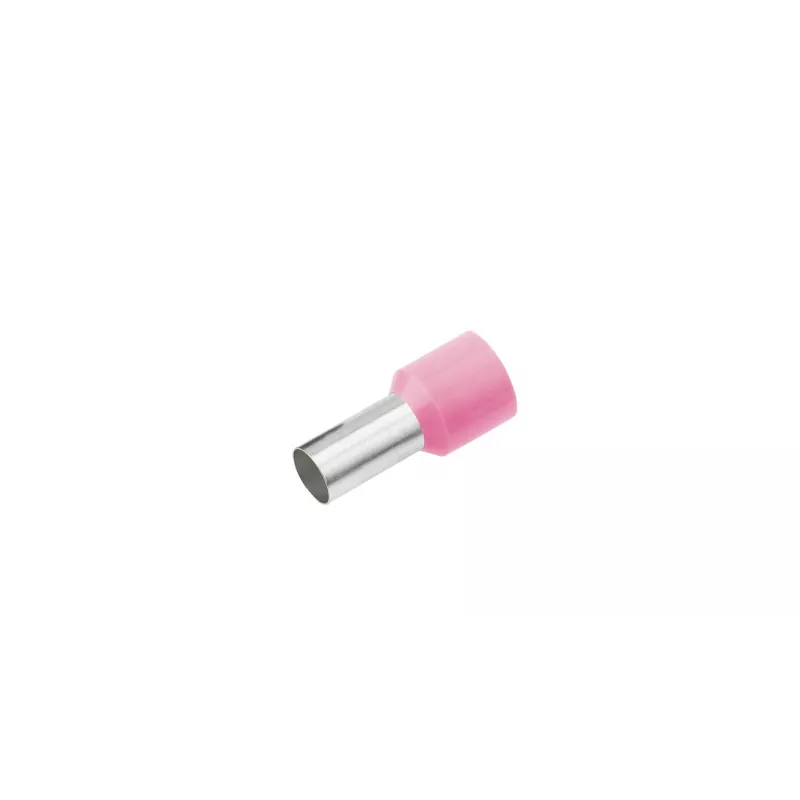

When terminating fine-stranded conductors in screw clamp terminals, individual wire strands can splay or break, leading to poor contact and potential failure. The Cimco 187105 wire end ferrule solves this by bundling the strands into a neat, durable connection. Each ferrule is partially insulated with a pink polypropylene collar that provides strain relief and protects the conductor from bending stress at the entry point.

Who is it for

This ferrule is intended for electricians, panel builders, and maintenance technicians who work with control cabinets, switchgear, and industrial wiring. It is suitable for fine-stranded copper conductors with a cross-section of 0.34 mm², commonly found in signal and control circuits.

Main features

• Partially insulated design with pink polypropylene collar for easy identification and strain relief
• Tin-plated electrolytic copper sleeve ensures low contact resistance and corrosion protection
• Funnel-shaped entry simplifies insertion of fine-stranded conductors
• Pack of 100 pieces for convenient use in production or maintenance
• Complies with DIN 46228 Part 4 for reliable crimping

Specifications

• Conductor cross-section: 0.34 mm²
• Insulation type: partially insulated
• Insulation material: polypropylene (PP)
• Sleeve material: electrolytic copper, tin-plated
• Colour: pink
• Quantity per pack: 100 pieces
• Standard compliance: DIN 46228 Part 4
• Temperature resistance: -40°C to +105°C
• Conductor compatibility: fine-stranded (Class 5 & 6)
• Sleeve length (metallic part): 8 mm
• Total length: 14 mm
• AWG equivalent: approx. AWG 22
• Entry type: funnel-shaped
• Flammability rating: UL 94 V-2 (insulation)
• Application: electrical wiring, control cabinets, switchgear

Tips

Use a crimping tool with a die matching the ferrule size to achieve a secure, gas-tight connection. Strip the conductor to the length of the metallic sleeve plus 1 mm to ensure the insulation collar grips the wire properly.
