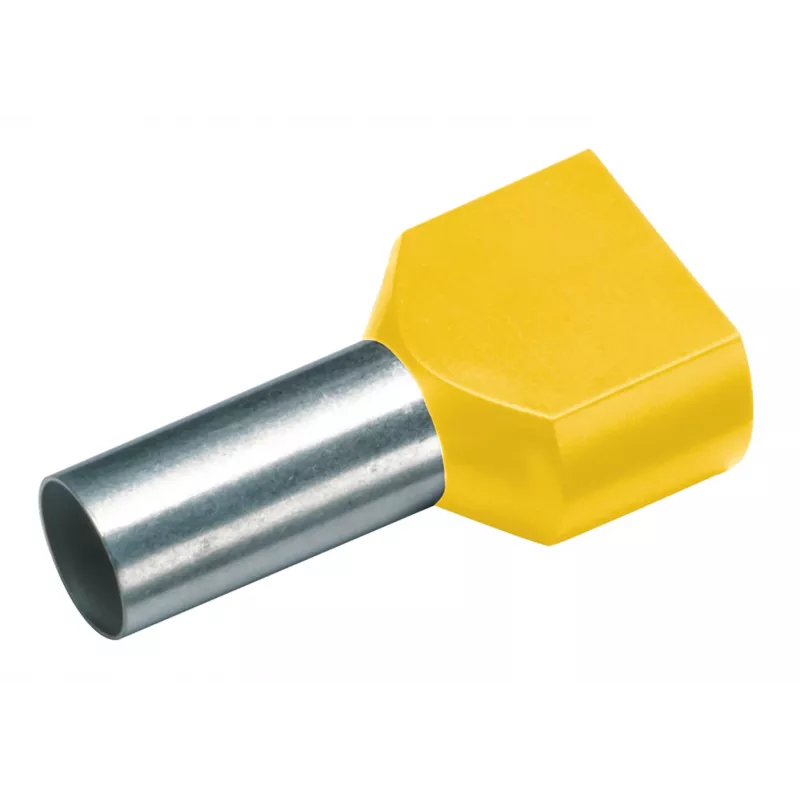

Cimco 187712 dubbele adereindhuls 6 mm² deels geïsoleerd geel (100 stk.)

For reliable connections in fine-stranded copper conductors, this twin wire end sleeve handles two wires with a combined cross-section of 6 mm². The tin-plated electrolytic copper sleeve ensures low contact resistance and excellent corrosion protection, while the funnel-shaped entry simplifies insertion of both conductors.

Overview

Partially insulated design with a yellow polypropylene collar provides strain relief and protection against bending at the crimp point. The sleeve length of 12 mm and total length of 20 mm offer ample space for a secure crimp. Each pack contains 100 pieces, ready for use in control cabinets, terminal blocks, and industrial wiring.

What stands out

• Yellow insulation colour for quick identification of 6 mm² size
• Funnel-shaped wire entry speeds up assembly
• Tin-plated copper construction for durable, low-resistance connections
• Complies with DIN 46228 Part 4 for consistent quality

Technical details

• Product type: Twin wire end sleeve (ferrule)
• Nominal cross-section: 6 mm² (for two wires)
• Insulation type: Partially insulated
• Insulation material: Polypropylene (PP)
• Insulation colour: Yellow
• Conductor material: Electrolytic copper, tin-plated
• Connection method: Crimp
• Suitable for: Fine-stranded copper conductors
• Total length (L1): 20 mm
• Sleeve length (L2): 12 mm
• Temperature range: -40 °C to +105 °C
• Standard compliance: DIN 46228 Part 4
• Flammability rating (insulation): UL 94 V-2
• Pack quantity: 100 pieces

Our verdict

A dependable choice for professional wiring tasks, offering easy handling and consistent crimp results.
