DeLOCK adapter SMA male naar SMA female C6801 stekkertype SMA

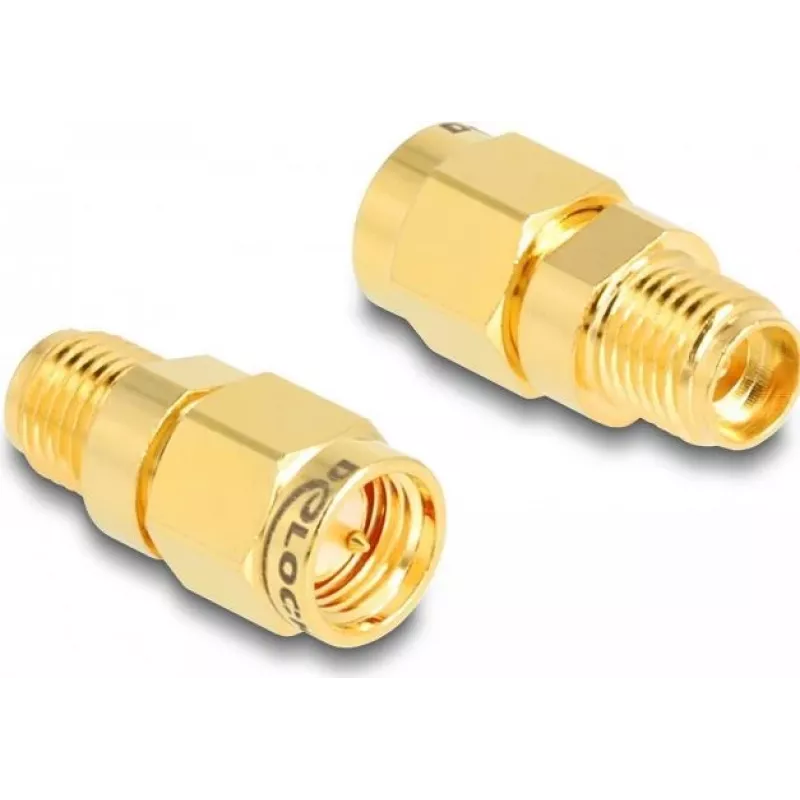

The DeLOCK Adapter SMA male to SMA female C6801 is designed to connect components in radio frequency systems. It provides an SMA plug on one side and an SMA jack on the other, enabling connection between SMA cables and devices while maintaining reliable signal transmission. The compact adapter has a gold-coloured finish and small dimensions suitable for tight installation spaces.

Advantages

The adapter offers a compact form factor (9 mm × 18.1 mm × 9 mm) and standard SMA gender conversion, ensuring mechanical compatibility with SMA connectors. The gold-coloured finish supports corrosion resistance and consistent electrical contact. Its simple, pass-through design does not require additional tools for connection.

Suitable for

• Connecting SMA-terminated RF cables
• Adapting between devices and antennas with SMA interfaces
• Use in lab setups, test benches, and installations with limited space

Key specifications

• Brand: DELOCK
• Model / MPN: 12104
• EAN: 4043619121045
• Connector 1: SMA plug (male)
• Connector 2: SMA jack (female)
• Product colour: Gold
• Dimensions (W × D × H): 9 mm × 18.1 mm × 9 mm

How to use

Align the SMA plug with the SMA jack of the cable or device, then gently push and screw if applicable until a secure mechanical and electrical connection is achieved. Do not apply excessive torque when tightening; hand-tighten to avoid damaging the threads. Verify signal continuity and correct orientation before putting the connected equipment into service.

Recommendations

For best performance, use the adapter in dry environments and avoid repeated excessive bending or mechanical stress on connected cables. Inspect connector surfaces for dirt or debris before mating to maintain reliable RF contact.
