DIGITUS FTTH thuisverdeeleenheid. 3x LC/APC duplex OS2. IP54. lasgereed

The Digitus FTTH Home Distribution Unit is a compact plastic wall box designed for residential fiber-optic installations. It supports three LC/APC duplex connections and accommodates up to 24 fibers in its splice cassette. The unit uses a three-part housing with a detachable base plate and a lockable long lid to secure internal components while offering multiple cable entry options and adaptable splice holders.

Advantages

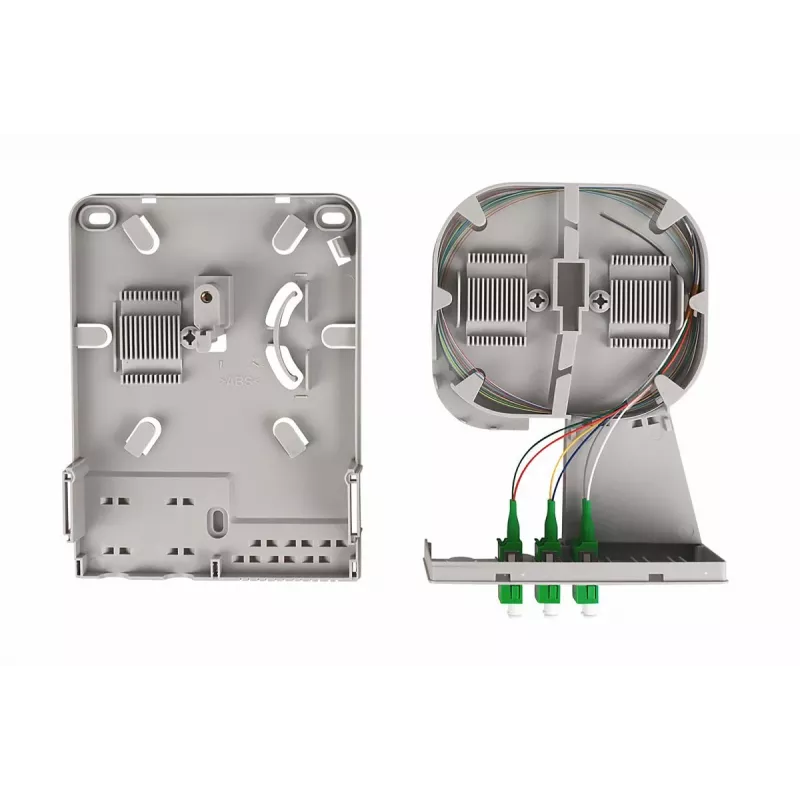

The distribution unit combines a small footprint with flexible installation options: a multifunctional base plate with PLC splitter and cable guides, a splice cassette for up to 12 couplings (24 fibers) and interchangeable splice or shrink receptacles. It provides dedicated cut-outs for 7 mm or 12 mm microducts, optional crimp or through-splice space, and a built-in cylinder lock for the lid to prevent unauthorized access.

Suitable for

• Residential FTTH terminations
• Small apartment or home fiber distribution
• Indoor wall-mounted fiber splicing and patching

Key specifications

• Model: DN-949103
• Brand: DIGITUS

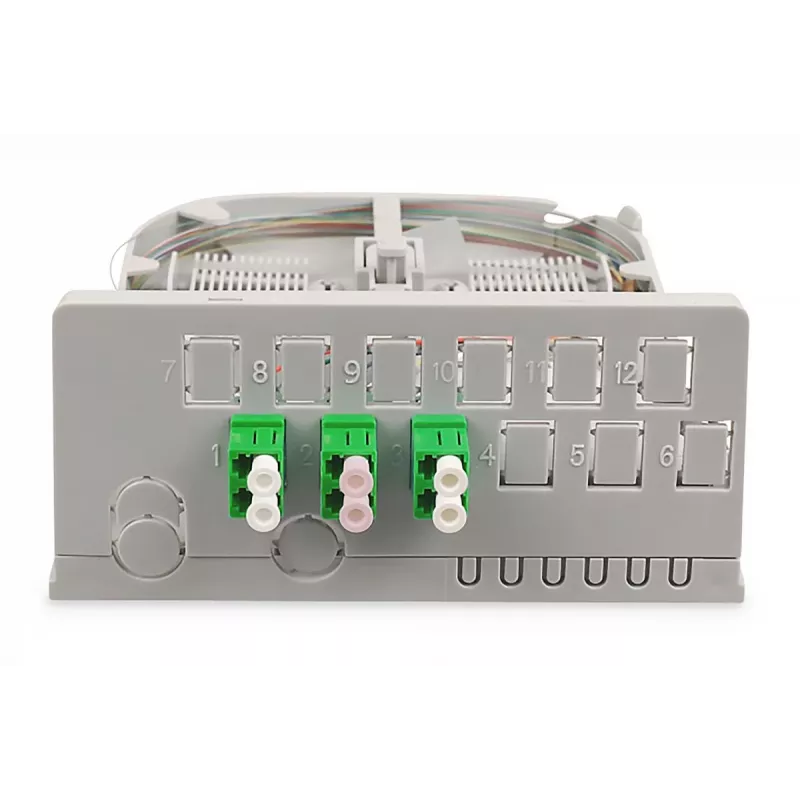

• Ports: 3 × LC/APC duplex

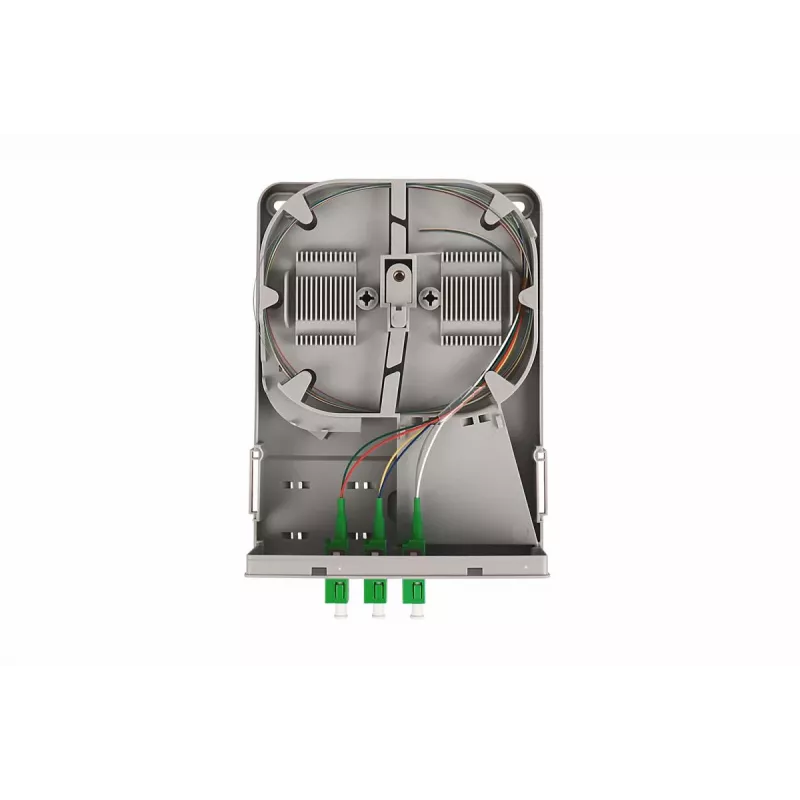

• Splice capacity: up to 24 fibers (splice cassette with two 12-fiber holders)

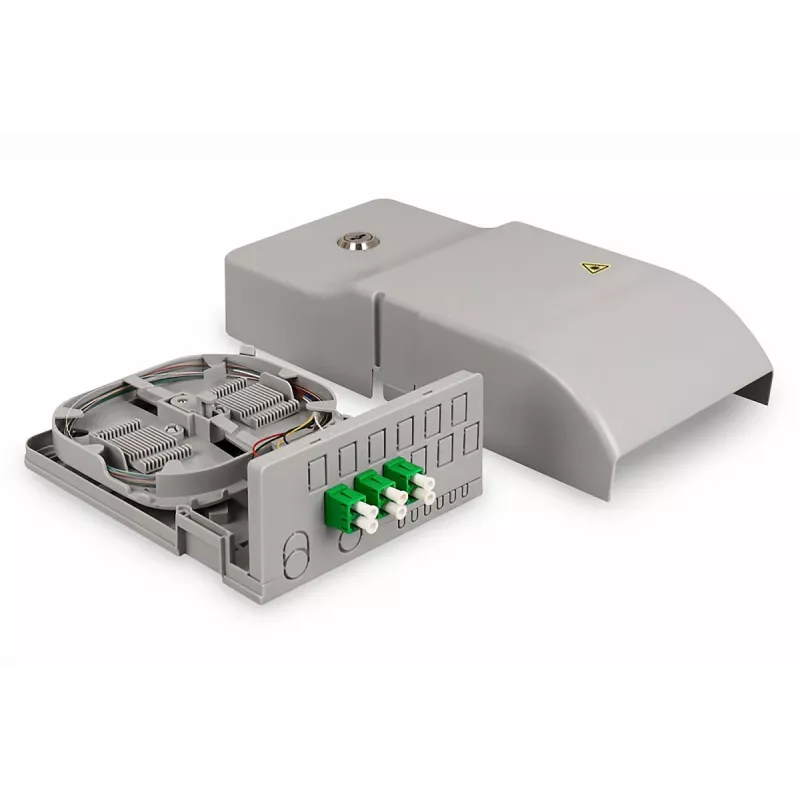

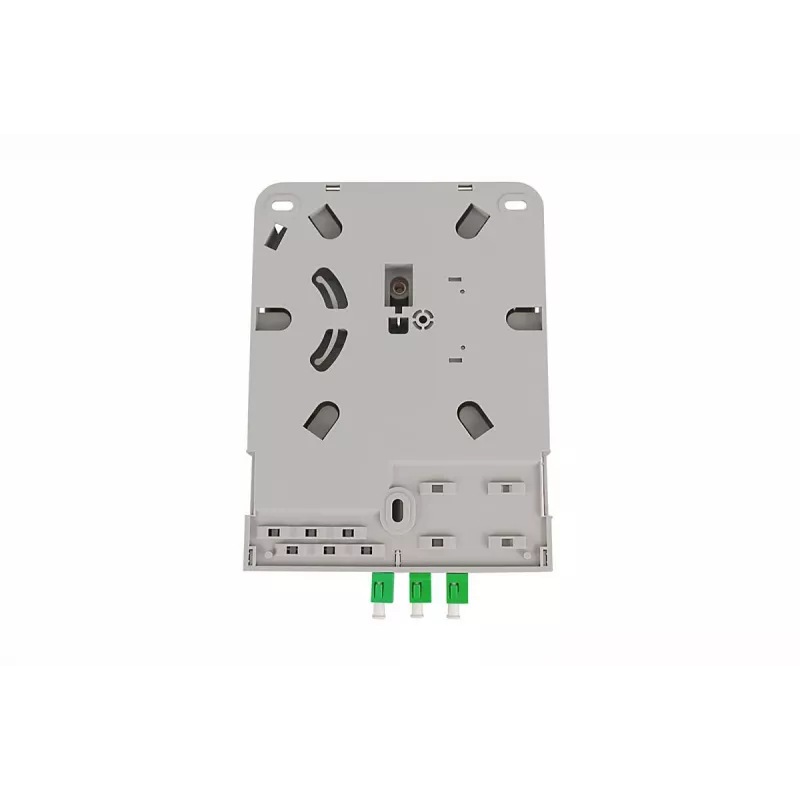

• Housing: 3-part plastic wall box with detachable base plate and long lid
• Cable entry: multiple options including 7 mm and 12 mm microduct cut-outs
• Dimensions: 122 mm (W) × 59 mm (D) × 256 mm (H)
• Lock: built-in cylinder lock
• MPN / EAN: DN-949103 / 4016032487630

How to use

Install the base plate at the desired internal position of the housing to allow unobstructed access for cabling and splicing. Route the incoming fiber through the intelligent cable guide and secure it in place. Fit microducts through the appropriate 7 mm or 12 mm cut-outs if required. Place or replace PLC splitters and splice or shrink receptacles into the designated holders. Mount the splice cassette to accommodate up to 12 couplings and install the required LC, SC or E-2000® couplers. Close the housing and lock the long lid with the cylinder lock to protect the subscriber side.

Recommendations

For reliable performance, perform fiber splicing and connector installation in a clean environment and use compatible splice holders and couplers. Ensure proper bend radius management when routing fibers and secure the lid with the cylinder lock to prevent tampering.
