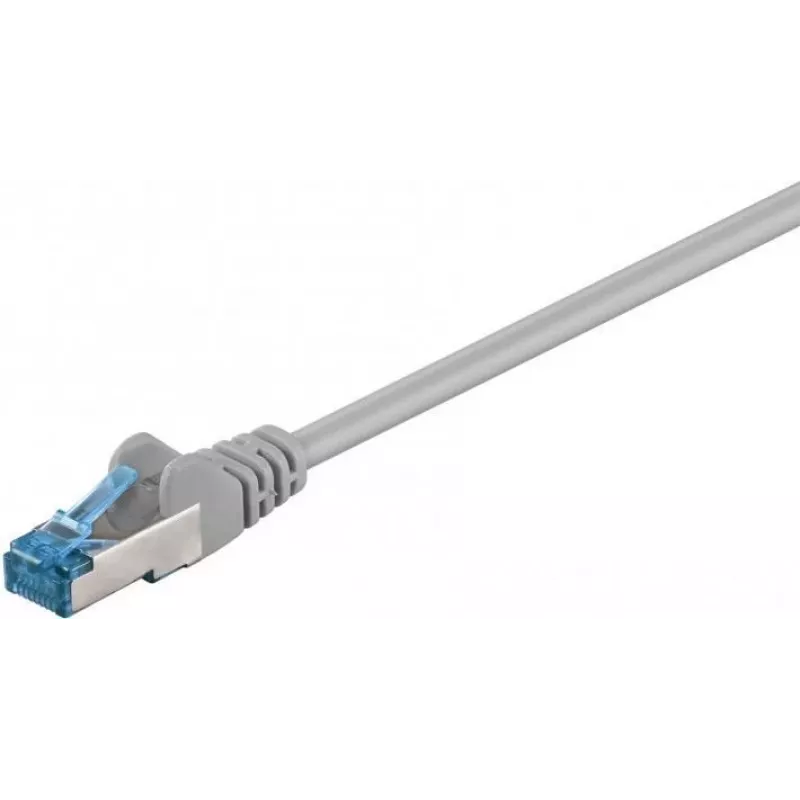

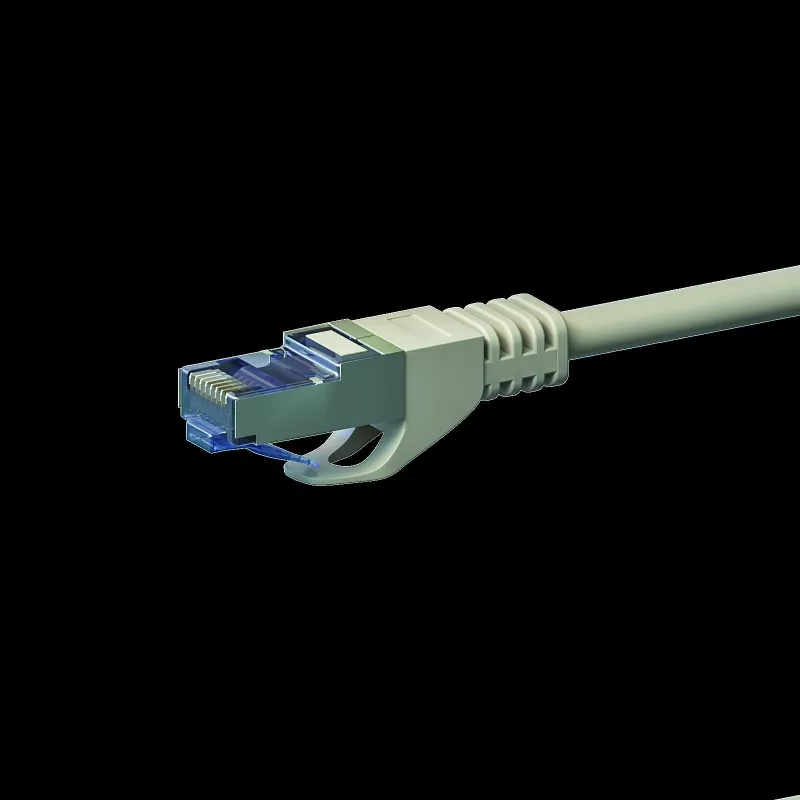

DSIT CAT 6a netwerkkabel LSOH - S/FTP - 15 meter - grijs (DC-6A1-150)

In a busy office, a network administrator unboxes this 15-meter grey cable to connect a workstation to a wall outlet across the room. The DSIT CAT 6a LSOH S/FTP patch cable delivers 10 Gigabit Ethernet with robust shielding, ensuring high-speed, interference-free data transfer in demanding environments.

Key specifications

• Category: CAT 6a (Class EA)
• Shielding: S/FTP (PiMF - pairs in metal foil, overall braid)
• Length: 15 meters
• Colour: Grey
• Jacket: LSOH (Low Smoke Zero Halogen)
• Data rate: Up to 10 Gbps (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Conductor: Oxygen-free copper (OFC), AWG 26/7 stranded
• Wiring: TIA/EIA 568B
• Impedance: 100 Ohm
• Outer diameter: Approx. 6.2 mm
• Fire safety: IEC 60332-1, IEC 61034, IEC 60754
• Certifications: RoHS, CE, TIA/EIA-568-C.2, ISO/IEC 11801
• Operating temperature: -20°C to +60°C

Why choose it

This cable is built for high-performance networking where reliability and safety are paramount. The S/FTP shielding minimises crosstalk and electromagnetic interference, while the LSOH jacket emits low smoke and zero halogens in case of fire, making it suitable for public buildings and confined spaces. Gold-plated contacts ensure corrosion resistance and consistent signal quality over time.

Ideal use cases

• 10GBASE-T Ethernet connections in data centres and server rooms
• Office workstations requiring high-speed, stable links
• PoE and PoE+ devices such as IP cameras and access points
• Installations where fire safety regulations demand LSOH cabling

Good to know

The cable supports Power over Ethernet (PoE and PoE+), allowing both data and power delivery over a single run. Its stranded conductors provide flexibility for frequent patching, while the 15-meter length offers ample reach for most room-to-room connections. The grey colour blends unobtrusively into modern office environments.
