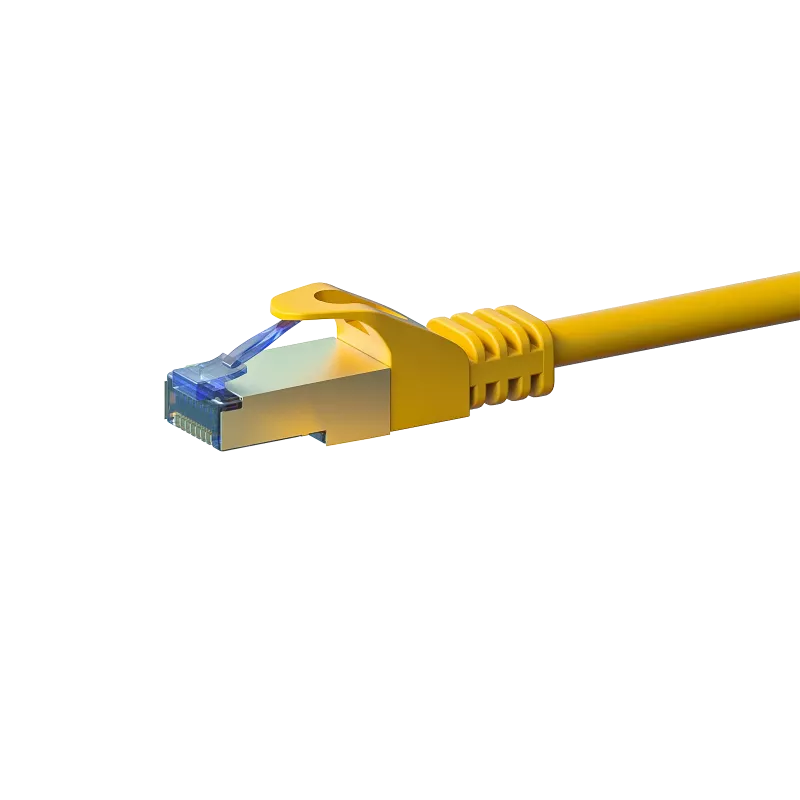

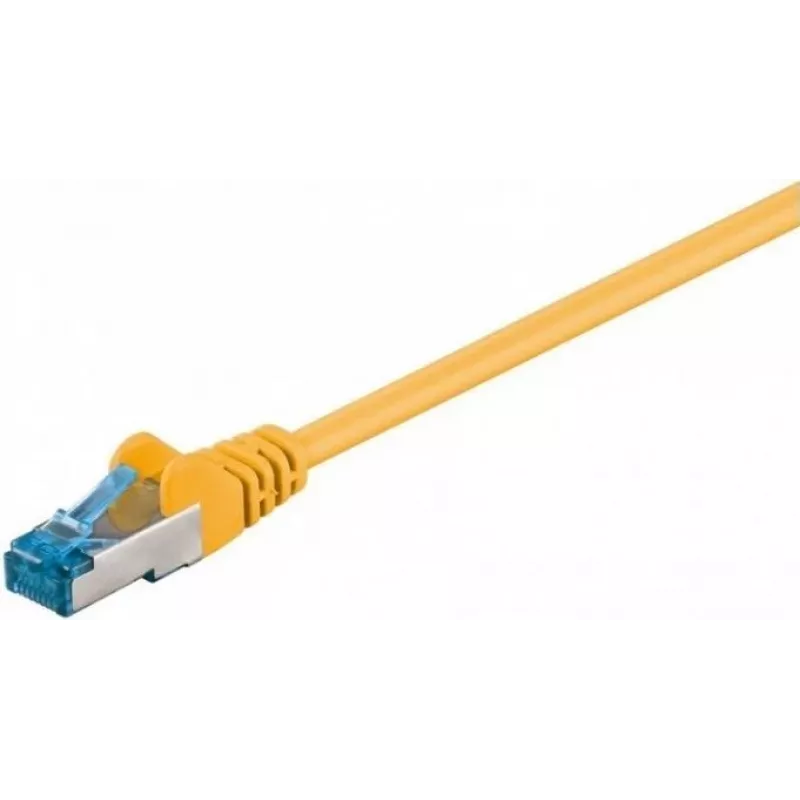

DSIT CAT 6a S/FTP LSOH netwerkkabel 30m geel

Experience 10 Gigabit Ethernet at 500 MHz bandwidth with this 30-meter CAT 6a S/FTP LSOH cable in yellow, engineered for high-density, high-speed network environments.

Overview

The DSIT CAT 6a patch cable delivers reliable 10GBASE-T performance over 30 meters, making it ideal for data centers, server rooms, and enterprise LANs. Its S/FTP shielding—each pair foiled and overall braid screened—provides superior protection against alien crosstalk and EMI, ensuring signal integrity even in cable-dense installations. The LSOH (Low Smoke Zero Halogen) jacket is flame-retardant and emits minimal toxic fumes, meeting IEC 60332-1 fire safety standards for safe use in public and enclosed spaces.

What stands out

• Supports 10 Gigabit Ethernet up to 30 meters with 500 MHz bandwidth
• S/FTP shielding: foil per pair plus overall braid for maximum noise immunity
• LSOH jacket: low smoke, zero halogen, flame-retardant for enhanced safety
• Stranded copper conductors for flexibility and easy routing
• Backward compatible with Cat 6, Cat 5e, and Cat 5 networks
• RoHS and CE compliant

Technical details

• Cable standard: CAT 6a
• Shielding type: S/FTP (Screened/Foiled Twisted Pair)
• Length: 30 meters
• Color: Yellow
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Max data transfer rate: 10 Gbps
• Max bandwidth: 500 MHz
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor construction: Stranded
• Cable type: Patch cable
• Impedance: 100 Ohm
• Wiring standard: TIA/EIA-568-C.2
• Fire safety standard: IEC 60332-1
• Compliance: RoHS, CE

Our verdict

A high-performance, safety-conscious CAT 6a cable that delivers 10G speeds with robust shielding and a halogen-free jacket—perfect for modern network infrastructures.
