DSIT DANICOM CAT5e RJ45 afgeschermde keystone-koppelaar DS-CP5-SHI

Experience seamless network extension with the DSIT DANICOM CAT5e RJ45 Shielded Keystone Coupler, delivering Gigabit Ethernet performance up to 1000 Mbps and a bandwidth of 100 MHz. This inline coupler is engineered to join two RJ45 patch cables with minimal signal loss, ensuring reliable connectivity for demanding applications.

Overview

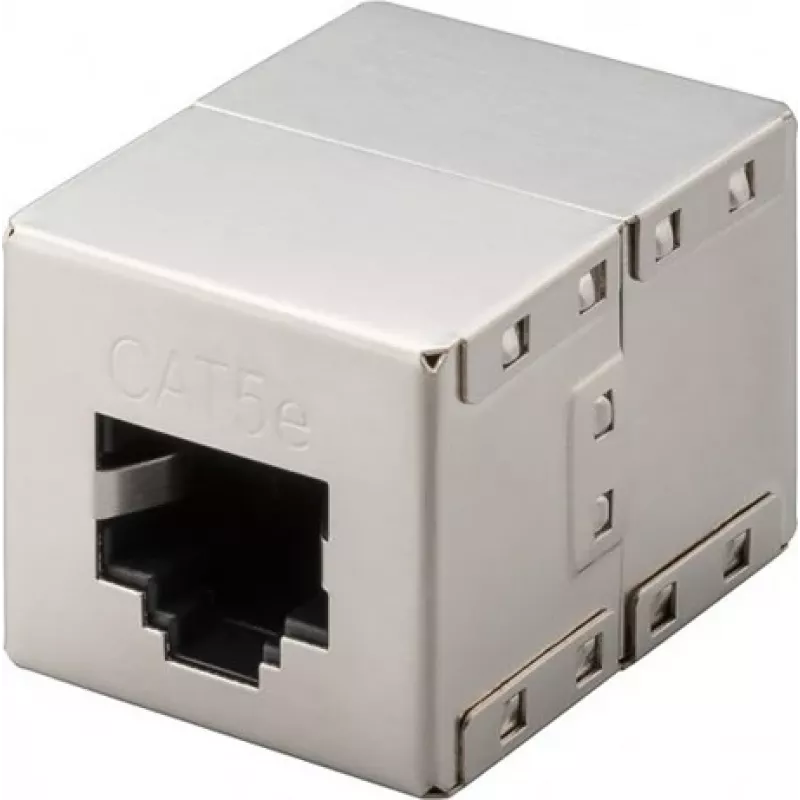

The DS-CP5-SHI is a shielded RJ45 female-to-female coupler designed for CAT5e networks. It features gold-plated contacts (50µm) for superior conductivity and corrosion resistance, and a robust zinc alloy housing with ABS insulation. The coupler fits standard keystone openings (19.2 x 14.9 mm) and is ideal for patch panels, wall plates, and surface mount boxes.

What stands out

• Shielded design (STP compatible) reduces electromagnetic interference (EMI) for stable connections in noisy environments.
• Gold-plated 8P8C contacts ensure low contact resistance and long-term reliability, with a durability of 750 mating cycles.
• Compact keystone form factor allows easy integration into existing network infrastructure without tools.
• Meets TIA/EIA-568-C.2 standards and is backward compatible with CAT5 and CAT5e cables.

Technical details

• Connector type: RJ45 female to RJ45 female (8P8C)
• Shielding: Shielded (STP)
• Data transfer rate: up to 1000 Mbps (Gigabit Ethernet)
• Bandwidth: up to 100 MHz
• Contact plating: Gold (50µm)
• Housing material: Zinc alloy / ABS
• Mounting type: Keystone (19.2 x 14.9 mm)
• Insertion loss: < 0.5 dB
• Return loss: > 20 dB
• Operating temperature: -10°C to 60°C
• Certifications: RoHS, CE, TIA/EIA-568-C.2

Our verdict

The DSIT DS-CP5-SHI is a reliable and robust solution for extending CAT5e network runs. Its shielded construction and gold-plated contacts ensure high-performance connectivity, making it an excellent choice for both professional installers and home users seeking a durable coupler.
