Keystone-module DeLOCK 86166

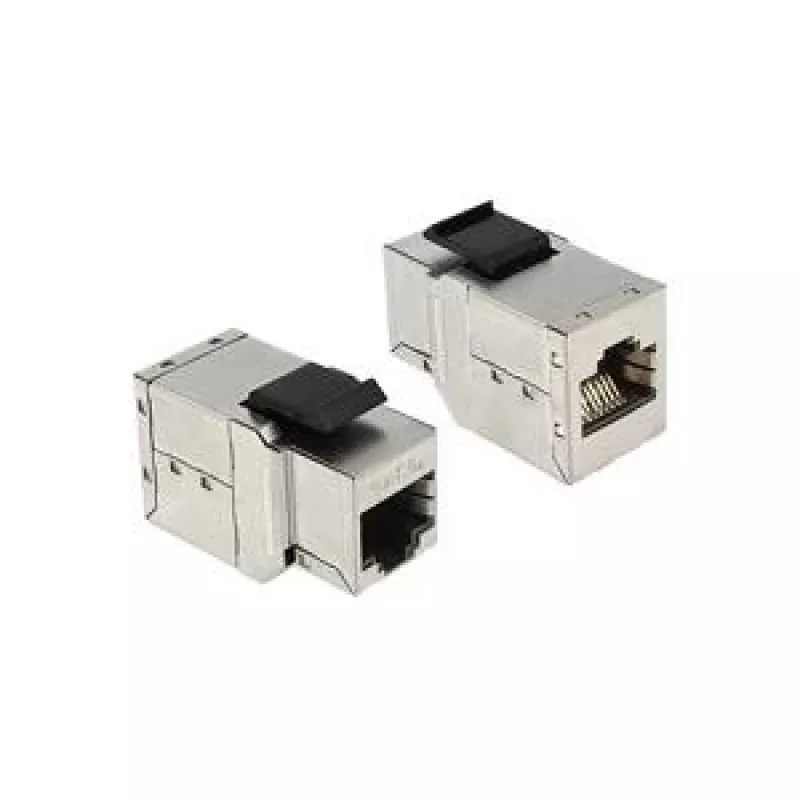

The DeLOCK 86166 keystone module is a compact silver-coloured insert with dual RJ45 connectors, designed to extend twisted pair cables and provide a standardised interface for network installations. Its small dimensions (35.2 × 17.1 × 21.2 mm) allow snap-in mounting into keystone-compatible patch panels, faceplates or surface-mount boxes for straightforward integration into structured cabling systems.

Advantages

The module’s standard keystone dimensions enable tool-free snap-in installation into a variety of keystone frames and wall plates. Dual RJ45 ports provide flexible connection options while the silver finish offers neutral appearance for visible installations. Its compact size reduces space requirements in dense patch panels and surface boxes.

Suitable for

• Extending twisted pair Ethernet cables
• Installation in keystone patch panels
• Use with faceplates and surface-mount boxes
• Small or crowded network cabinets and outlet locations

Key specifications

• Brand: DELOCK
• Model / MPN: 86166
• Product colour: Silver
• Connectors: Dual RJ45
• Dimensions (W × D × H): 35.2 × 17.1 × 21.2 mm
• Category: RJ Plugs and Boots (keystone module)

How to use

Insert the keystone module into a compatible keystone slot on a patch panel, faceplate or surface-mount box until it snaps into place. Terminate or plug in RJ45 cables as required to extend or reroute network runs. Ensure cables are seated fully in the RJ45 ports and verify connectivity after installation.

Recommendations

For best results, use the module in keystone-compatible frames and panels. Verify cable wiring and network standards (e.g., Cat5e/Cat6) compatibility before deployment and perform continuity or link tests after installation.
