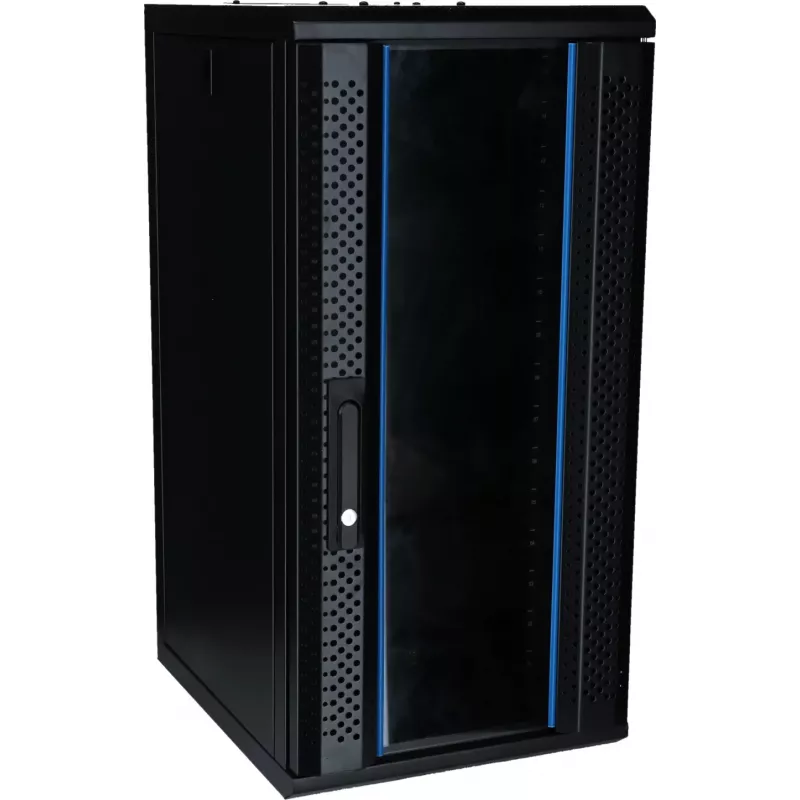

DSIT DS10-3415 15U 10-inch wandmontage-serverrack met glazen deur, 370x450x752 mm, zwart

For compact IT installations where space is at a premium, the DSIT DS10-3415 stands apart by offering a full 15U of 10-inch rack capacity in a wall-mountable steel enclosure that doesn’t sacrifice accessibility or security. Unlike open-frame racks that leave equipment exposed, this cabinet surrounds your hardware with a lockable glass front door and fixed side panels, keeping dust and unauthorized hands out while maintaining a clear view of indicator lights. The welded frame and powder-coated finish deliver the rigidity needed for long-term reliability in small offices, retail back rooms, or industrial control points.

Highlights

• 15U 10-inch rack capacity with adjustable mounting rails for flexible equipment placement
• Lockable front glass door with two keys included for controlled access
• Wall-mountable design with top and bottom cable entry for clean wiring
• Sturdy welded steel construction with black powder-coated finish
• Passive ventilation and IP20 protection for dust-free indoor environments

In daily use

Mount the DS10-3415 at eye level to simplify patching and monitoring. The glass door lets you check status LEDs without opening the cabinet, and the lock deters casual tampering. Fixed side panels reduce the risk of accidental disconnection while still allowing service access from the front. Top and bottom knockouts accommodate cable bundles from either direction, so you can route power and data separately. With external dimensions of 370 × 450 × 752 mm, it fits neatly above a workbench or in a narrow closet, and the 20 kg maximum load capacity handles typical 10-inch switches, patch panels, and small servers.

Full specifications

• Brand: DSIT
• Model: DS10-3415
• MPN: DS10-3415
• EAN: 8720289757335
• Rack standard: 10-inch
• Rack capacity: 15U
• External dimensions (W × D × H): 370 × 450 × 752 mm
• Material: Steel
• Colour: Black
• Front door: Glass, lockable
• Side panels: Fixed
• Mounting type: Wall mountable
• Cable entry: Top and bottom
• Ventilation: Passive
• Protection class: IP20
• Maximum weight capacity: 20 kg
• Included accessories: 2 keys
• Construction: Welded frame
• Finish: Powder coated

Final note

The DSIT DS10-3415 combines a compact footprint with genuine 10-inch rack functionality, making it a practical choice for edge deployments and small network closets where every centimetre counts.
