DSIT DS6409 9U wandmontage-serverkast met glazen deur, 600x450x500 mm, zwart

Supporting up to 60 kg of equipment in a compact 9U form factor, the DSIT DS6409 wall-mount cabinet is built for secure, space-saving IT deployments. Its 600 x 450 x 500 mm dimensions (W x D x H) fit neatly in offices, retail back rooms, or industrial enclosures where floor space is at a premium.

Overview

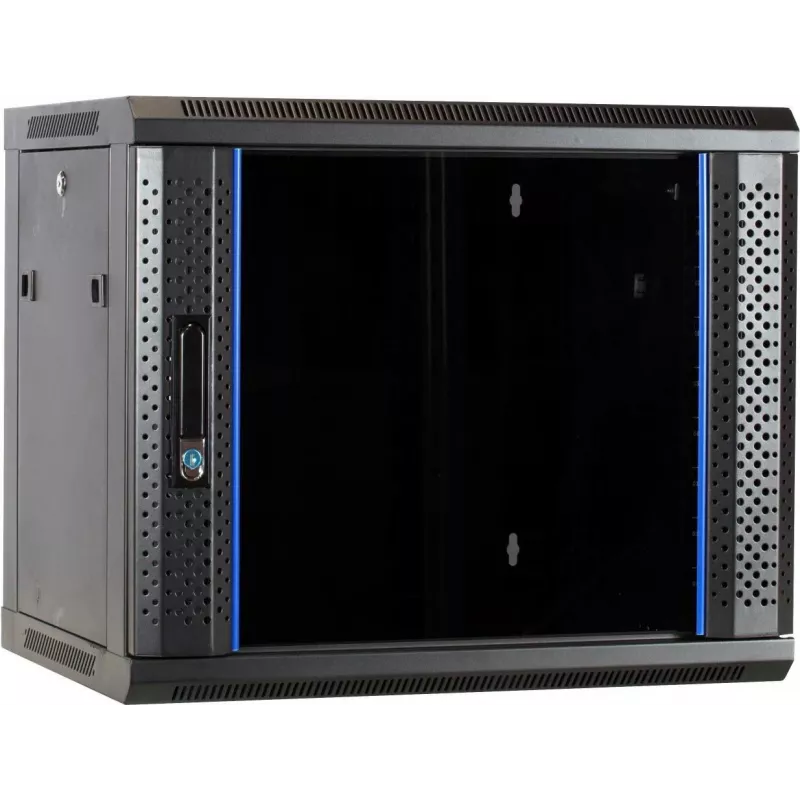

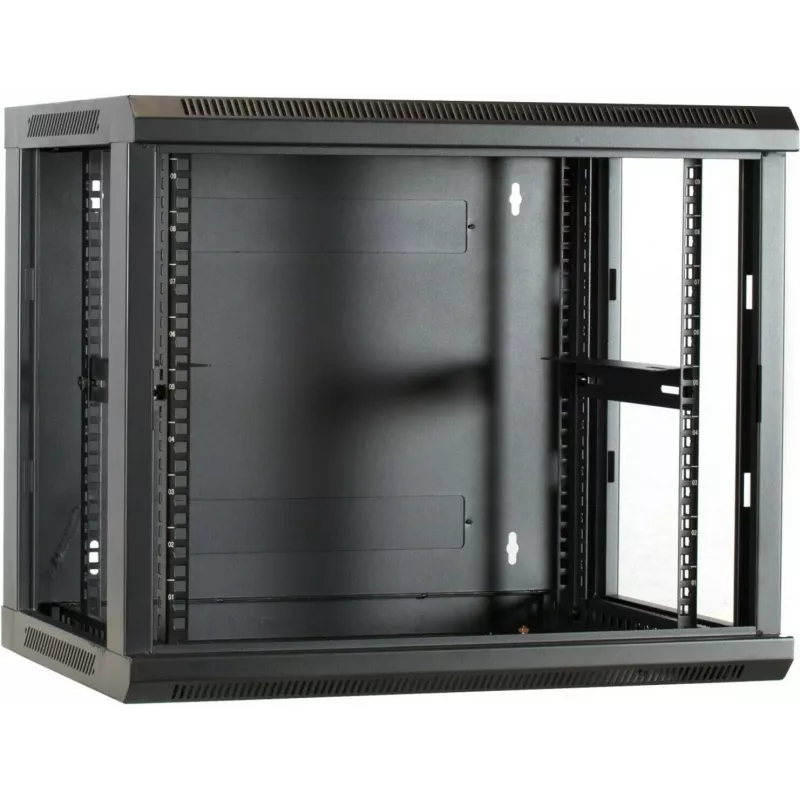

The DSIT DS6409 is a 19-inch wall-mount server cabinet with a lockable glass front door, removable side panels, and a pre-assembled SPCC cold-rolled steel frame. Finished in black (RAL 9005), it offers passive ventilation and is fan-ready for active cooling. Top and bottom cable entries with brush strips keep installations tidy.

What stands out

• 9U rack capacity for networking, AV, or small server equipment
• Lockable glass door and removable lockable side panels for security
• 60 kg maximum load capacity, suitable for dense equipment
• Pre-assembled construction with included mounting hardware and 2 keys
• Passive ventilation plus fan-ready top panel for thermal management

Technical details

• Rack standard: 19-inch
• External dimensions (W x D x H): 600 x 450 x 500 mm
• Material: SPCC cold rolled steel
• Colour: Black (RAL 9005)
• Front door: Single section, lockable glass

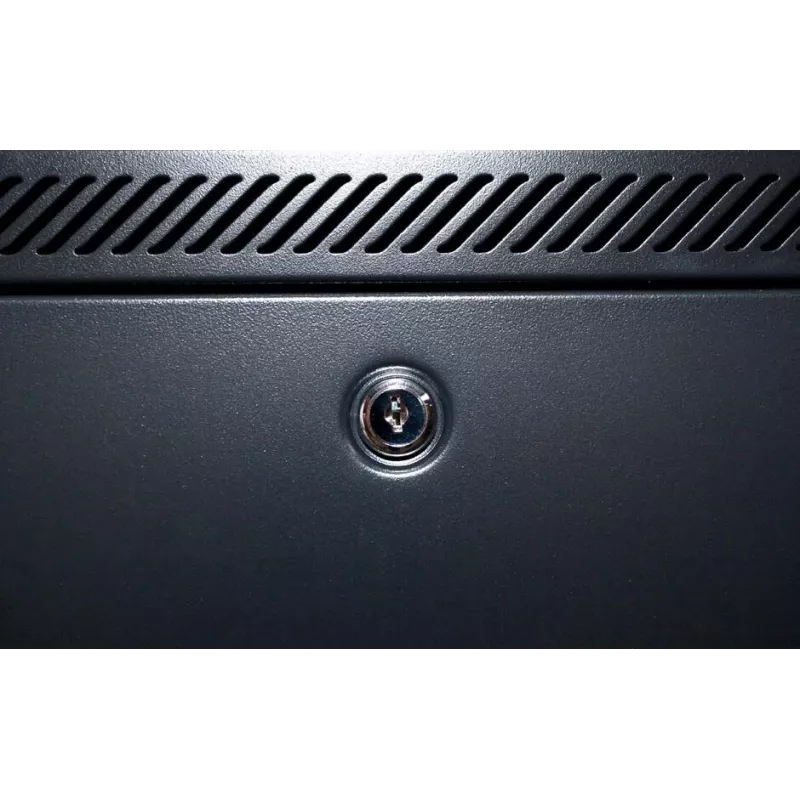

• Side panels: Removable, lockable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, fan-ready top
• Protection class: IP20
• Compliance: IEC 60297
• Included accessories: 2x keys, mounting hardware

Our verdict

A robust and secure wall-mount cabinet for small IT installations, offering easy access through its glass door and flexible cable management.
