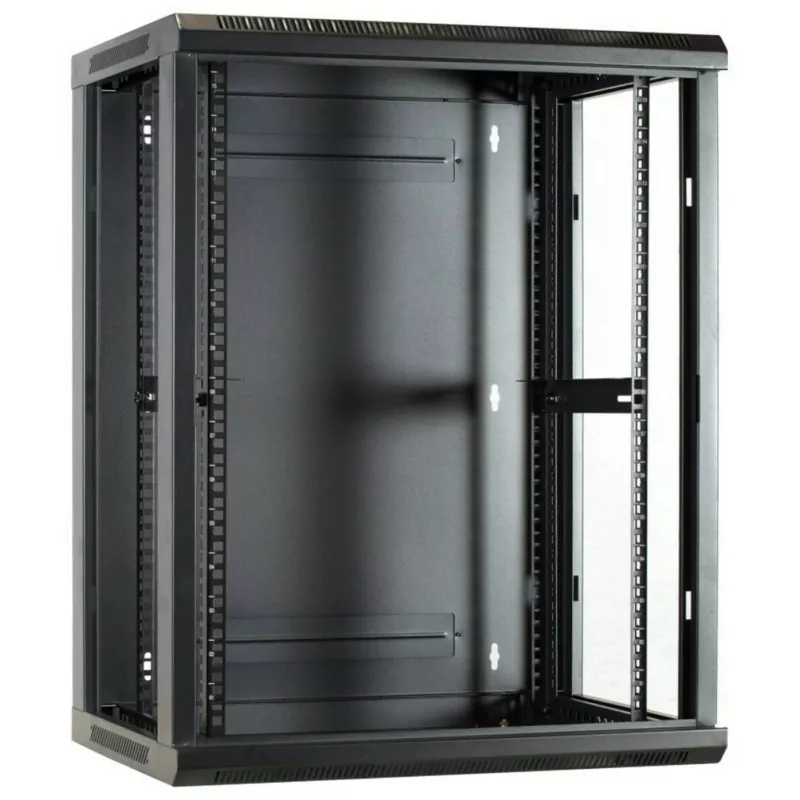

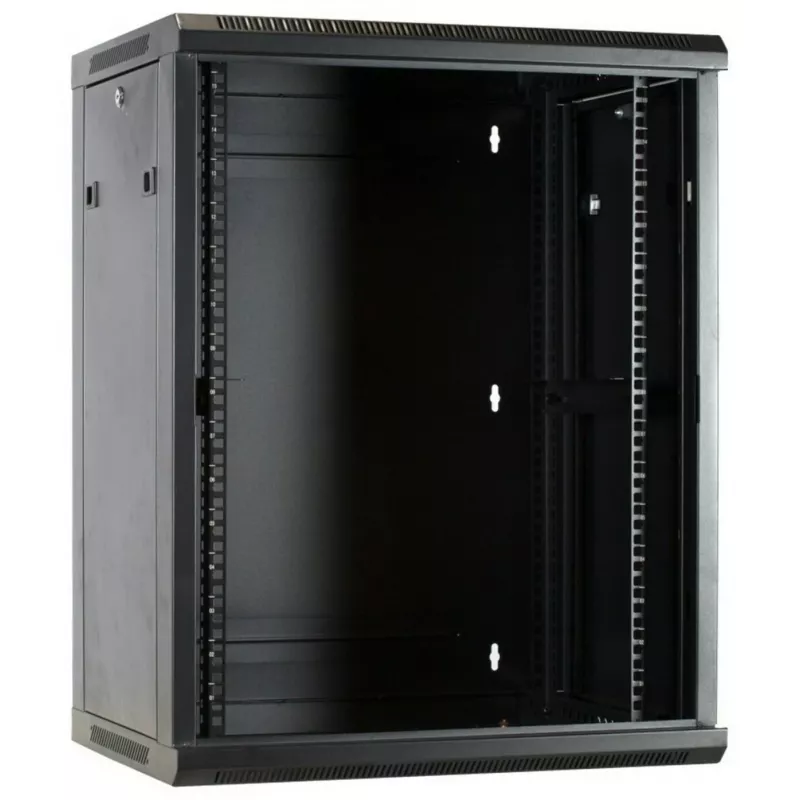

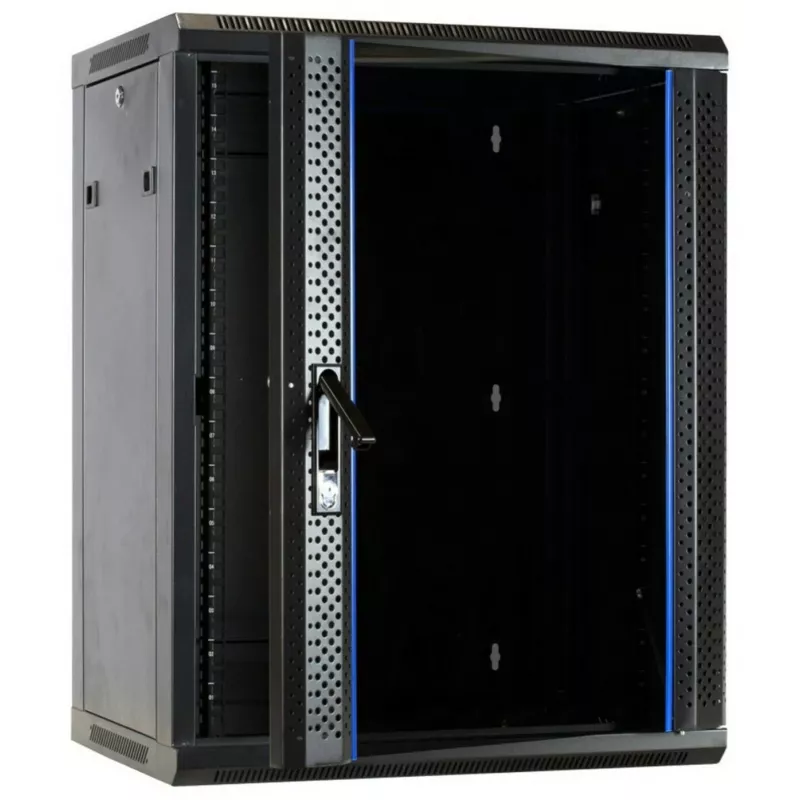

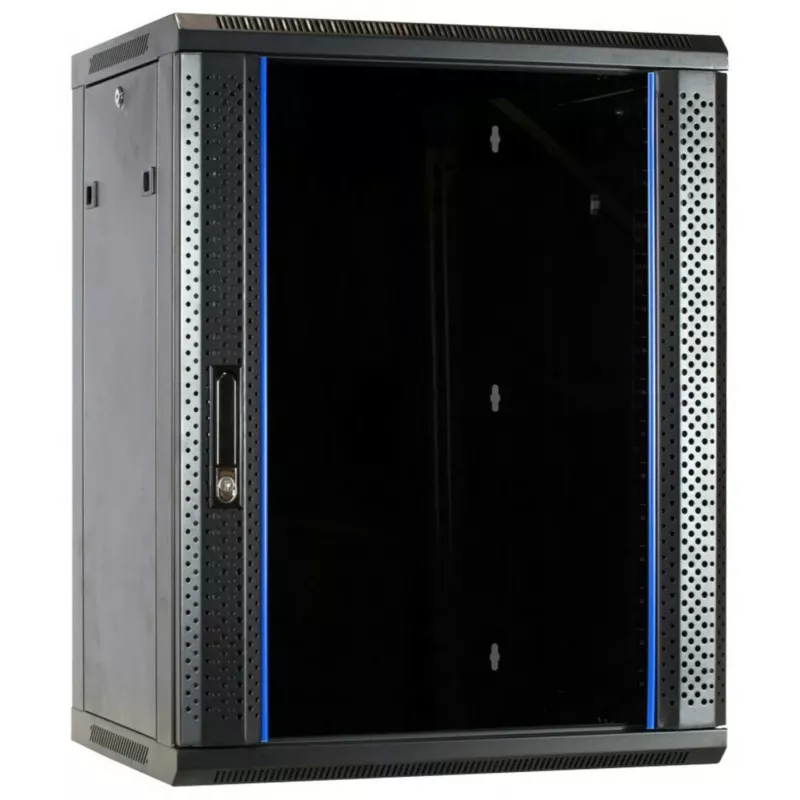

DSIT DS6615 15U wandmontage-serverkast met glazen deur, 600x600x770 mm, zwart

Compact yet surprisingly capable, the DSIT DS6615 wall-mount cabinet delivers 15U of 19-inch rack space in a footprint that fits tight server rooms, network closets, and office environments. Unlike bulky floor-standing racks, this enclosure mounts securely on the wall, keeping critical equipment off the floor and within easy reach. The tempered glass front door adds a professional look while allowing quick visual monitoring of indicator lights without opening the cabinet.

Highlights

• 15U height with 600 mm width and 600 mm depth accommodates standard 19-inch servers, switches, and patch panels
• Wall-mount design with included hardware saves floor space and simplifies cable management
• Tempered glass front door with key lock protects equipment from unauthorized access
• Removable side panels with locks enable easy maintenance and side-to-side airflow
• Adjustable front and rear mounting rails support equipment depths up to 600 mm
• SPCC cold-rolled steel frame with powder-coated black finish (RAL 9005) ensures durability
• Passive ventilation via perforated top and bottom panels; optional fan unit can be added
• 60 kg static load capacity handles multiple devices without flexing

In daily use

Installation is straightforward: secure the cabinet to a sturdy wall using the provided hardware, then adjust the mounting rails to match your equipment depth. The glass door opens smoothly and locks with a key, while the side panels can be removed entirely for cable routing or hardware swaps. Top and bottom cable entry points keep wiring organized, and the black powder-coated finish resists scratches and corrosion. With a 60 kg load rating, this cabinet easily supports a stack of switches, a small server, and a UPS without strain.

Full specifications

• Rack capacity: 15U
• Mounting type: Wall mount
• External dimensions (W x D x H): 600 x 600 x 770 mm
• Rack standard: 19-inch
• Material: SPCC cold-rolled steel
• Colour: Black (RAL 9005)
• Surface finish: Powder coated
• Front door: Tempered glass, key lock
• Side panels: Removable, with locks
• Ventilation: Passive (perforated top/bottom for optional fan unit)
• Mounting rails: Adjustable, front and rear
• Protection rating: IP20
• Maximum static load capacity: 60 kg
• Cable entry: Top and bottom
• Compliance: RoHS, CE
• Included accessories: Mounting hardware, 2x keys

Final note

The DSIT DS6615 combines space efficiency, security, and a clean aesthetic—ideal for branch offices, retail back rooms, or any location where floor space is at a premium.
