EMITER Schakelkast aangesloten DC-hermetische IP65 EMITTER met Noark 1000V Type 2 DC-overspanningsafleider, 4x PV-string, 4x MPPT

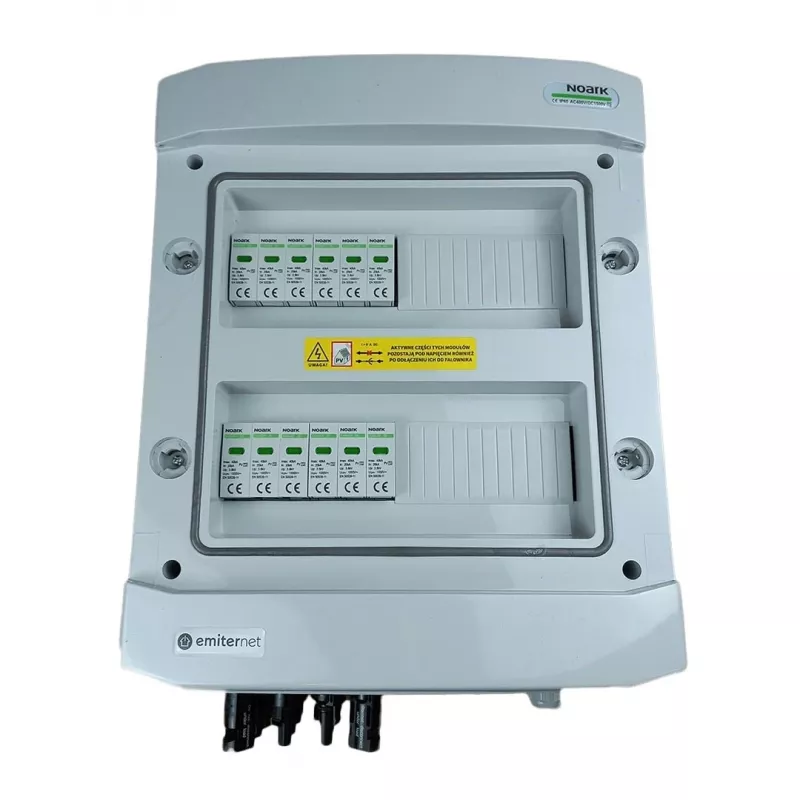

The EMITER Switchgear Attached DC Hermetic IP65 EMITTER is a high-performance DC PV string combiner box designed for solar photovoltaic systems. It integrates a Noark 1000V Type 2 DC surge arrester, providing robust protection against overvoltage and short circuits. With 4 PV string inputs and 4 MPPT outputs, this unit is pre-wired and wall-mountable, featuring a hermetic IP65-rated enclosure for outdoor use.

Advantages

This combiner box offers reliable surge protection with a Type 2 SPD from Noark, ensuring long-term system safety. The hermetic IP65 design protects against dust and water ingress, making it ideal for harsh environments. Pre-wired with MC4 compatible connectors, installation is quick and straightforward.

Suitable for

• Solar photovoltaic systems requiring DC string combining
• Outdoor installations needing high ingress protection
• Systems with up to 4 PV strings and 4 MPPT inputs

Key specifications

• Product Type: DC PV String Combiner Box
• Max System Voltage: 1000 V DC
• Number of PV Strings (Input): 4
• Number of MPPT Outputs: 4
• Surge Protection Device: Yes, Type 2, Noark
• Ingress Protection: IP65, Hermetic
• DC Disconnector: Yes
• Fuses per String: Yes, DC gPV fuses
• Enclosure Material: UV-resistant Polycarbonate
• Connection Type: MC4 compatible connectors
• Mounting: Wall-mountable
• Operating Temperature: -25°C to +60°C
• Standards: IEC 61439-2

Recommendations

For optimal performance, ensure proper grounding and follow local electrical codes. This combiner box is designed for professional installation by qualified personnel.
