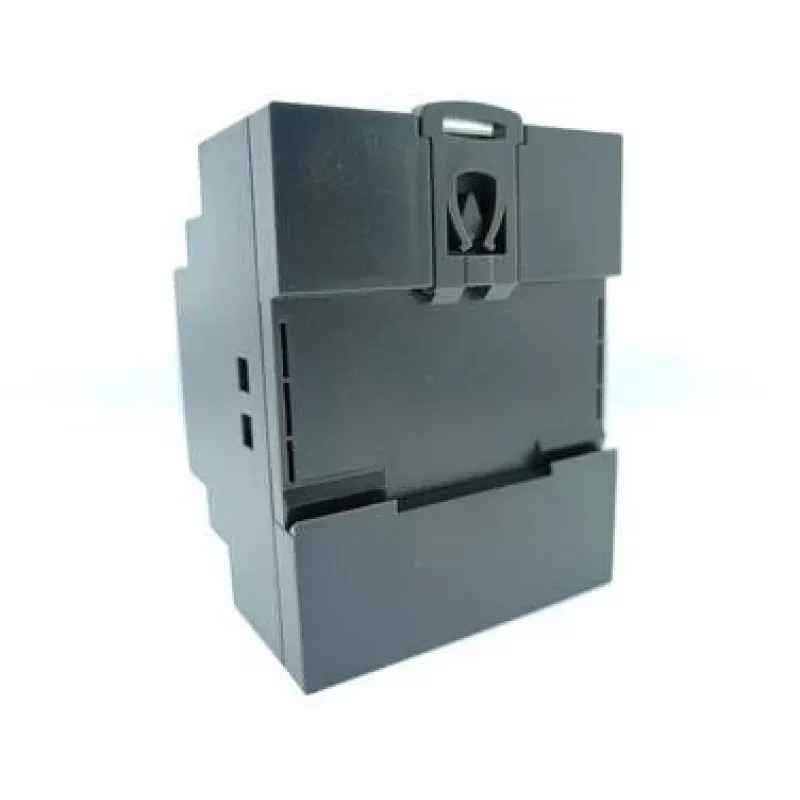

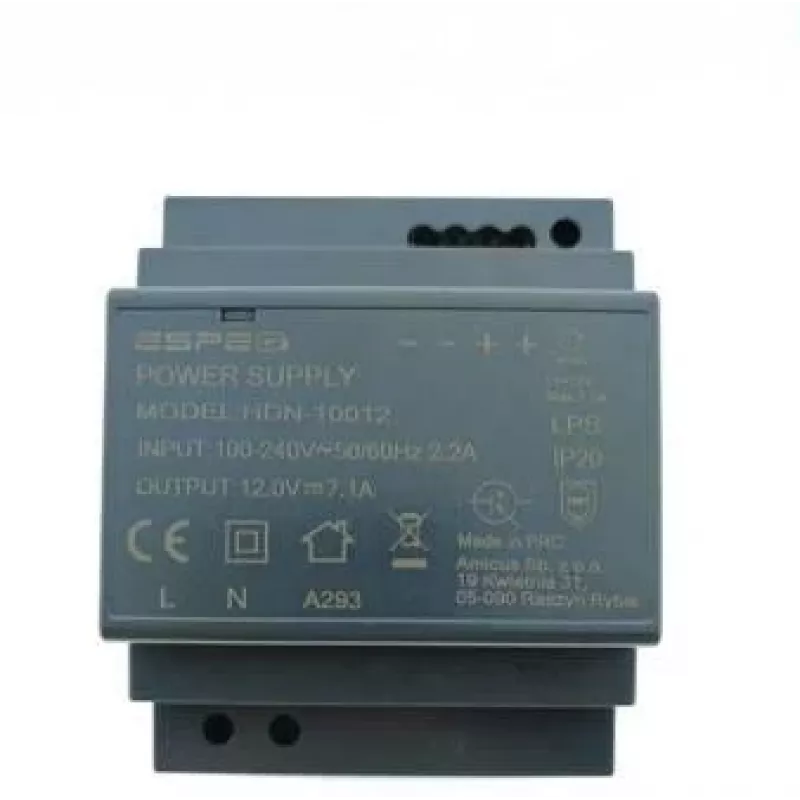

ESPE HDN-10012 DIN-rail voeding 12V 85W 7,1A

The ESPE HDN-10012 is a high-performance DIN rail power supply designed for industrial automation, control systems, and other demanding applications. It delivers a stable 12V DC output with 85W power and 7.1A current, ensuring reliable operation of your equipment. With a wide input voltage range and comprehensive protection features, this power supply is built to last.

Advantages

Compact design for easy DIN rail mounting, high efficiency >88% reduces energy waste, and multiple protections (overload, overvoltage, short circuit) ensure safety and longevity. Free air convection cooling means no noisy fans, making it ideal for quiet environments.

Suitable for

• Industrial control panels
• Building automation systems
• PLC and sensor power supply
• Security and access control systems

Key specifications

• Input: 85-264 VAC / 120-370 VDC, 47-63 Hz
• Output: 12V DC, 7.1A, 85W
• Voltage adjustment range: 10.8-13.2V
• Ripple & noise: <120mVp-p
• Efficiency: >88% at 230VAC full load
• Protections: Overload (105-150%), overvoltage (13.8-16.2V), short circuit (hiccup, auto-recovery)
• Operating temperature: -20°C to +70°C (derating above +50°C)
• Mounting: DIN Rail TS-35/7.5 or TS-35/15
• Isolation: 3000 VAC input-output
• MTBF: >100,000 hours
• Certifications: CE, RoHS
• Housing: Plastic enclosure

Recommendations

For optimal performance, ensure proper ventilation and avoid exceeding the derating temperature. This power supply is a reliable choice for your 12V DC applications.
