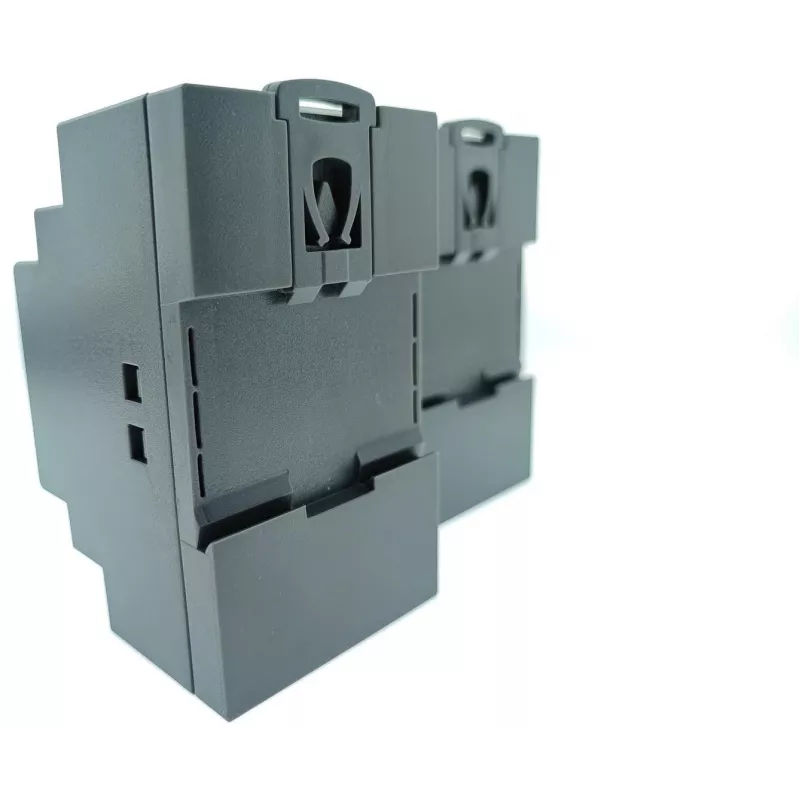

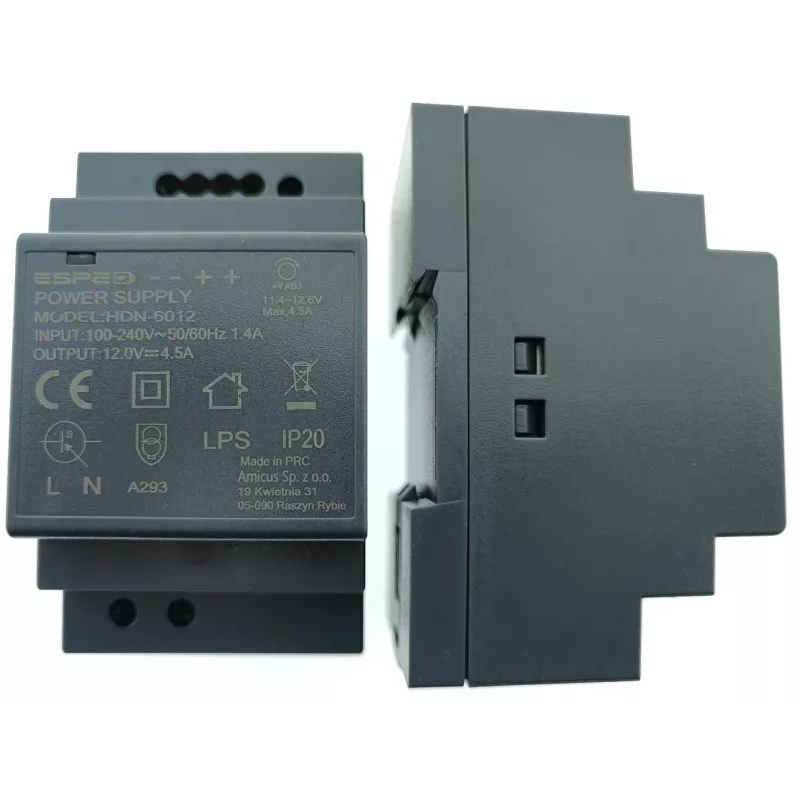

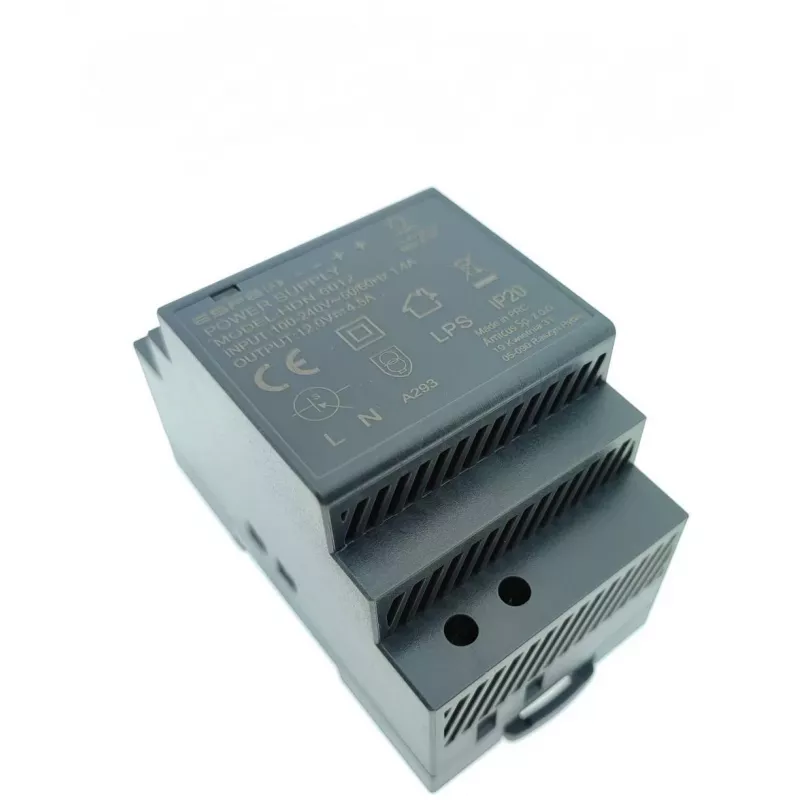

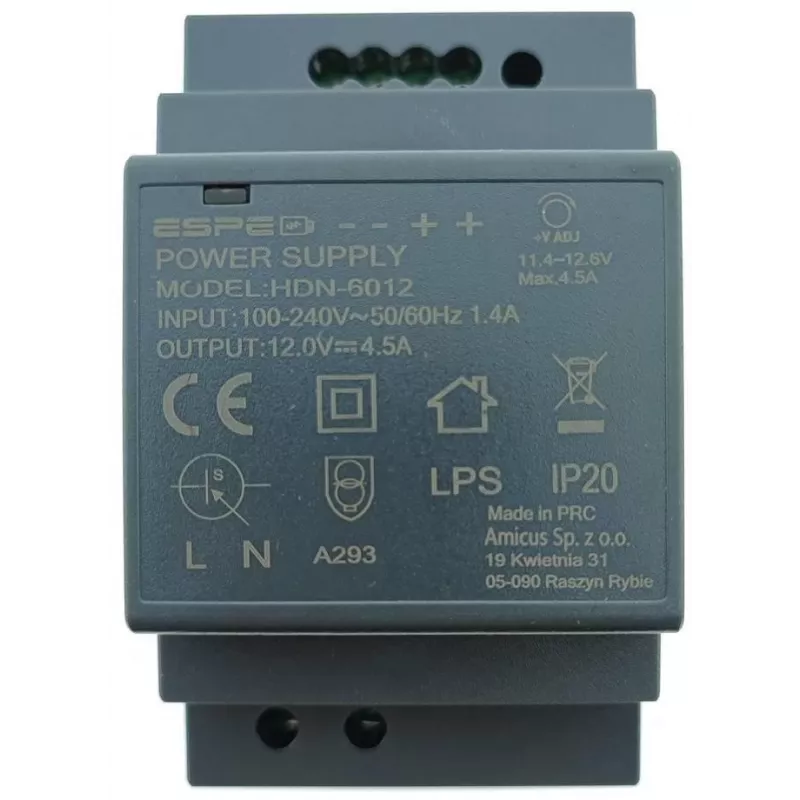

ESPE HDN-6012 DIN-rail voeding 12V 54W 4.5A

The ESPE HDN-6012 is a high-performance switching power supply designed for DIN rail mounting. It delivers a stable 12V DC output with 54W power and 4.5A current, making it ideal for industrial automation, control systems, and security applications. With universal AC input and built-in protections, it ensures reliable operation in demanding environments.

Advantages

Compact design saves space on DIN rail; high efficiency up to 85% reduces energy loss; comprehensive protection features (overload, overvoltage, short circuit) with auto-recovery enhance system safety; wide operating temperature range from -20°C to +70°C ensures performance in harsh conditions.

Suitable for

• Industrial control panels
• Building automation systems
• Security and surveillance equipment
• Telecommunication devices
• LED lighting systems

Key specifications

• Input: 85-264V AC / 120-370V DC, 47-63Hz
• Output: 12V DC, 4.5A, 54W
• Efficiency: 85% typical
• Ripple & Noise: ≤120mVp-p
• Protections: Overload (105-150%), Overvoltage (15-18V), Short circuit – all auto-recovery
• Operating temperature: -20°C to +70°C (derating above +50°C)
• Cooling: Free air convection
• MTBF: >100,000 hours
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the rated output. Suitable for use with TS-35 DIN rails.
