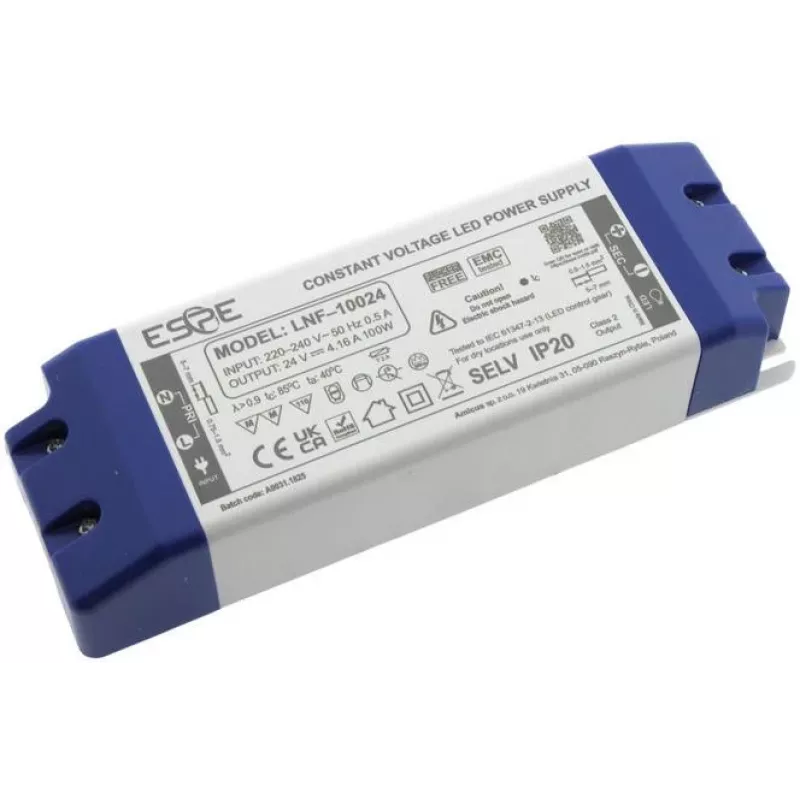

ESPE LNF-10024 LED-schakelvoeding 24V 100W 4,16A IP20

The ESPE LNF-10024 is a high-quality LED switching power supply designed for reliable and efficient power delivery. With an output of 24V DC and 100W (4.16A), it is ideal for powering LED lighting systems and other low-voltage applications. The unit features passive cooling, a perforated metal housing, and protection against overload, short circuit, and over voltage. It operates with an input voltage of 100-240V AC and is certified CE and RoHS.

Advantages

This power supply offers high efficiency (>80%), a compact design, and robust protection features, ensuring long-lasting performance and safety. Its passive cooling makes it silent and maintenance-free.

Suitable for

• LED strip lights and modules
• Signage and display lighting
• Industrial control systems
• Low-voltage DC devices

Key specifications

• Output Voltage: 24V DC
• Output Power: 100W
• Output Current: 4.16A
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• IP Rating: IP20
• Efficiency: >80%
• Cooling: Passive (Convection)
• Housing Material: Perforated Metal
• Operating Temperature: -20°C to +50°C
• Connection: Screw Terminals
• Protection: Overload, Short Circuit, Over Voltage
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the rated load. Suitable for indoor use only (IP20).
