ESYLUX Defensor MD 230° 40 IR PIR-bewegingsmelder 230V IP55 antraciet

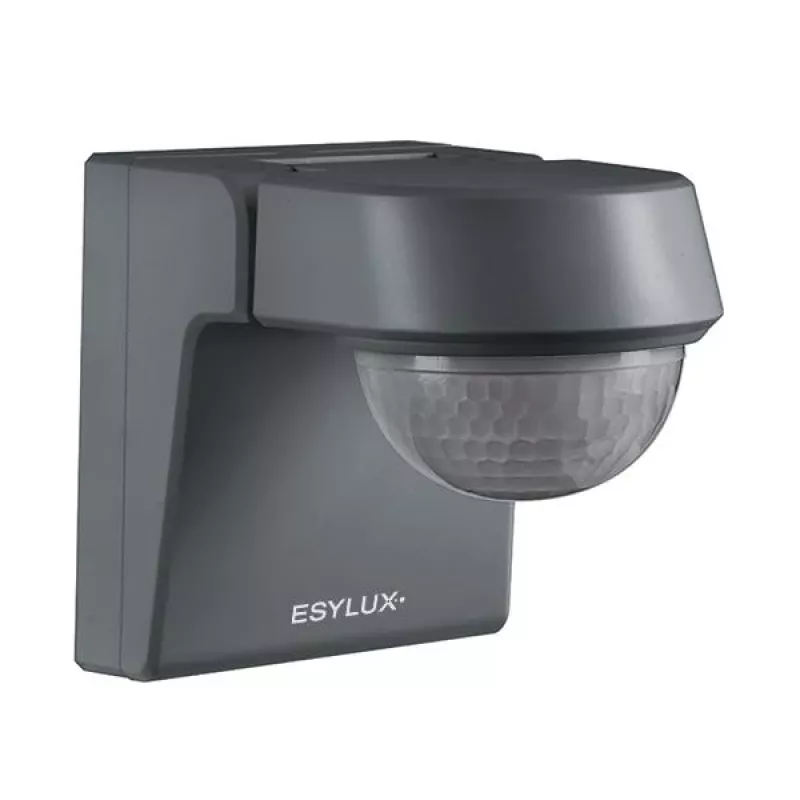

The ESYLUX Defensor MD 230° 40 IR is a high-performance passive infrared (PIR) motion detector designed for reliable presence detection in indoor and outdoor areas. With a wide 230° detection angle and a tangential range of 16 m, it is ideal for corridors, hallways, and large rooms. The robust IP55-rated housing ensures protection against dust and water jets, making it suitable for covered outdoor use. The anthracite color blends seamlessly with modern architectural styles.

Advantages

Energy-efficient standby consumption of only 0.5 W reduces operating costs. The adjustable time delay (10 s to 30 min) and twilight threshold (2-2000 lx) provide flexible automation. Test and teach-in functions simplify commissioning, and remote control capability allows convenient adjustments.

Suitable for

• Indoor and covered outdoor areas such as corridors, stairwells, entrance areas, and terraces
• Automatic lighting control in commercial and residential buildings
• Integration into building management systems via relay switching

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 230°
• Detection range tangential: 16 m / frontal: 4 m
• Mounting type: Wall mounting
• Recommended installation height: 2 - 2.5 m
• Ingress protection: IP55
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity: 2300 W (resistive) / 1150 VA (inductive)
• Time setting: 10 s - 30 min, pulse
• Twilight setting: 2 - 2000 lx
• Ambient temperature: -25 °C to +50 °C
• Colour: Anthracite
• Material: UV-stabilised polycarbonate
• Standby power consumption: approx. 0.5 W
• Switching output: Relay
• Special functions: Test function, Teach-in function, Remote control capability

Recommendations

For optimal performance, mount the detector at a height of 2-2.5 m and avoid direct sunlight or heat sources. Use the remote control (optional) for easy parameter adjustment after installation.
