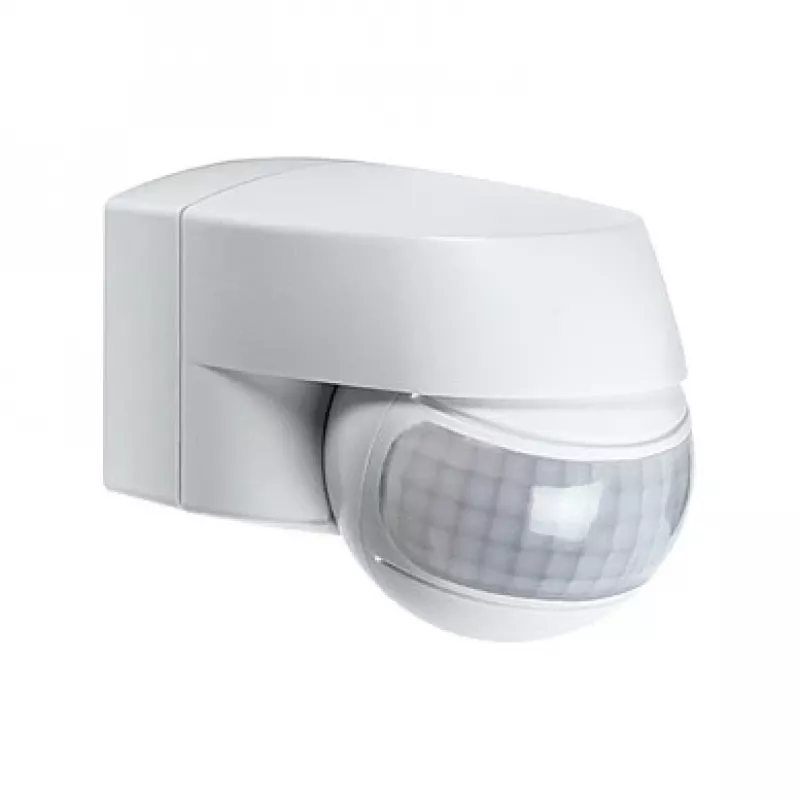

ESYLUX MD 200 bedrade muurgemonteerde PIR-bewegingsmelder 12m bereik wit IP44 2000 lux

The ESYLUX MD 200 is a high-quality passive infrared (PIR) motion detector designed for reliable presence and movement detection in both indoor and outdoor applications. With a detection range of up to 12 meters and a wide 200° detection angle, it provides comprehensive coverage for residential, commercial, and industrial environments. The detector features adjustable light sensitivity from 5 to 2000 lux and an adjustable time delay from 10 seconds to 30 minutes, offering flexible control of connected lighting or other loads. Its robust IP44-rated housing protects against splashing water and dust, making it suitable for covered outdoor areas. The wired connection via screw terminals ensures a stable and secure installation.

Advantages

Reliable PIR detection technology with a 12 m range and 200° angle ensures minimal blind spots. Adjustable light sensitivity and time settings allow customization to specific needs. IP44 protection class guarantees durability in challenging environments. UV-stabilised polycarbonate housing resists weathering and discoloration. Low power consumption of approx. 0.5 W makes it energy-efficient.

Suitable for

• Automatic lighting control in corridors, stairwells, and entrance areas
• Presence detection in offices, meeting rooms, and storage areas
• Outdoor use under eaves, in covered walkways, or carports
• Integration into building management systems for energy savings

Key specifications

• Detection Technology: Passive Infrared (PIR)
• Mounting Type: Wall-mounted
• Colour: White
• Protection Class: IP44
• Detection Angle: 200°
• Detection Range: 12 m (at 2.5 m mounting height)
• Light Sensitivity: 5 - 2000 Lux (adjustable)
• Time Setting: 10 s - 30 min (adjustable)
• Operating Voltage: 24 V DC
• Output Type: Relay (1 NO contact)
• Max Switching Current: 2 A (at 24 V DC)
• Max Switching Power: 48 W (at 24 V DC)
• Recommended Installation Height: 2.0 - 2.5 m
• Operating Temperature Range: -25 °C to +50 °C
• Material: UV-stabilised polycarbonate
• Power Consumption: approx. 0.5 W
• Connection Type: Wired (screw terminals)
• Application Area: Indoor and Outdoor

Recommendations

For optimal performance, install the detector at the recommended height of 2.0 to 2.5 m and avoid direct exposure to heat sources or air conditioning vents. Use with compatible 24 V DC power supply and ensure proper wiring according to local regulations.
